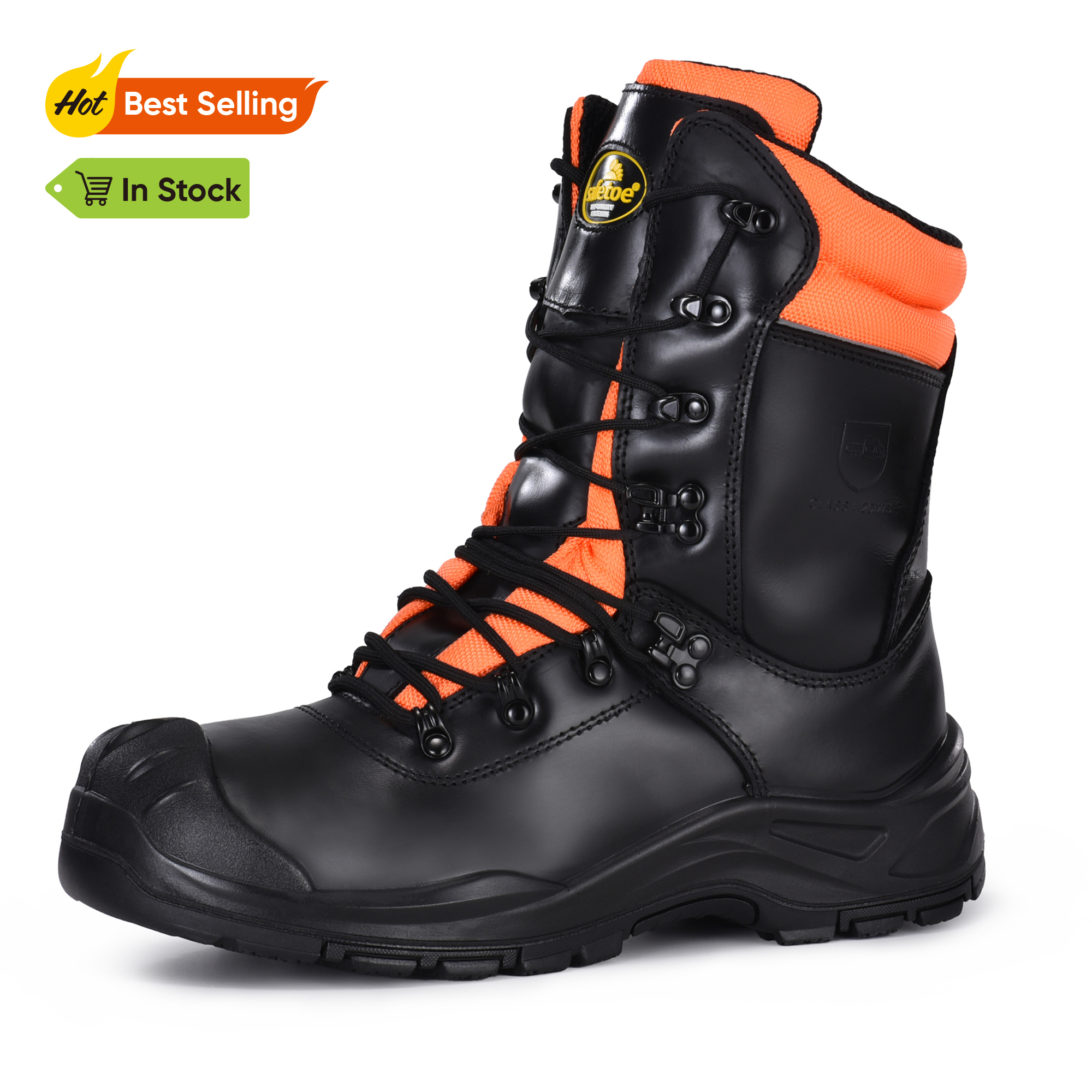

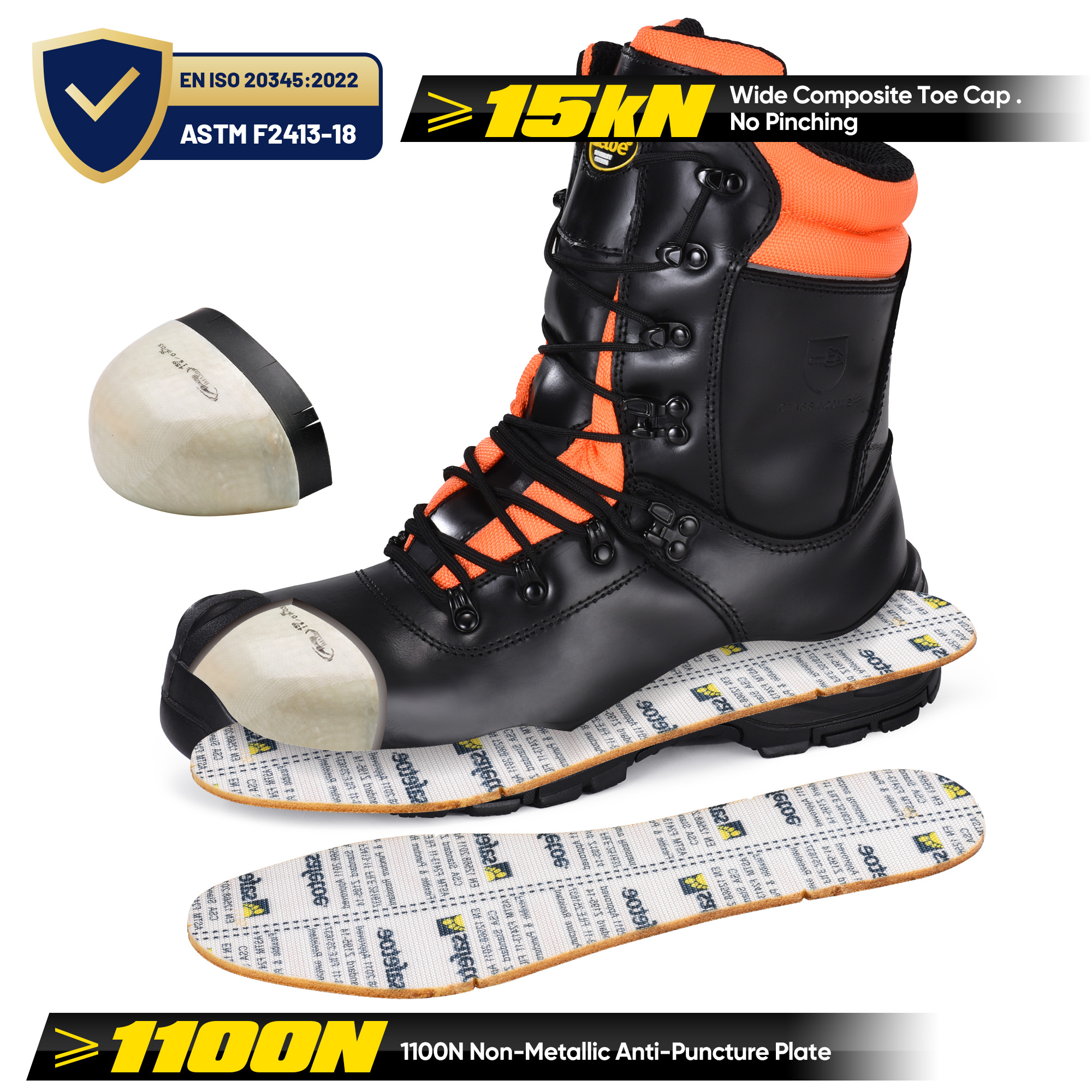

Heavy Duty Chainsaw Logger Safety Work Boots LMZ9051088

Size:
Availability:
Quantity:
1. Upper :

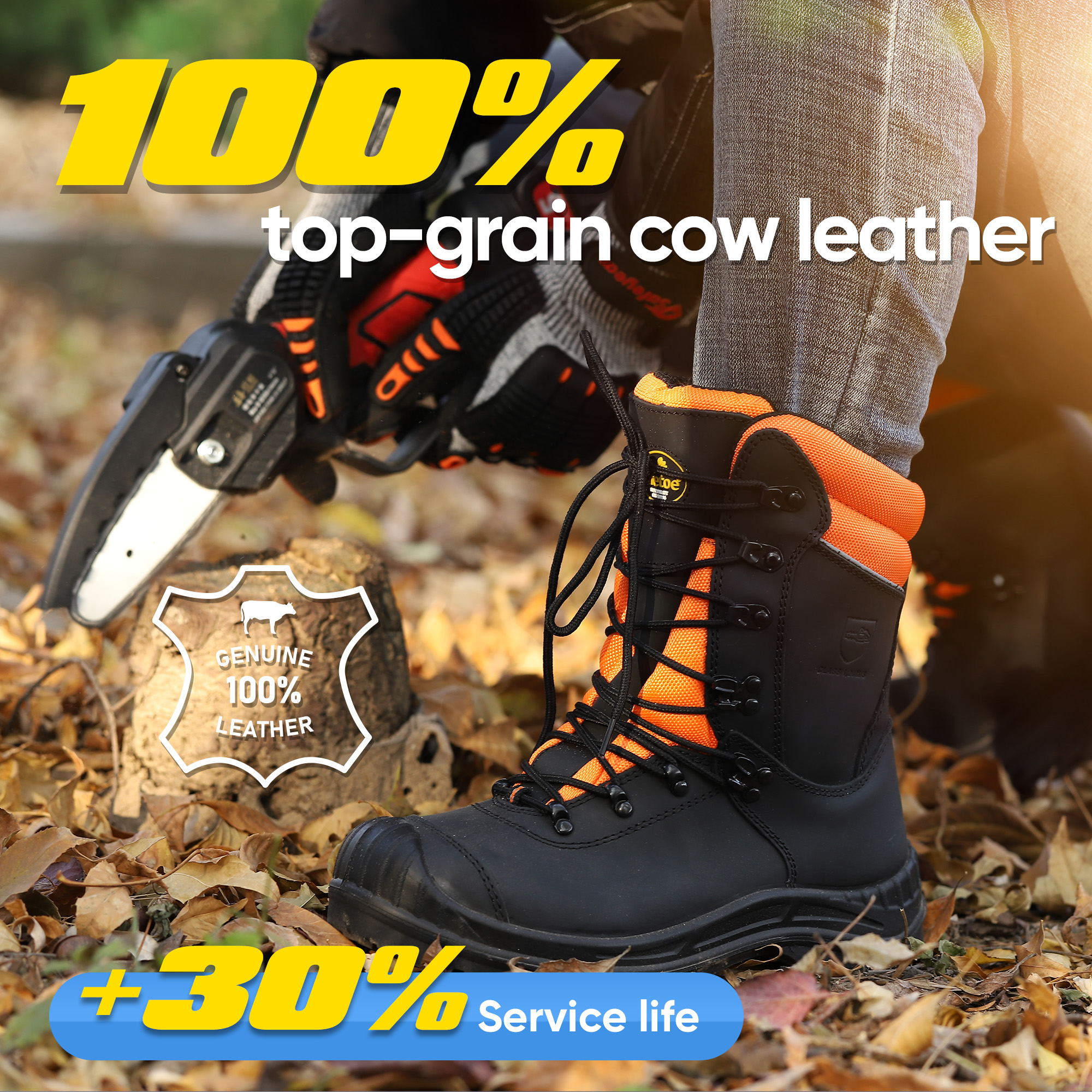

Full Grain Smooth Cow Leather

2. Lining :

BactiVoid™ Breathable Sandwich Mesh

3. Inner :

Chainsaw Protection Fabric (20m/s)

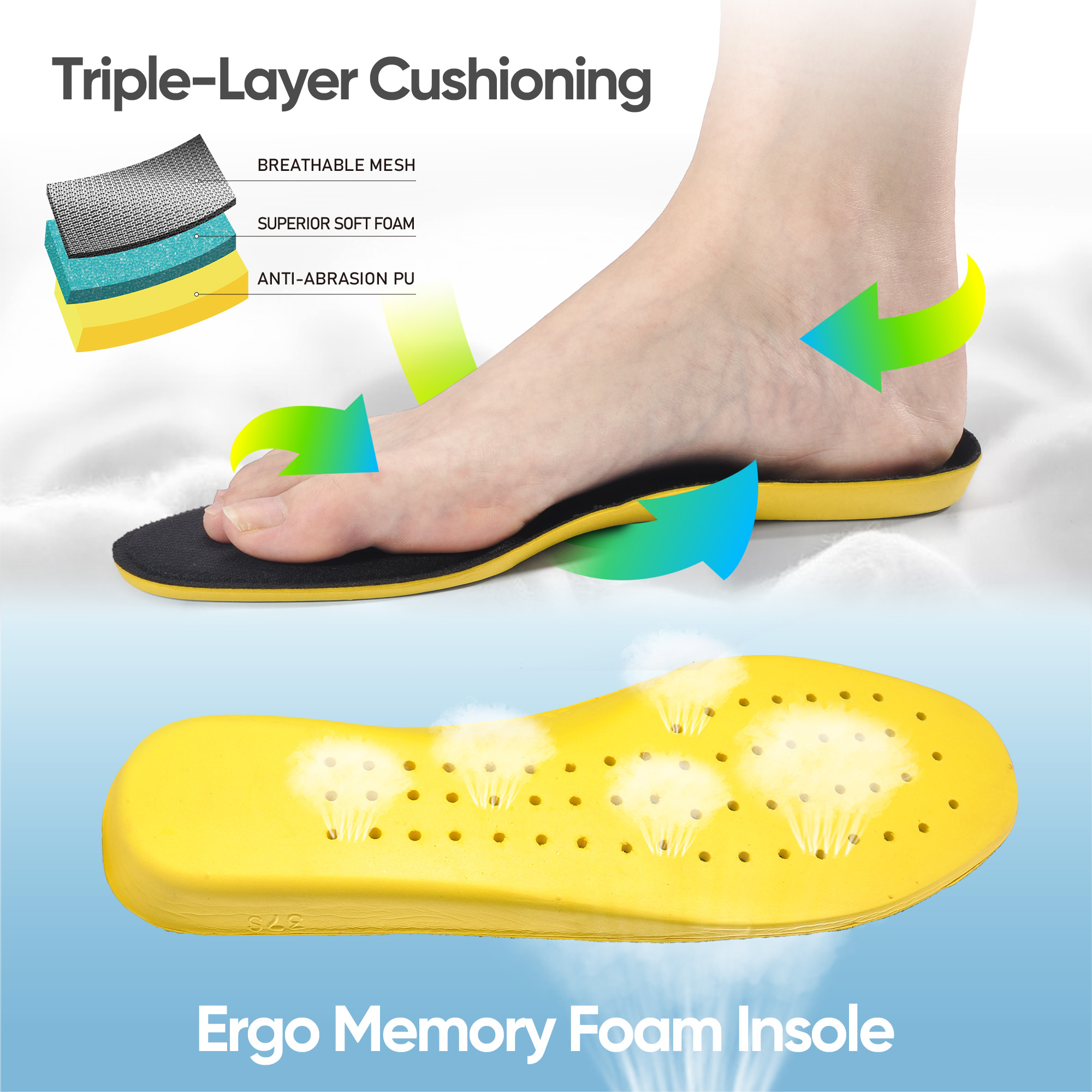

4. Insole :

Super Memory Foam Insoles

5. Outsole :

QuantumHold™ PU/Nitrile Rubber

6. Toecap :

VortiGuard™ Steel Toecap

7. Penetration :

VortiGuard™ Kevlar Midsole Plate

8. Size : EU 37-47#, UK 3-13#, US 4-14#
9. Standard:

CE EN ISO 20345:2022 S3 SR & CE EN ISO 17249:2013 Class 1

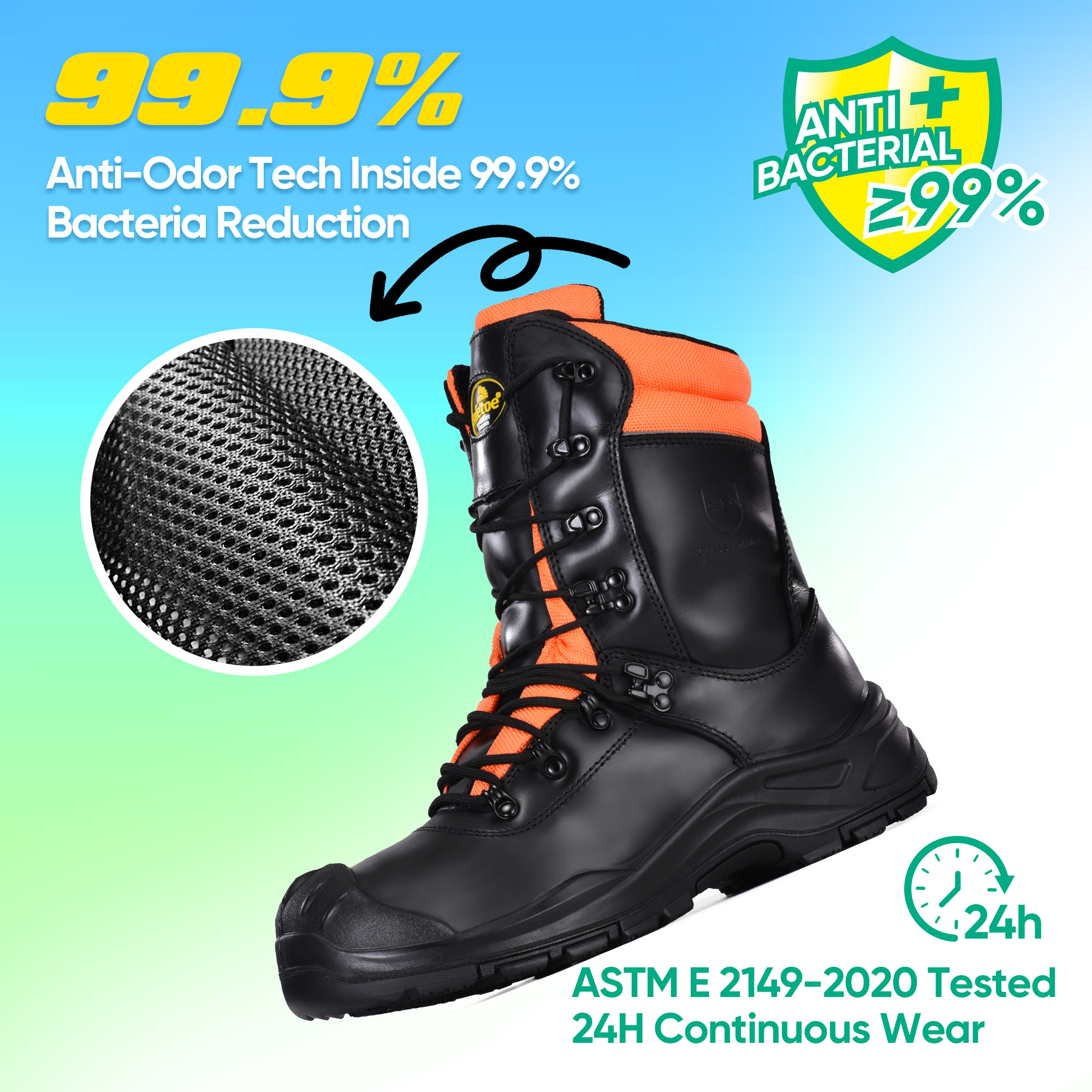

ASTM E 2149-2020 Approved Anti-bacteria Lining & Insole (Odor Resistant)

10. Application :

Forest Work, Carpentry, Wood-Cutting, Wood-worker, Logger Worker, Chainsaw Worker etc

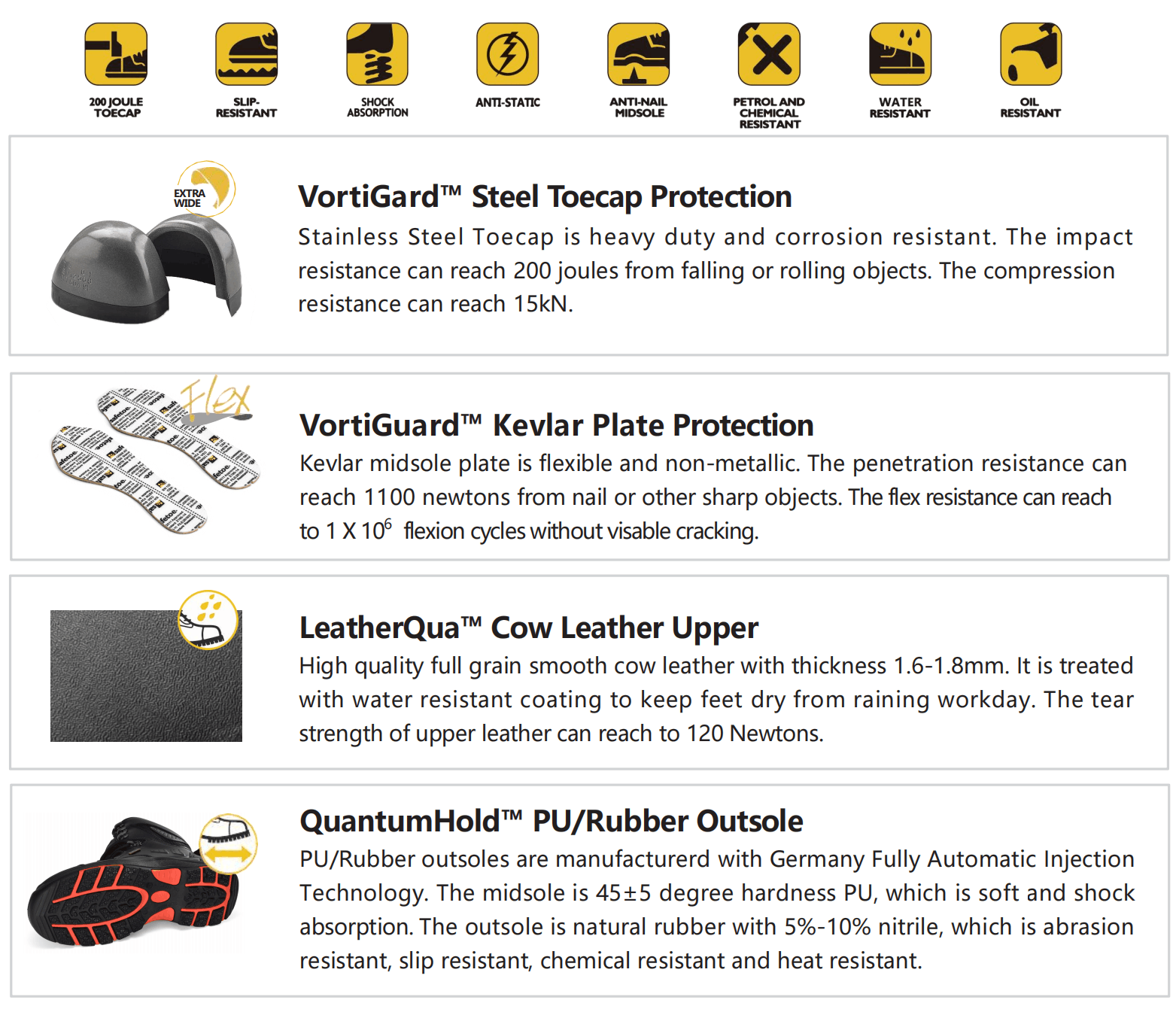

数据


Upper, Lining & Bonding Strength Test Result Result
Leather Tear Strength ≥ 120.0 Newtons
Leather Tensile Properties ≥ 15.0 N/mm²
Lining Tear Strength ≥ 15.0 N/mm
Bonding Strength ≥ 4.0 N/mm
√ Protection with Steel Toecap (200 Joules) Result
Impact Resistance: Impact Energy: 200 ± 4 Joules, Internal Height Clearence ≥ 14mm      Compression Resistance: Compression Force: (15 ± 0.1) KN, Internal Height Clearence ≥ 14mm PASS
√ Penetration Resistance (1100 N)
Result
Penetration Resistance Force ≥ 1100 N PASS

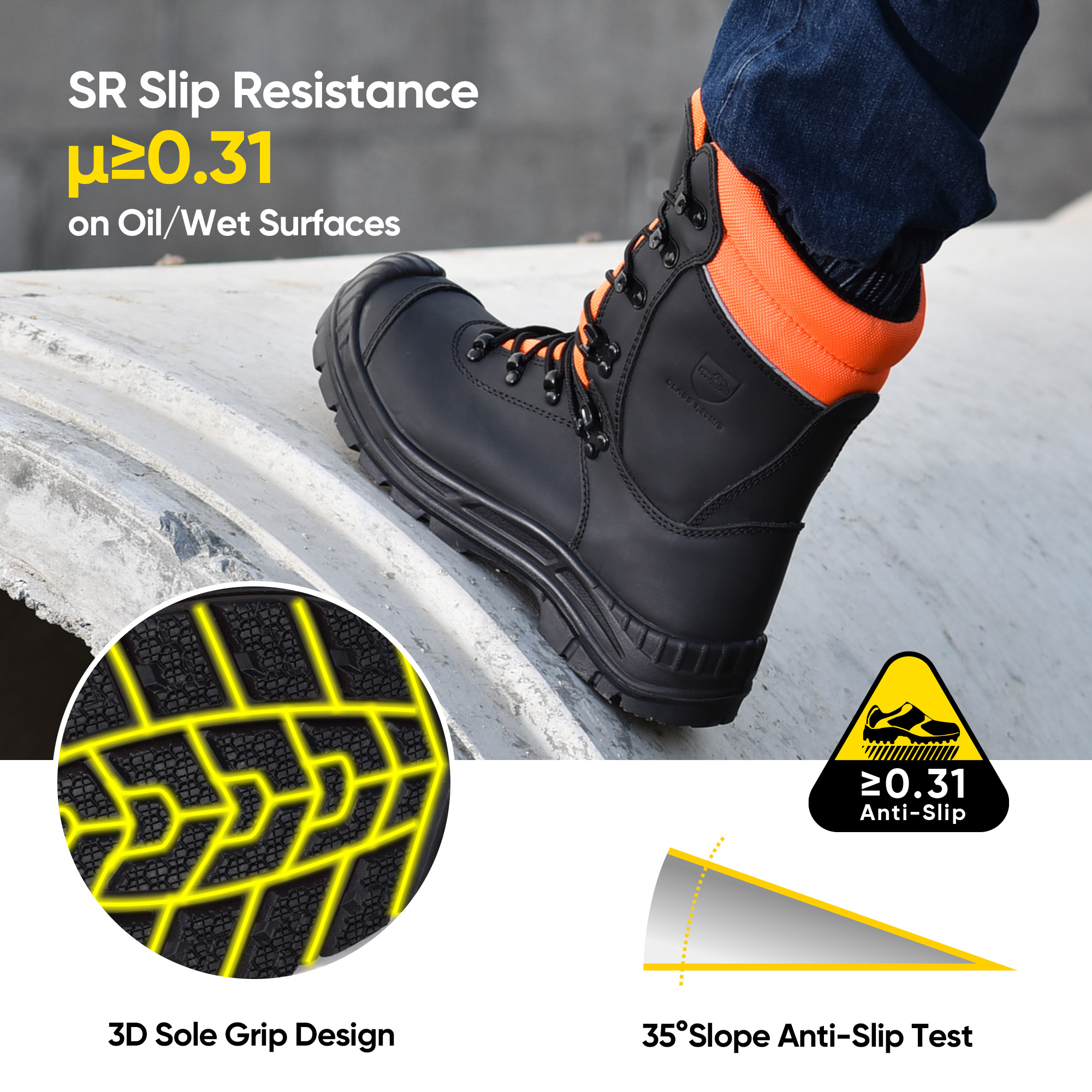

√ Protection With Slip Resistant (SR) Result

Test Requirement : Forward Heel Slip ≥0.31 ( Test methordL ISO 13287:2019)

                                       Backward Forepart Slip ≥0.36  ( Test methordL ISO 13287:2019)

PASS

Standards : EN ISO 20345:2022(5.3.5) ,  Test floor: Ceramic tile, Lubricant: Sodium lauryl sulphat


√ Protection With Anti-Static

Result

Test Requirement : Anti-static 100KΩ-1000MΩ, Test Voltage: 100±2 V DC, Test Period: 1 Minut

PASS

Standards :  EN ISO 20345:2022 (6.2.2.2)    Dry Humility (30±5) & Wet Humility (85±5)


√ Protection Resistant to Fuel Oil Result
Test Requirement : Change in Volume and Change in Hardness (Outsole) is No More Than +12%(*) PASS

Standards :  EN ISO 20345:2022  (6.4.2)



√ Sole Bonding Strength Test


EN ISO 20345:2022, 5.3 (Between Upper & Sole)
• Average Test Result 5.8±5 (N/mm)

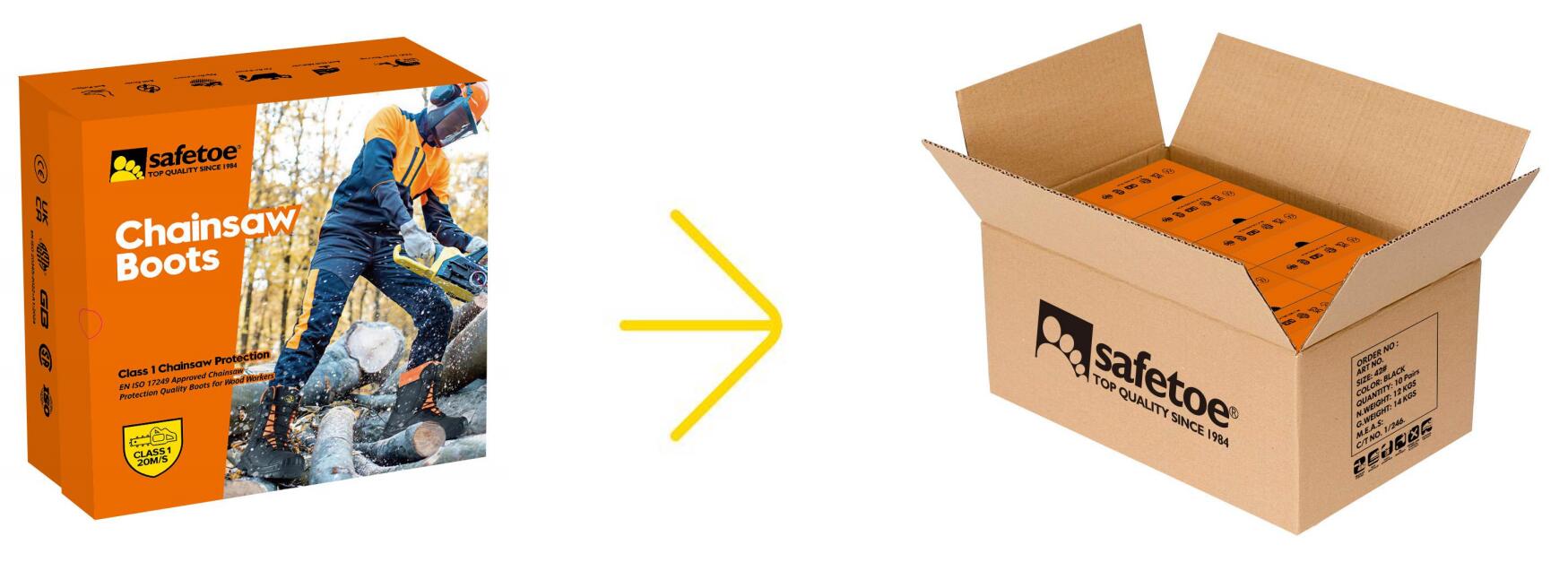

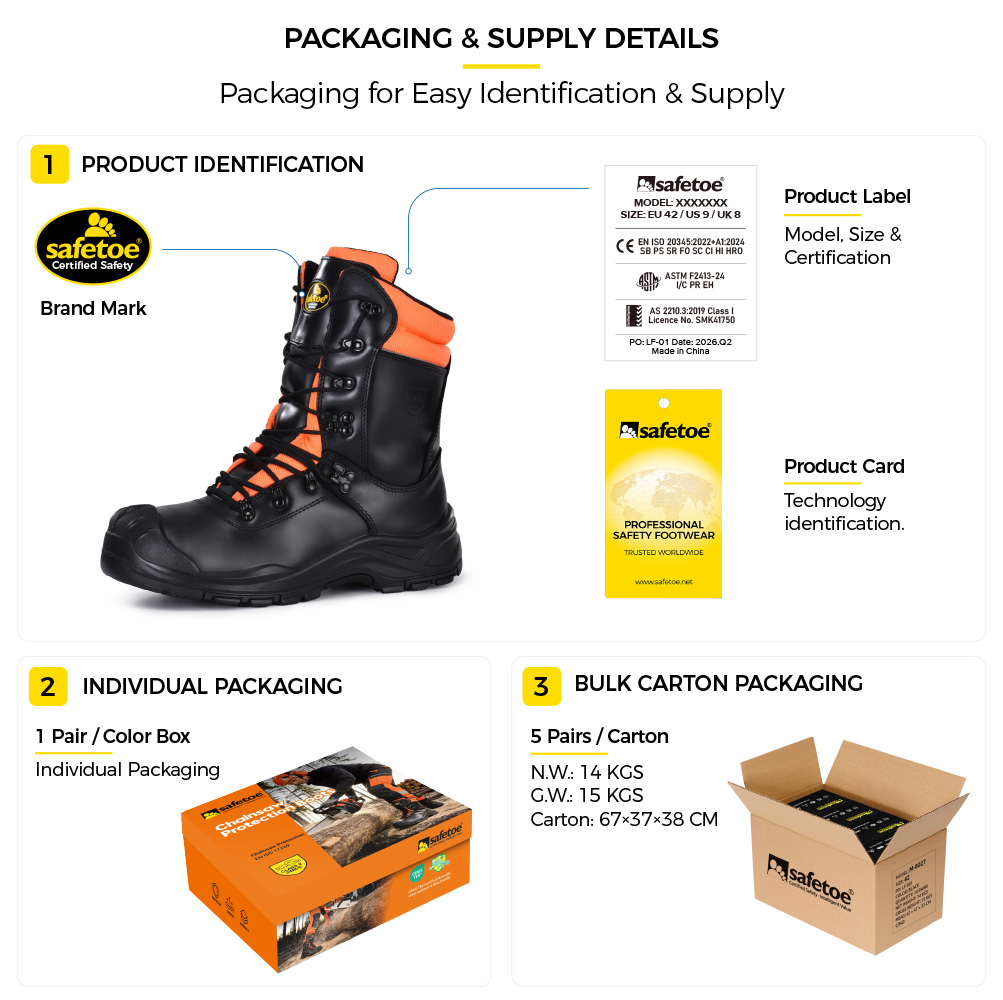

SAFETOE Standard Package Instruction (Average 42# for Reference)
Shoes Weight : 1.5-1.6 KGS /Pair  Carton Weight : 17-18 KGS /Carton
1 Pair / Color Box , Dimensions : 32×30×12CM 10 Pair / Carton , Dimensions : 62×62×33CM

3. 伐木靴鞋盒.

User Instructions:

1.) RECOMMENDED TO USE : Construction, Logistics, Mechanics, Glasses Installation, Factory Workshop, Farming, Garden, Garage etc.

2.) LIMITATION TO USE: It is very important that footwear selected must be suitable for the right workplaces. The protection against risks or hazards which are not mentioned in this document is not warranted.

3.) FITTING & SIZE: All footwear are marked with standard size on tongue label. Some are with different size comparation, such as EU size, UK size, US size etc. Please wear footwear in a suitable size Footwear which are too loose or too tight may not provide optimum level of protection.

4.) STORAGE: Keep the footwear in its original packaging, under ordinary temperature, non-humidity conditions and in clean, covered and ventilated premises.

5.) CLEANING: Clean footwear regularly by high quality cleaning treatments recommended as suitable for the purpose. Don't use caustic or corrosive cleaning agents.


LMZ-01画板 2画板 3画板 4画板 5通用-鞋垫
