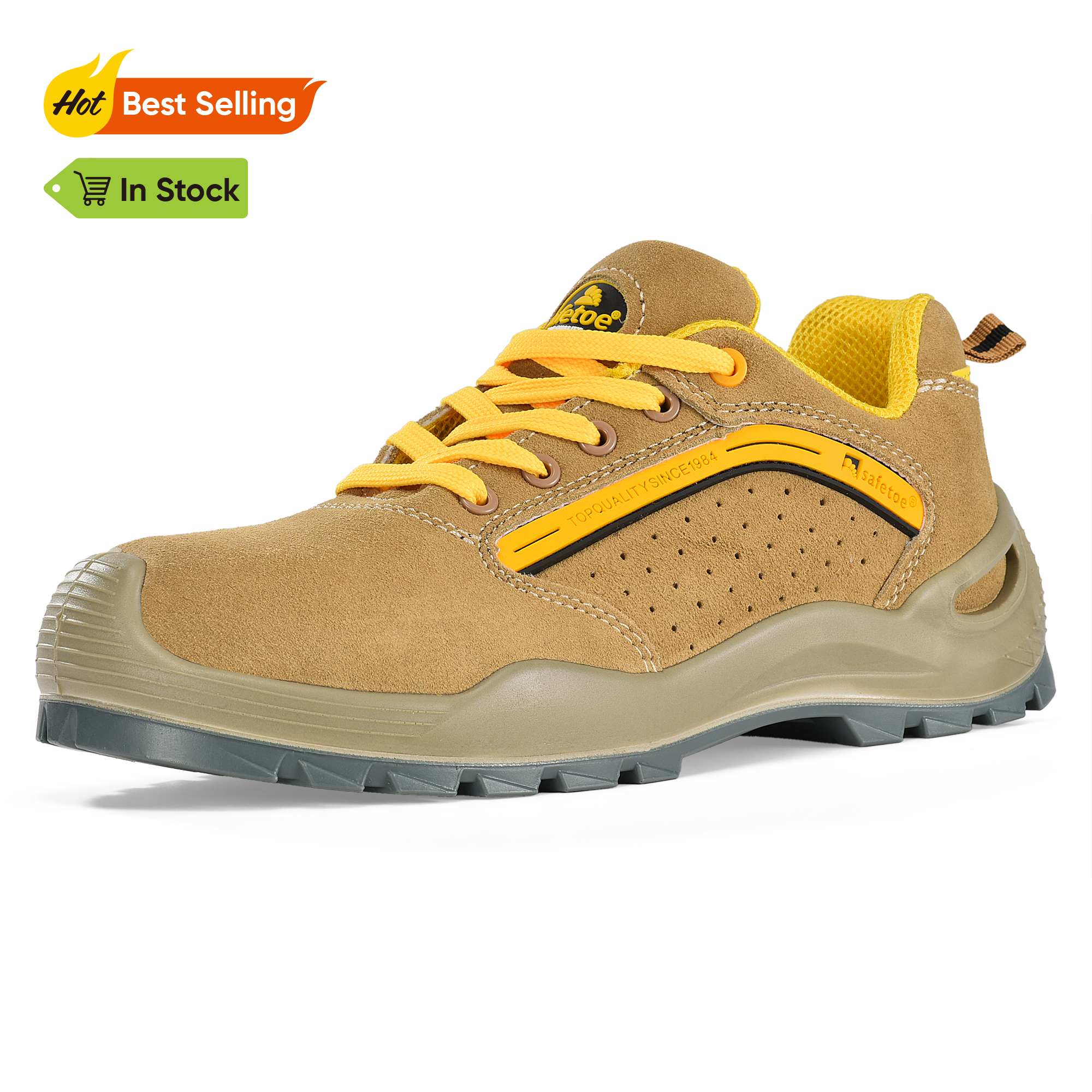

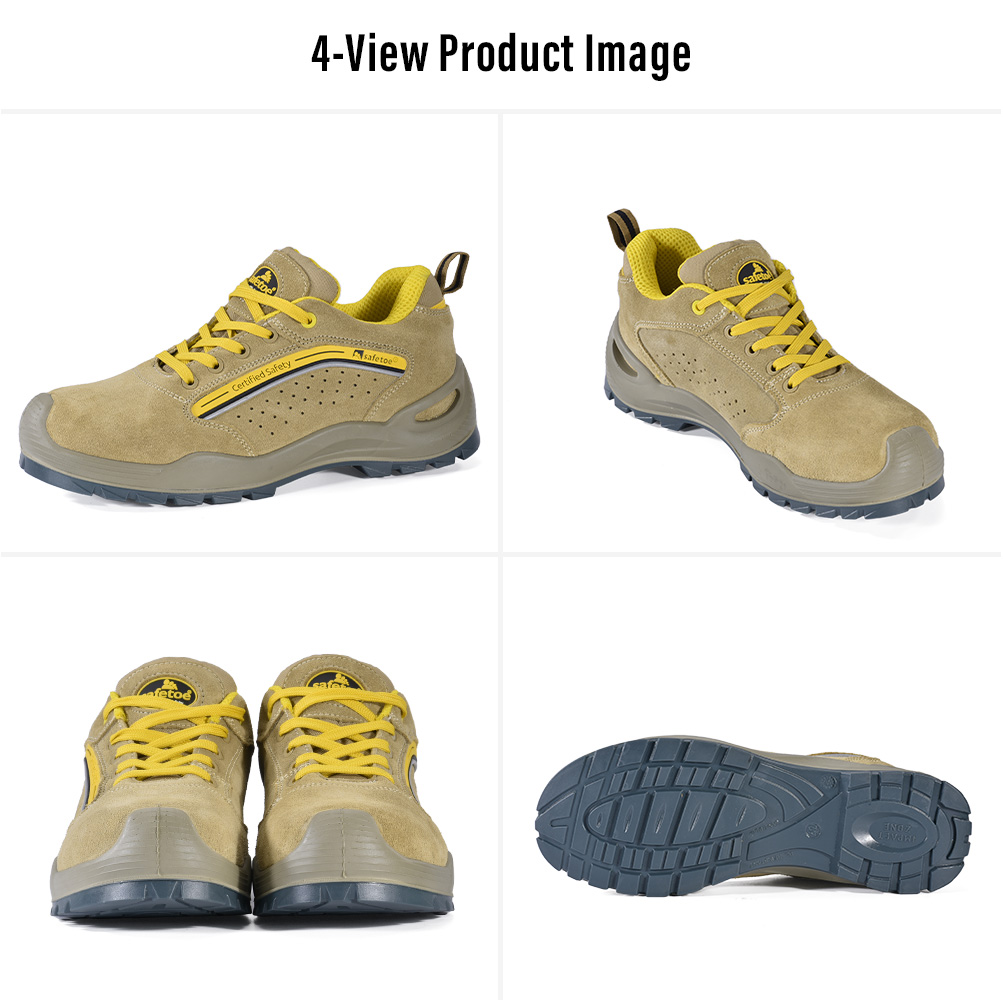

Breathable Summer Safety Shoes L-7296

Size:
Availability:
Quantity:
1. Upper : High Quality Cow Suede Leather
2. Lining : Breathable Sandwich Air Mesh

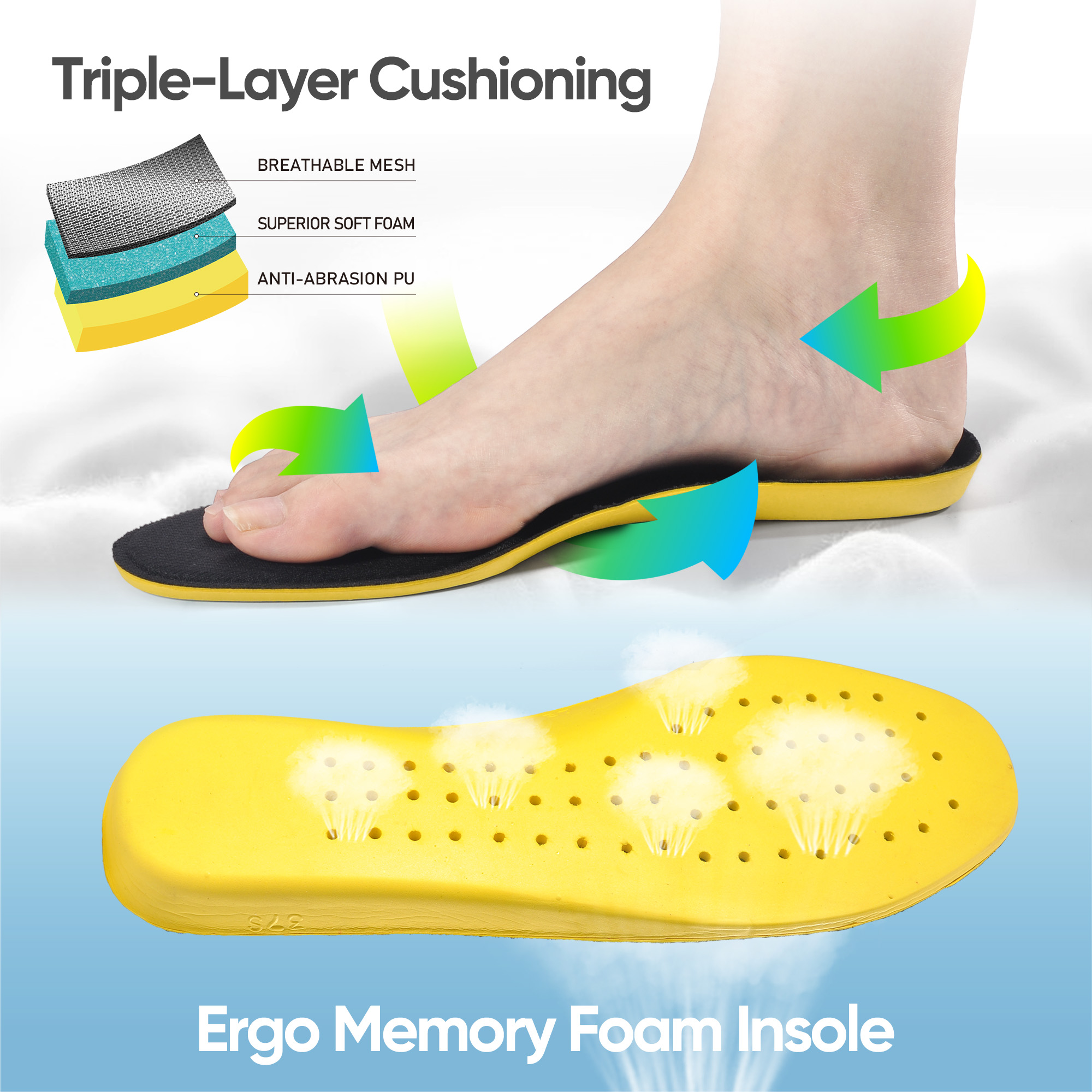

3. Insole : Comfortable EVA Coated Mesh
4. Outsole : Heavy Duty PU/PU Dual Density
5. Toecap : Steel Toecap
6. Penetration : Steel Midsole Plate
7. Size : EU 37-47#, UK 3-13#, US 4-14#
8. Standard:  CE EN ISO 20345:2011 S1P SRC
9. Application : Construction, Logistics, Mechanics, Glasses Installation, Factory Workshop, Garage etc

310


Upper, Lining & Bonding Strength Test Result Result
Leather Tear Strength ≥ 120.0 Newtons
Leather Tensile Properties ≥ 15.0 N/mm²
Lining Tear Strength ≥ 15.0 N/mm
Bonding Strength ≥ 4.0 N/mm

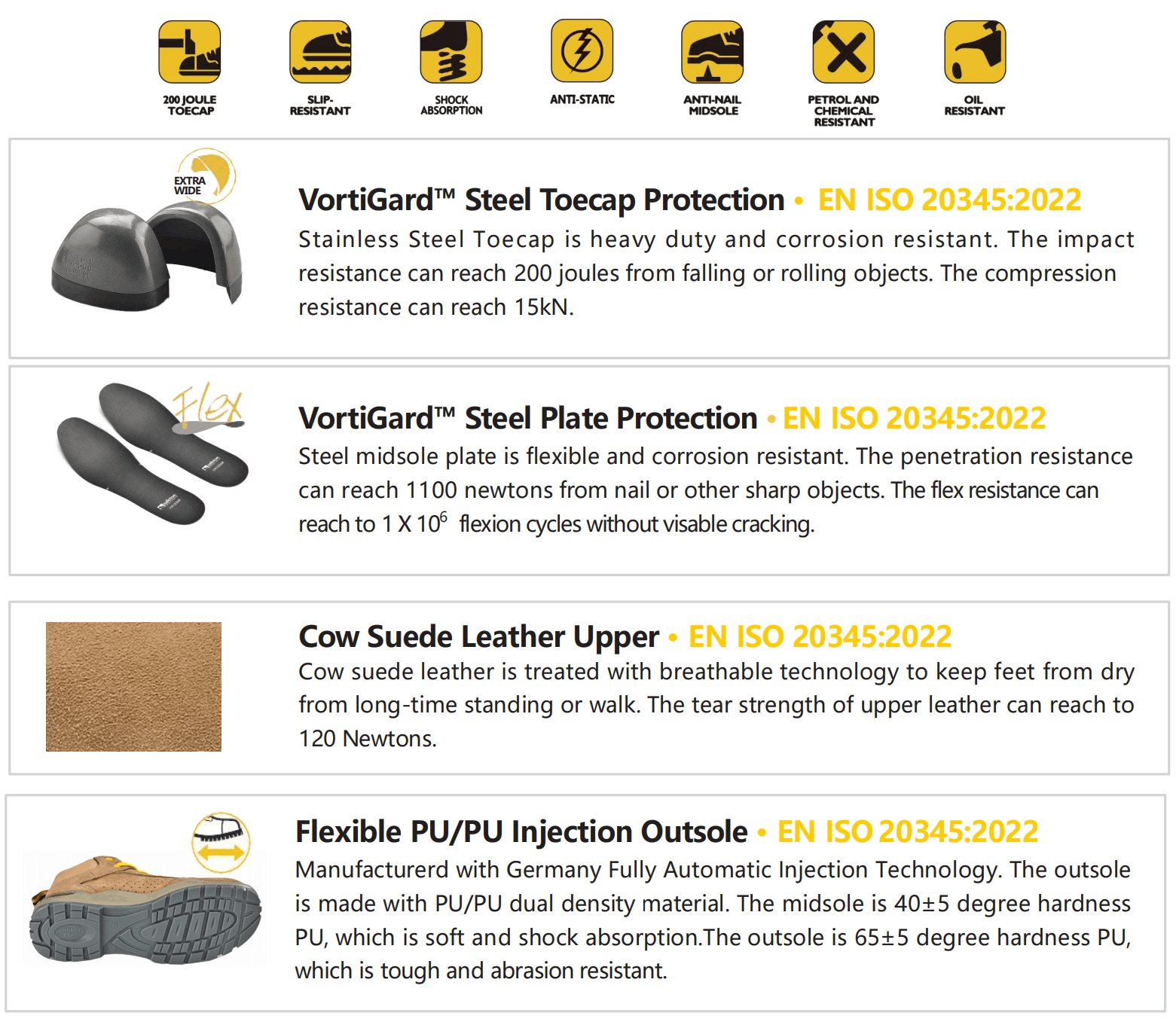

√ Protection with Steel Toecap (200 Joules) Result
Impact Resistance: Impact Energy: 200 ± 4 Joules, Internal Height Clearence ≥ 14mm      Compression Resistance: Compression Force: (15 ± 0.1) KN, Internal Height Clearence ≥ 14mm PASS
√ Penetration Resistance (1100 N)
Result
Penetration Resistance Force ≥ 1100 N PASS
√ Protection With Slip Resistant (SRC) Result

Test Requirement : SRA (Eurotile 2+Nal S) Forward Heel Slip ≥0.28 & Forward Flat Slip: ≥0.32

SRB (Steel Floor+Glycerine) Forward Heel Slip ≥0.13 & Forward Flat Slip: ≥0.18

PASS
Standards : EN ISO20344:2011(5.11) , SRC Means both SRA & SRB requirements are fulfilled.
√ Protection With Anti-Static

Result

Test Requirement : Anti-static 100KΩ-1000MΩ, Test Voltage: 100±2 V DC, Test Period: 1 Minute PASS
Standards : ENISO 20344:2011(5.10) Dry Humility (30±5) & Wet Humility (85±5)
√ Protection Resistant to Fuel Oil Result
Test Requirement : Change in Volume and Change in Hardness (Outsole) is No More Than +12%(*) PASS
Standards : ENISO 20344:2011(8.6.1)
√ Sole Bonding Strength Test


• EN ISO 20344:2011, 5.2 (Between Upper & Sole)
• Average Test Result 5.8±5 (N/mm)

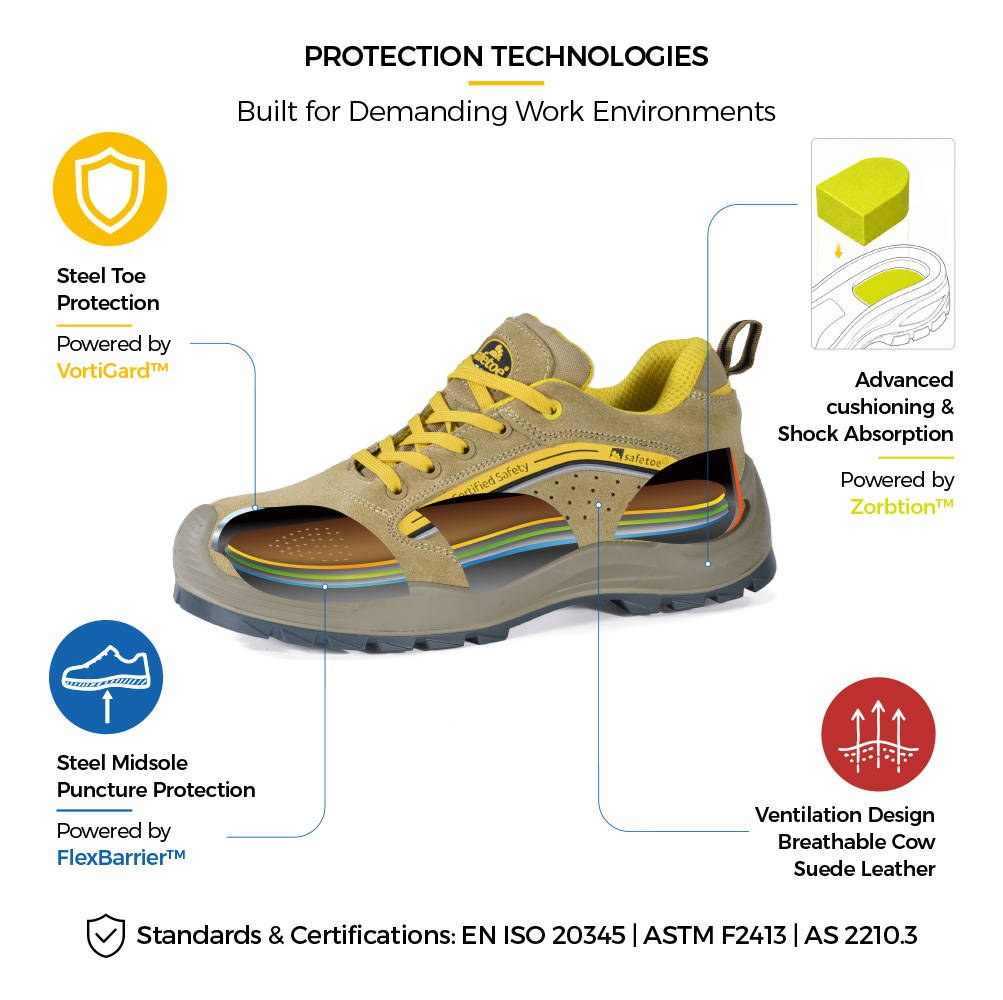

4.7296-解剖图 CE

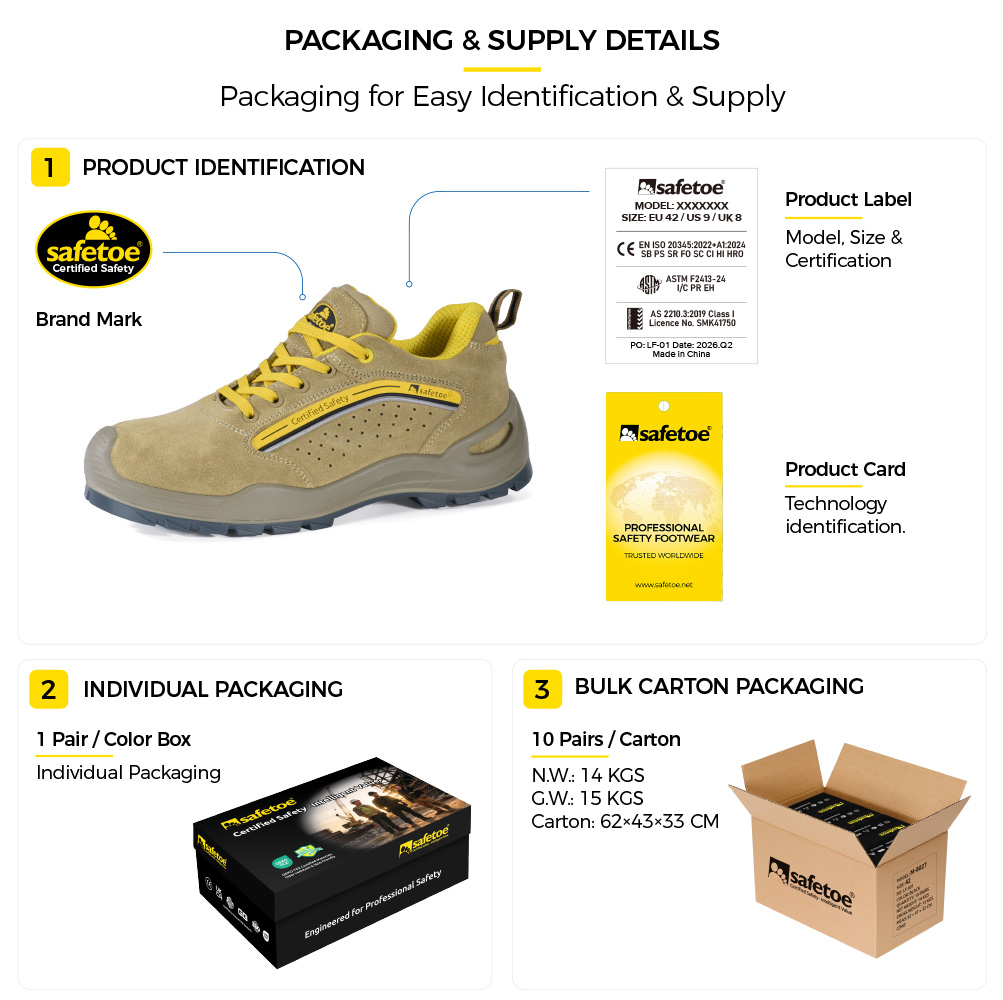

SAFETOE Standard Package Instruction (Average 42# for Reference)
Shoes Weight : 1.1-1.2 KGS /Pair  Carton Weight : 12-13 KGS /Carton
1 Pair / Color Box , Dimensions : 32×21×12CM 10 Pair / Carton , Dimensions : 62×43×33CM

微信截图_20220215105847

User Instructions:

1.) RECOMMENDED TO USE : Construction, Logistics, Mechanics, Glasses Installation, Factory Workshop, Farming, Garden, Garage etc.

2.) LIMITATION TO USE: It is very important that footwear selected must be suitable for the right workplaces. The protection against risks or hazards which are not mentioned in this document is not warranted.

3.) FITTING & SIZE: All footwear are marked with standard size on tongue label. Some are with different size comparation, such as EU size, UK size, US size etc. Please wear footwear in a suitable size Footwear which are too loose or too tight may not provide optimum level of protection.

4.) STORAGE: Keep the footwear in its original packaging, under ordinary temperature, non-humidity conditions and in clean, covered and ventilated premises.

5.) CLEANING: Clean footwear regularly by high quality cleaning treatments recommended as suitable for the purpose. Don't use caustic or corrosive cleaning agents.


L-7296-2.04.鞋底防滑3-钢头6-点赞图6. 7296-使用场景图
