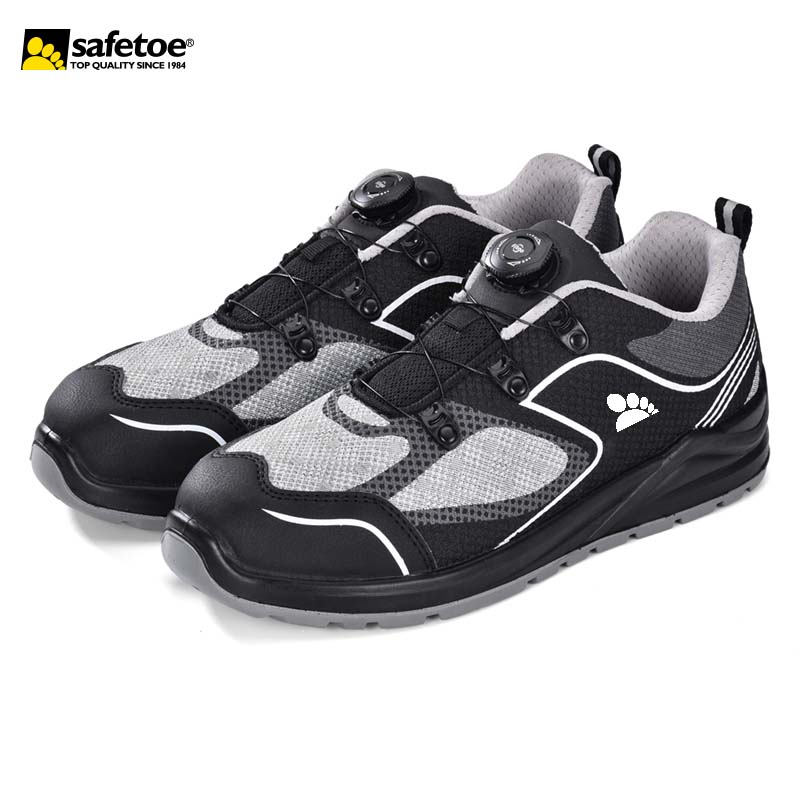

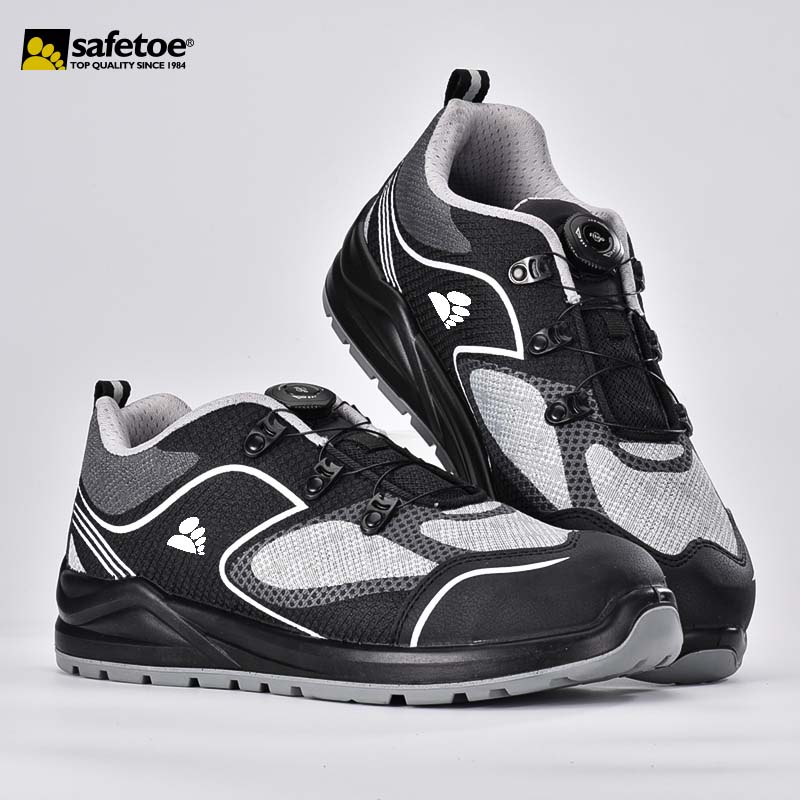

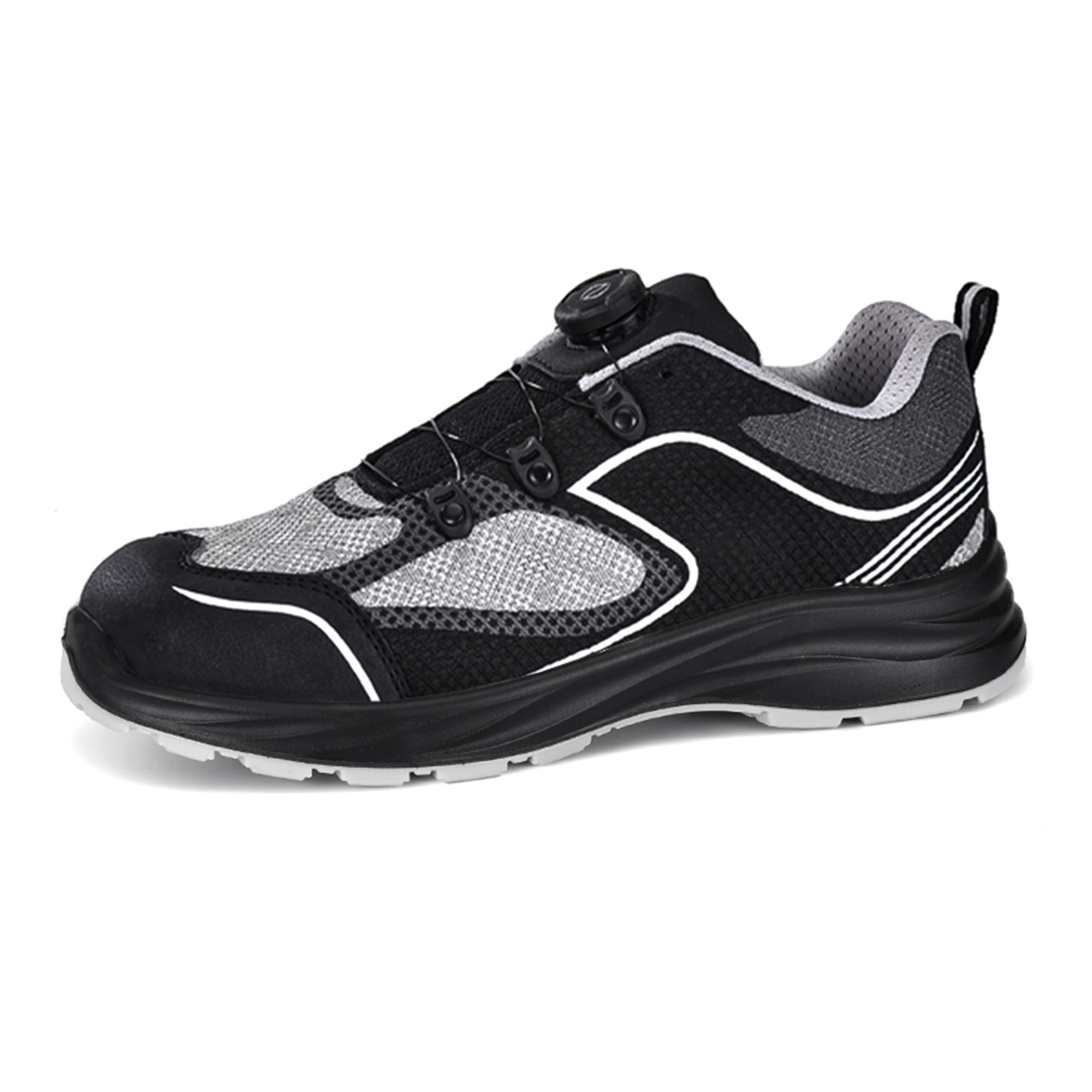

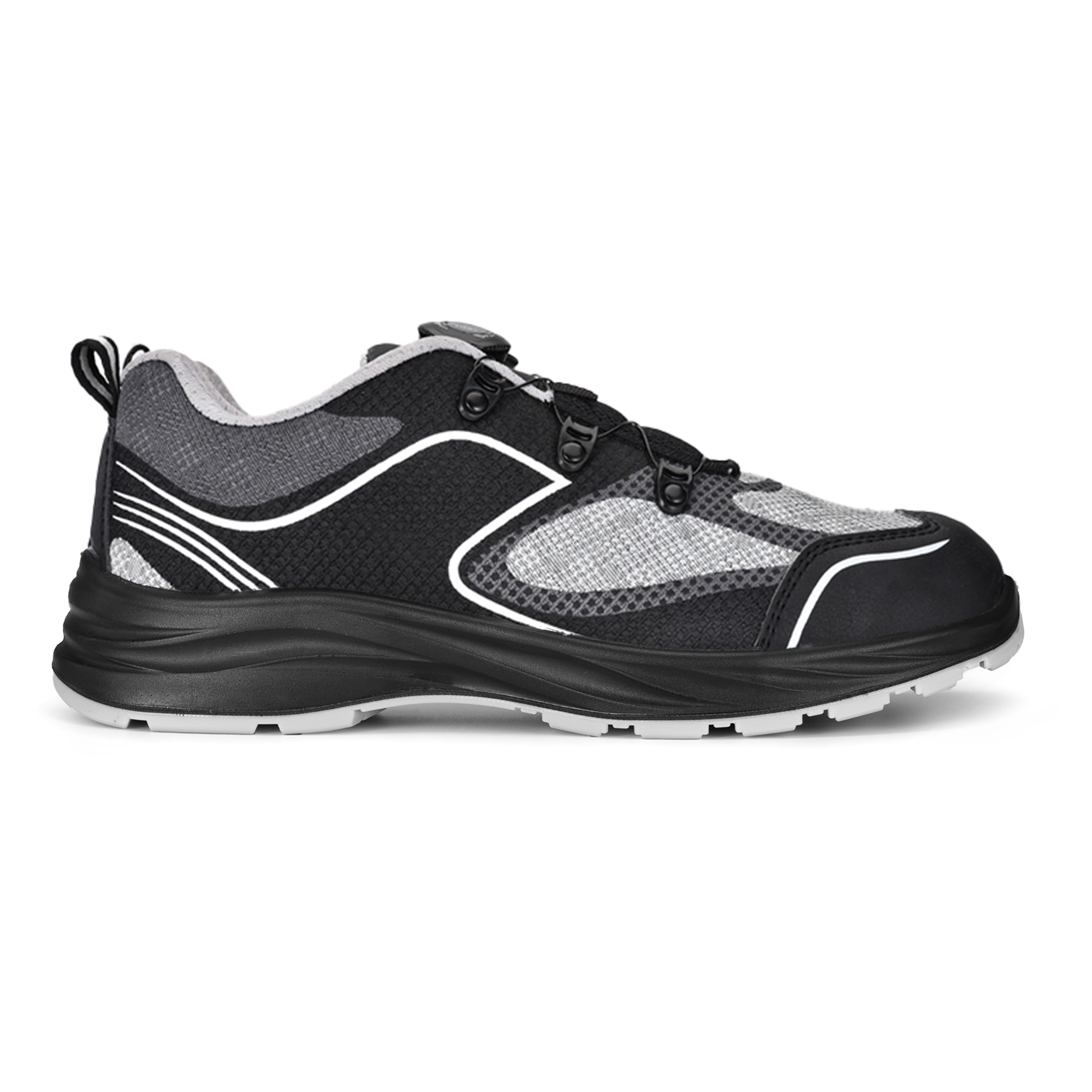

Sports Low Cut S1P Safety Shoes L-7501 TLS

Size:
Availability:
Quantity:
1. Upper :

Durable 3D Weaving Nylon Fabric

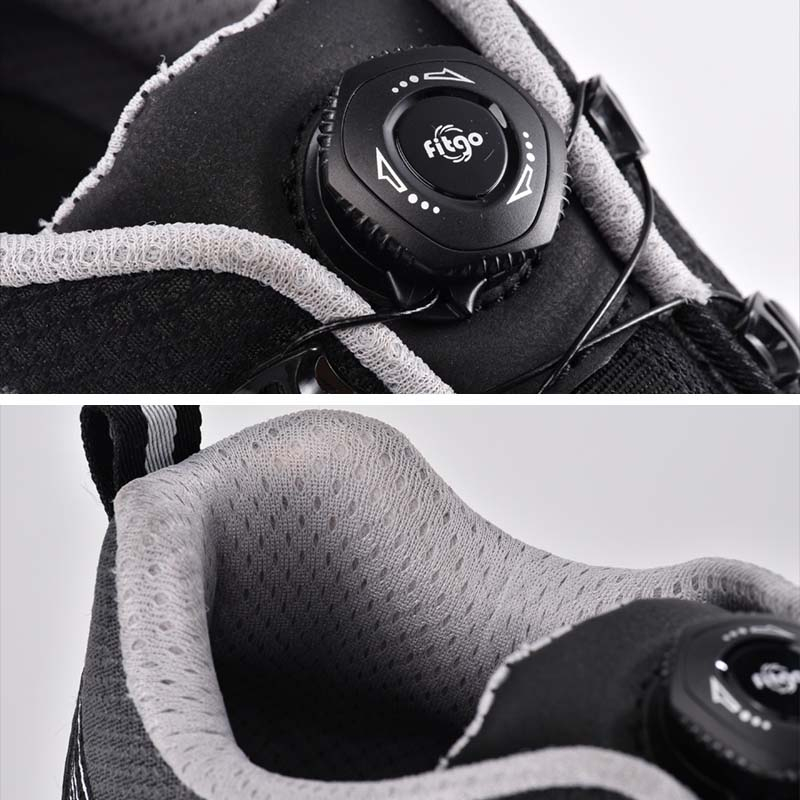

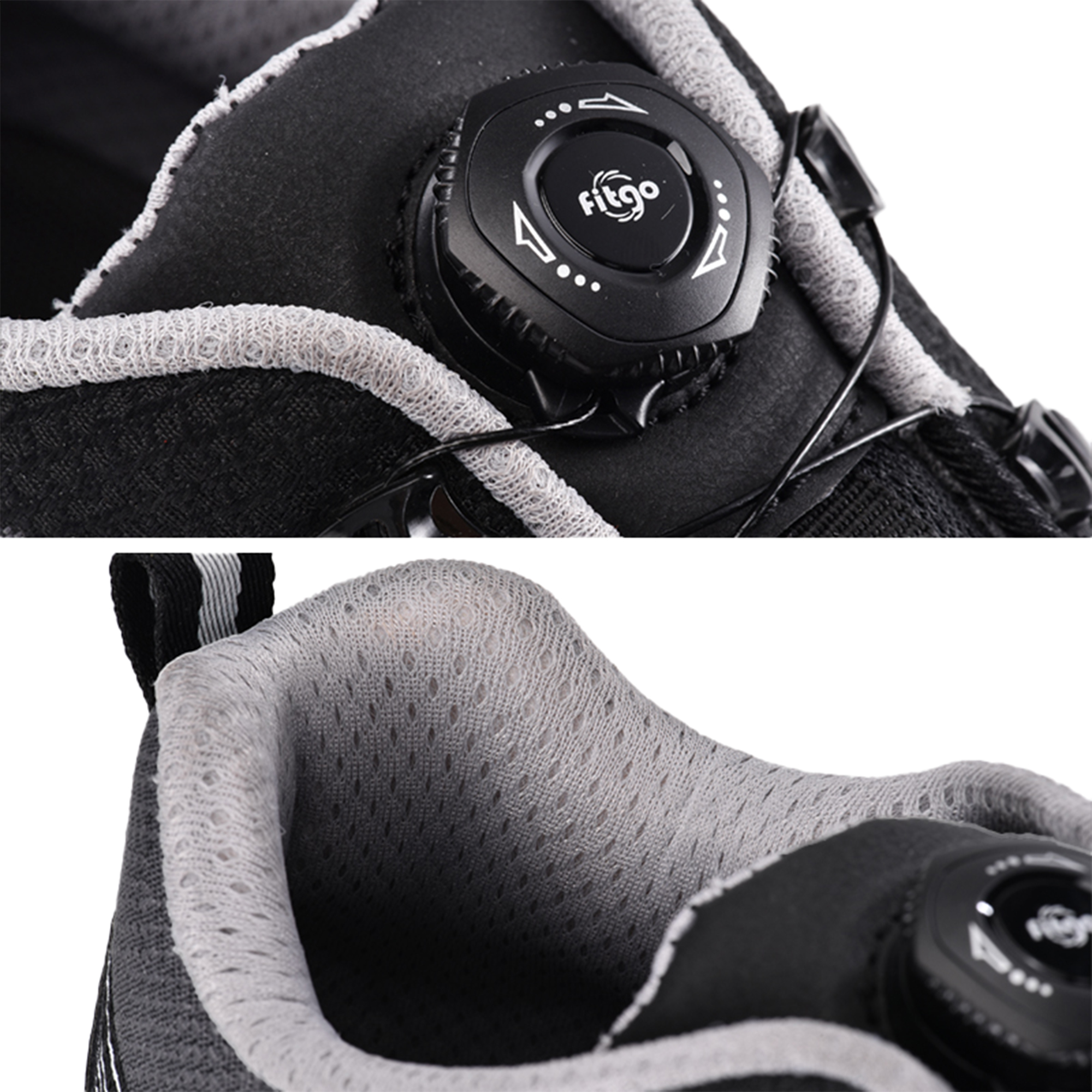

2. TLS

Twist Lock System for Fast Tighten & Release

3. Lining :

BactiVoid™ Breathable Sandwich Air Mesh

4. Insole :

Anti-Fatigue Memory Foam Insoles

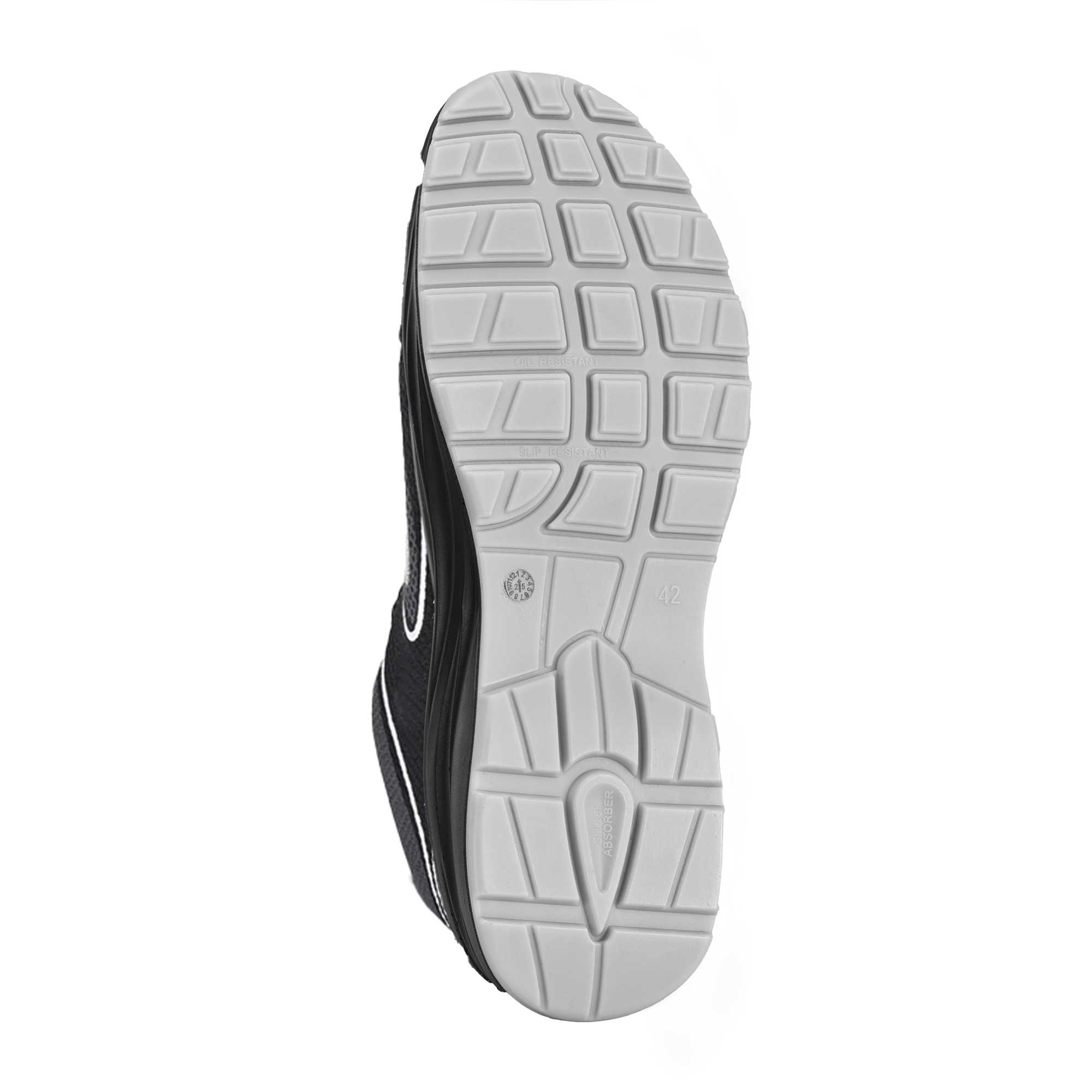

5. Outsole :

Flexible PU/PU Dual Density

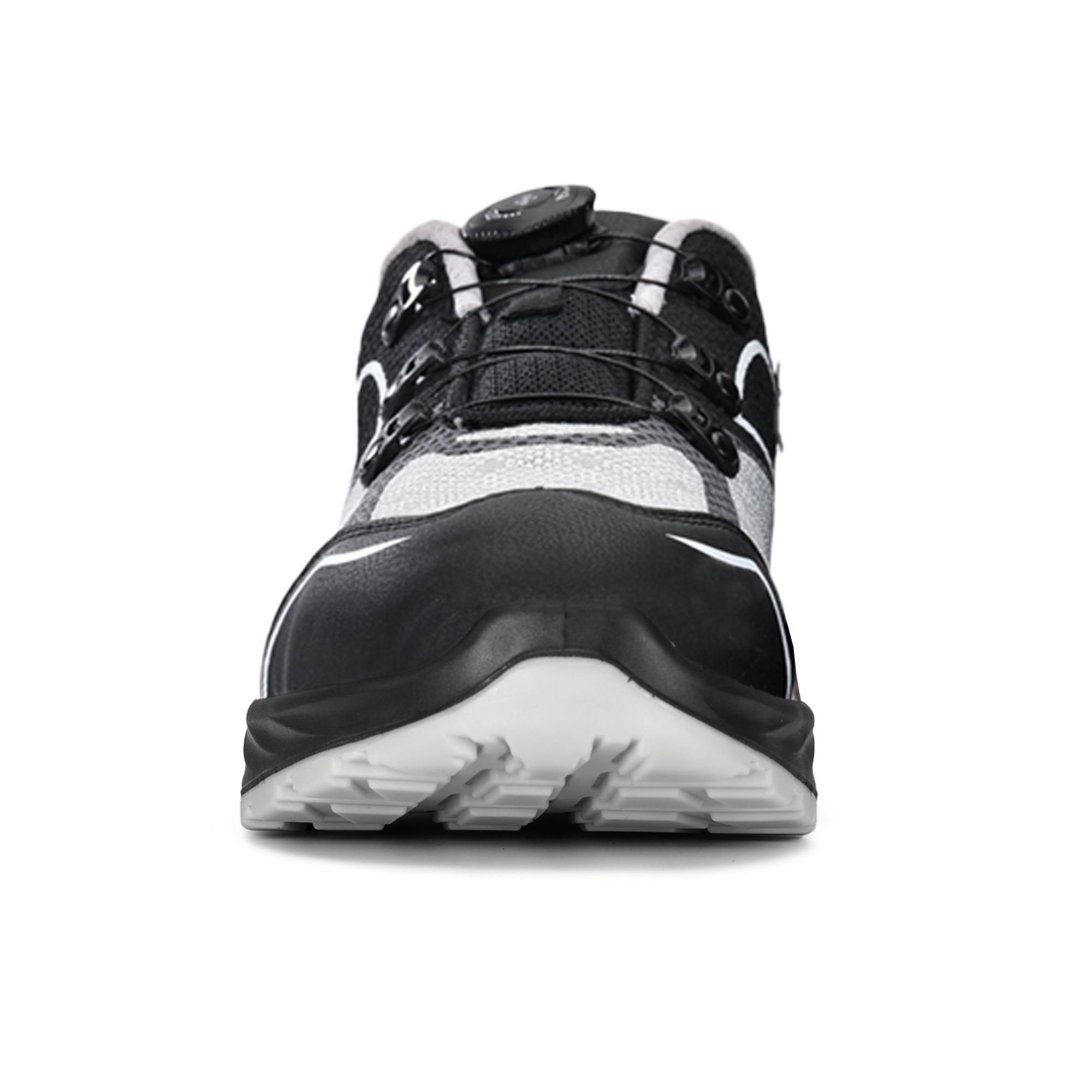

6. Toecap :

VortiGard™ Steel Toecap

7. Penetration :

VortiGard™ Steel Midsole Plate

8. Size : EU 37-47#, UK 3-13#, US4-14#
9. Standard:

CE EN ISO 20345:2011 S1P SRC

ASTM E 2149-2020 Approved Anti-microbial Lining & Insole (Odor Resistant)

10. Application :

Logistics, Warehouse, Mechanics, Glasses Installation, Factory Workshop, Garage etc

L-7501 TLS date


Upper, Lining & Bonding Strength Test Result Result
Upper Tear Strength ≥ 120.0 Newtons
Upper Tensile Properties ≥ 15.0 N/mm²
Lining Tear Strength ≥ 15.0 N/mm
Bonding Strength ≥ 4.0 N/mm
√ Protection with Composite Toecap (200 Joules) Result
Impact Resistance: Impact Energy: 200 ± 4 Joules, Internal Height Clearence ≥ 14mm      Compression Resistance: Compression Force: (15 ± 0.1) KN, Internal Height Clearence ≥ 14mm PASS
√ Penetration Resistance (1100 N)
Result
Penetration Resistance Force ≥ 1100 N PASS
√ Protection With Slip Resistant (SR) Result

Test Requirement :  Forward Heel Slip ≥0.31 (ISO 13287:2019)

                                        Backward Heel Slip ≥0.36  (ISO 13287:2019)

PASS

Standards : EN ISO 20345:2011 , Test floor: Ceramic tile, Lubricant: Sodium lauryl sulphate


√ Protection  With Anti-Static

Result

Test Requirement : Anti-static 100KΩ-1000MΩ, Test Voltage: 100±2 V DC, Test Period: 1 Minute

PASS

Standards :  EN ISO 20345:2011 Dry Humility (30±5) & Wet Humility (85±5)


√ Protection Resistant to Fuel Oil Result
Test Requirement : Change in Volume and Change in Hardness (Outsole) is No More Than +12%(*) PASS

Standards :  EN ISO 20345:2011


√ Sole Bonding Strength Test

steel toe work shoes test chart

• EN ISO 20344:2011, 5.2 (Between Upper & Sole)
• Average Test Result 5.8±5 (N/mm)

steel toe safety shoes details

SAFETOE Standard Package Instruction (Average 42# for Reference)
Shoes Weight : 1.1-1.2 KGS /Pair  Carton Weight : 12-13 KGS /Carton
1 Pair / Color Box , Dimensions : 32×21×12CM 10 Pair / Carton , Dimensions : 62×43×33CM

鞋盒

User Instructions:

1.) RECOMMENDED TO USE : Construction, Logistics, Mechanics, Glasses Installation, Workshop, Farming, Garden, Oil & Gas, Chemical Factory etc.

2.) LIMITATION TO USE: It is very important that footwear selected must be suitable for the right workplaces. The protection against risks or hazards which are not mentioned in this document is not warranted.

3.) FITTING & SIZE: All footwear are marked with standard size on tongue label. Some are with different size comparation, such as EU size, UK size, US size etc. Please wear footwear in a suitable size Footwear which are too loose or too tight may not provide optimum level of protection.

4.) STORAGE: Keep the footwear in its original packaging, under ordinary temperature, non-humidity conditions and in clean, covered and ventilated premises.

5.) CLEANING: Clean footwear regularly by high quality cleaning treatments recommended as suitable for the purpose. Don't use caustic or corrosive cleaning agents.


L-7501-TLSDSC-3858DSC-3880DSC-3881DSC-3885DSC-3895画板 1
