Goodyear Welted Wedge Safety Boots M-8179 Super

Size:
Availability:
Quantity:

Material Description

1. Upper :

Full Grain Crazy Horse Cow Nubuck Leather

2. Lining :

BactiVoid™ Sandwich Air Mesh

3. Insole :

Anti-Fatigue Memory Foam Insoles

4. Outsole :

Goodyear Welted Construction

5. Toecap :

VortiGard™ Steel Toecap

6. Penetration :

VortiGard™ Steel Midsole Plate

7. Size : EU 37-47#, UK 3-13#, US 4-14#
8. Standard:

ASTM F2413-18 M I/75 C/75 PR

ASTM E 2149-2020 Approved Anti-bacteria Lining & Insole (Odor Resistant)

9. Application :

Construction & Building, Civil Engineering, Structural Work, Mechanical Work, Maintenance etc

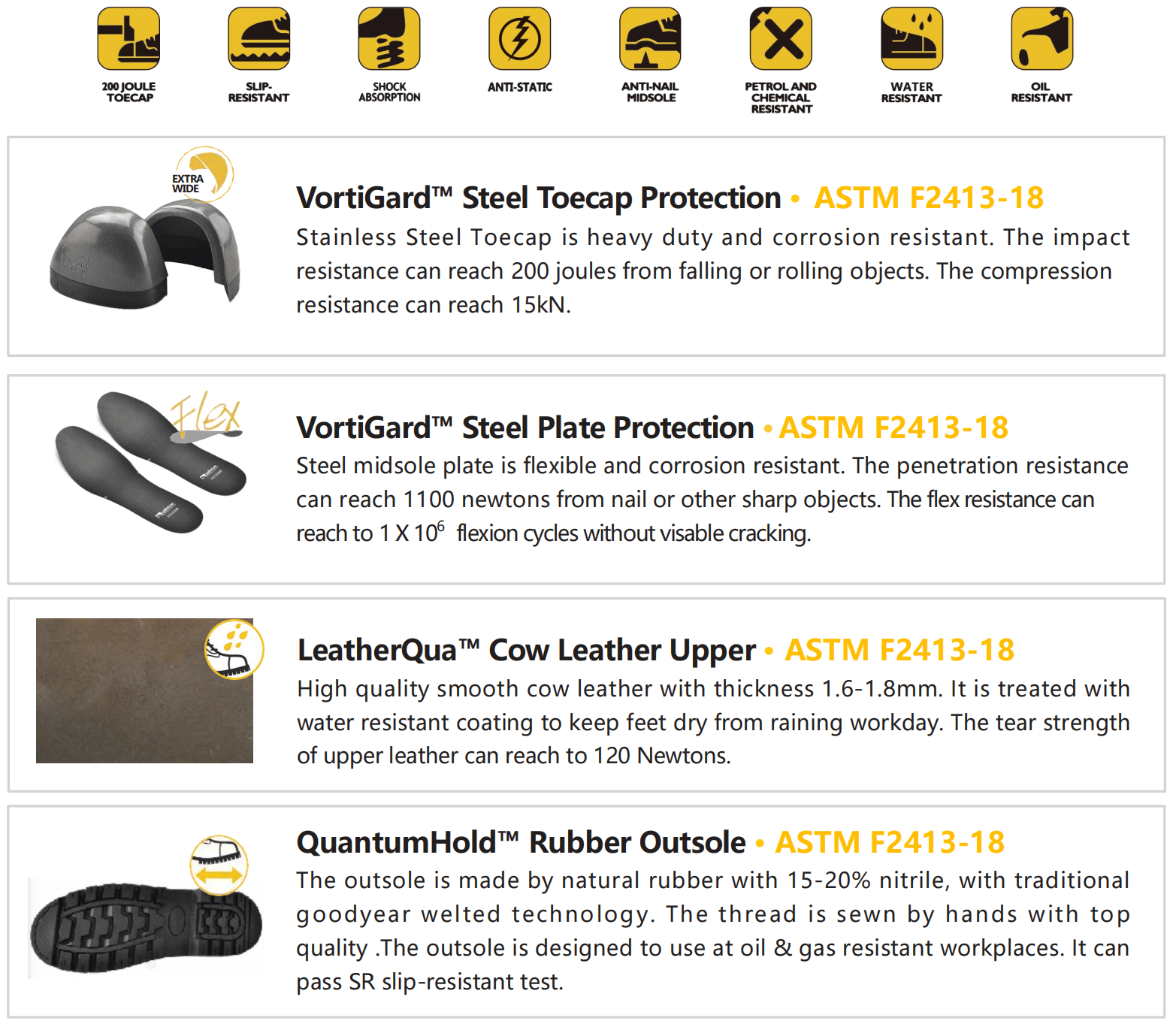

M-8179 date


Technical Details

√ Upper, Lining & Bonding Strength Test Result Result
Leather Tear Strength ≥ 120.0 Newtons
Leather Tensile Properties ≥ 15.0 N/mm²
Lining Tear Strength ≥ 15.0 N/mm
Bonding Strength ≥ 4.0 N/mm
√ Protection with Steel Toecap (200 Joules) Result
Impact Resistance: Impact Energy: 200 ± 4 Joules, Internal Height Clearence ≥ 14mm      Compression Resistance: Compression Force: (15 ± 0.1) KN, Internal Height Clearence ≥ 14mm PASS
√ Penetration Resistance (1100 N)
Result
Penetration Resistance Force ≥ 1100 N PASS
√ Protection With Slip Resistant (SR) Result

Test Requirement :  Forward Heel Slip ≥0.31 (ISO 13287:2019)

                                        Backward Heel Slip ≥0.36  (ISO 13287:2019)

PASS

Standards : EN ISO 20342:2022(5.3.5) , Test floor: Ceramic tile, Lubricant: Sodium lauryl sulphate


√ Protection Against Heat Risk 300℃

Result

Test Requirement : The Outsole Did Not Melt & Did Not Develop Any Cracks When Bent Aound Mandrel

PASS

Standards :  EN ISO 20345:2022. 300℃    HRO=Heat Resistant


√ Protection Resistant to Fuel Oil Result
Test Requirement : Change in Volume and Change in Hardness (Outsole) is No More Than +12%(*) PASS

Standards :  EN ISO 20345:2022 (6.4.2)


√ Sole Bonding Strength Test


•EN ISO 20345:2022 (Between Upper & Sole)
• Average Test Result 5.8±5 (N/mm)

8179美标-ASTM


Packaging

SAFETOE Standard Package Instruction (Average 42# for Reference)
Shoes Weight : 1.3-1.4 KGS /Pair  Carton Weight : 14-15 KGS /Carton
1 Pair / Color Box , Dimensions : 32×23×12CM 10 Pair / Carton , Dimensions : 62×47×33CM

鞋盒

User Instructions:

1.) RECOMMENDED TO USE : Construction, Logistics, Mechanics, Glasses Installation, Workshop, Farming, Garden, Oil & Gas, Chemical Factory.

2.) LIMITATION TO USE: It is very important that footwear selected must be suitable for the right workplaces. The protection against risks or hazards which are not mentioned in this document is not warranted.

3.) FITTING & SIZE: All footwear are marked with standard size on tongue label. Some are with different size comparation, such as EU size, UK size, US size etc. Please wear footwear in a suitable size Footwear which are too loose or too tight may not provide optimum level of protection.

4.) STORAGE: Keep the footwear in its original packaging, under ordinary temperature, non-humidity conditions and in clean, covered and ventilated premises.

5.) CLEANING: Clean footwear regularly by high quality cleaning treatments recommended as suitable for the purpose. Don't use caustic or corrosive cleaning agents.


Photos

8179+锤子8179-点赞8179-减震舒适8179-钢头8179美标-ASTM
