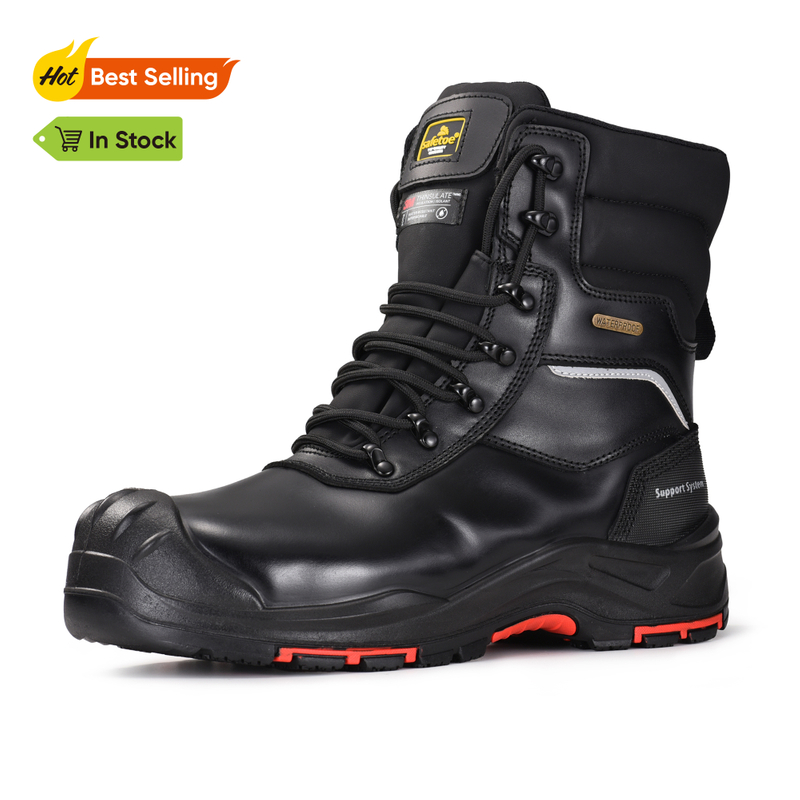

Water Resistant Membrane Lining Work Boots For Men Workers In Extreme Winter H-9552

Size:
Availability:
Quantity:
1. Upper :

Full Grain Smooth Cow Leather

2. Lining 1:

Sanvlar-Tex™ Water Resistant Membrane

3. Lining 2: 3M Thinsulate Insulation (-30℃ Cold Resistant)
4. Insole : BactiVoid™ Anti-Bacteria Memory Foam Insoles
5. Outsole : QuantumHold™ Anti-Slip Nitrile Rubber Outsole
6. Toecap : VortiGard™ Non-metallic Composite Toecap
7. Penetration : VortiGard™ Non-metallic Kevlar Plate
8. Size : EU 37-47#, UK 3-13#, US 4-14#
9. Standard:

CE EN ISO 20345:2022+A1:2024 S7S SR CI HI FO HRO

ASTM F2413-24 M I/75 C/75 PR SD

ASTM E 2149-2020 Approved Anti-microbial Lining & Insole (Odor Resistant)

10. Application : Construction, Logistics, Mechanics, Workshop, Mining, Chemical Factory, Oil & Gas Industry etc

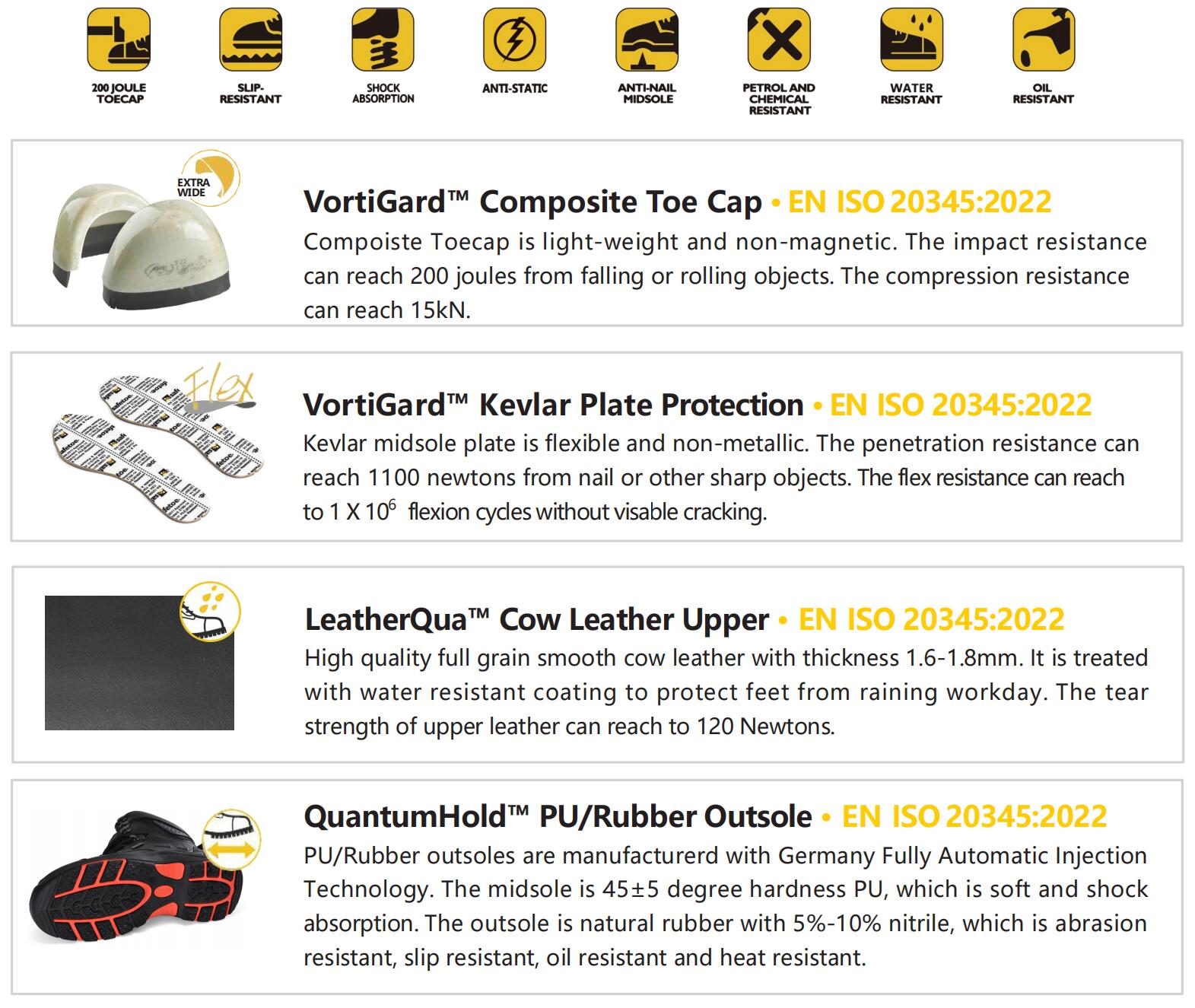

H-9552 B date


Upper, Lining & Bonding Strength Test Result Result
Leather Tear Strength ≥ 120.0 Newtons
Leather Tensile Properties ≥ 15.0 N/mm²
Lining Tear Strength ≥ 15.0 N/mm
Bonding Strength ≥ 4.0 N/mm
√ Protection with Composite Toecap (200 Joules) Result
Impact Resistance: Impact Energy: 200 ± 4 Joules, Internal Height Clearence ≥ 14mm      Compression Resistance: Compression Force: (15 ± 0.1) KN, Internal Height Clearence ≥ 14mm PASS
√ Penetration Resistance (1100 N)
Result
Penetration Resistance Force ≥ 1100 N PASS
√ Protection With Cold Insulation (CI) Result

Test Requirement : Temperature Decrease on upper surface of insock≤ 10℃

PASS

Standards : EN ISO 20345:2022(6.2.3.2) , Temperature of cold box: -30℃, Period: 30±1 minutes


√ Protection With Slip Resistant (SR)

Result

Test Requirement : Forward Heel Slip ≥0.31 ( Test methordL ISO 13287:2019)

                                        Backward Forepart Slip ≥0.36  ( Test methordL ISO 13287:2019)

PASS

Standards :  EN ISO 20345:2022(5.3.5) ,  Test floor: Ceramic tile, Lubricant: Sodium lauryl sulphate


√Protection With Water Resistant (WR)         Result

Test Requirement : No Water Penetration through Whole Footwear.

PASS

Standards :  EN ISO 20345:2022  (6.2.5)  Water Level: 20mm above the feather line,  Period: 80±5 minutes



√ Sole Bonding Strength Test

Bonding Strength Test Report

EN ISO 20345:2022, 5.3 (Between Upper & Sole)
• Average Test Result 5.8±5 (N/mm)


SAFETOE Standard Package Instruction (Average 42# for Reference)
Shoes Weight : 1.4-1.5 KGS /Pair  Carton Weight : 15-16 KGS /Carton
1 Pair / Color Box , Dimensions : 32×28×12CM 10 Pair / Carton , Dimensions : 62×57×33CM


2. 冬靴


User Instructions:

1) RECOMMENDED TO USE: Mechanics, Construction, Logistics, Workshop, Farming, Glasses Installation, Garden, Oil & Gas, Chemical Factory, etc.

2) LIMITATION TO USE: The selected footwear must be suitable for the right workplaces. The protection against risks or hazards which are not mentioned in this document is not warranted.

3) FITTING & SIZE: All footwear is marked with standard size on the tongue label. Some are with different size comparisons, such as EU size, UK size, US size, etc. Please wear footwear in a suitable size Footwear that is too loose or too tight may not provide the optimum level of protection.

4) STORAGE: Keep the footwear in its original packaging, under ordinary temperature, non-humidity conditions, and in clean, covered, and ventilated premises.

5) CLEANING: Clean footwear regularly with high-quality cleaning treatments recommended as suitable for the purpose. Don't use caustic or corrosive cleaning agents.


H-9552BKH-9552_画板 1 副本 4H-9552_画板 1 副本 3H-9552_画板 1 副本H-9552_画板 1 副本 6
