| 1. Mask Holder: | Comfortable Silica Gel |

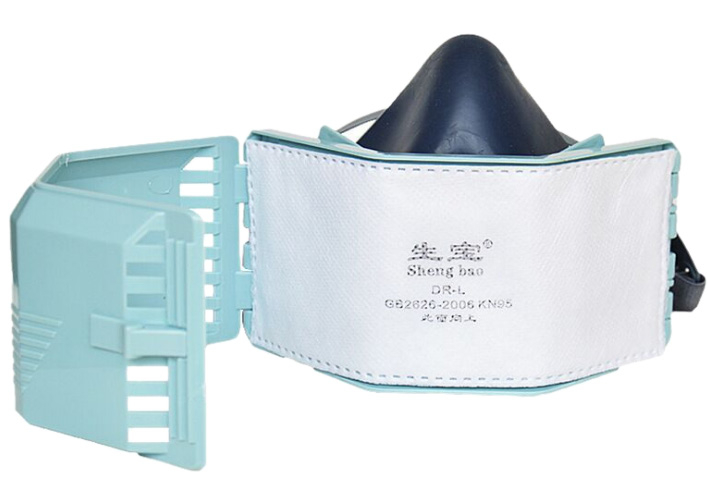

| 2. Filter: | Replaceable Carbon Filter（Single） |
| 3. Band: | Ajustable Elastic Head Band |
| 4. Shape: | Cup Design |
| 5. Standard: | CE EN140:1998 GB2890-2009 |
| 6. Application: | Chemical, Construction, Road & Building Workers, Woodworking, Mining, Casting, Grinding, Food & Cleaning Industry, Electronics, Assembly and Machinery, Cleaning, Treatment, Splashing, Most Dust Generated Workplaces, etc. |
Users Instruction:
1.) FITTING INSTRUCTIONS：
⚫ This respirator is a double filtering device. Please assemble two filters before wearing.
⚫ Loosen the elastic straps. Place the cradle suspension over the crown of your head.
⚫ Grasp the front of the face piece and position face piece over your mouth and nose, then grasp bottom elastic headband straps and buckle them behind the neck.
⚫ Pull the top straps and the bottom straps uniformly until the respirator fits securely and comfortably against your face. If necessary, readjust the straps.
2.) LIMITED TO USE:
⚫ This respirator does not supply oxygen. Please do not use in atmospheres containing less than 18% oxygen.
⚫ Do not use this respirator in oxygen enriched air. It becomes hazardous when the concentration increases. There is no sharp limit even a few percent more increases the hazard. Fires in oxygen enriched atmosphere starts easily with electrostatic sparks and are very intense.
⚫ Do not use this filter in explosive atmosphere.
⚫ Do not use when concentrations of contaminants are immediately dangerous to life and health, or unknown contaminants;
⚫ Do not abuse or misuse this respirator.
⚫ Beards/moustache at the sealing area of the mask can cause leaks. Therefore it is unlikely that the requirements for leakage will be achieved if these facial hair passes under the face seal. Always make sure the respirator forms a tight seal and the cartridges and/or filters are attached prior to entering a hazardous atmosphere.
3.) LIFESPAN
The Respirator can be expected to remain in service for 3 years or more, when it is in well stored condition.
4.) CLEANING & MAINTENANCE
⚫Cleaning is recommended after use; Remove the cartridges or filters before cleaning.
⚫Clean the face piece (excluding cartridges and filters), with medical grade alcohol, and let dry in room temperature.
5.) STORAGE
The cleaned respirator should be stored away in its original packaging or in a container box from contaminated areas when not in use. Always remember to store away from direct daylight or any source of heat.
