M-8515 NS
Safetoe
Size: | |
---|---|
Availability: | |
Quantity: | |

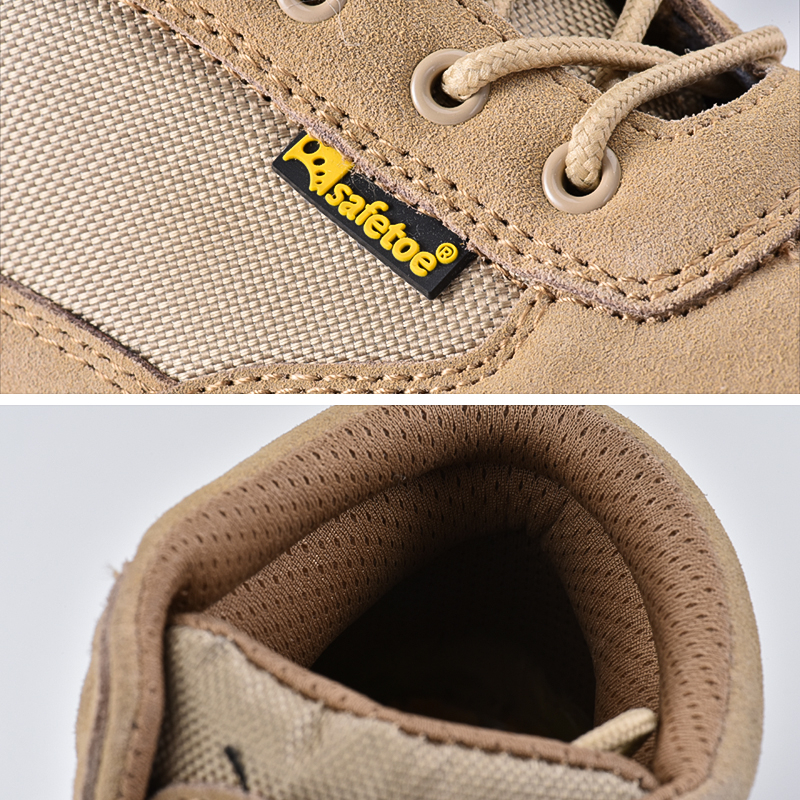

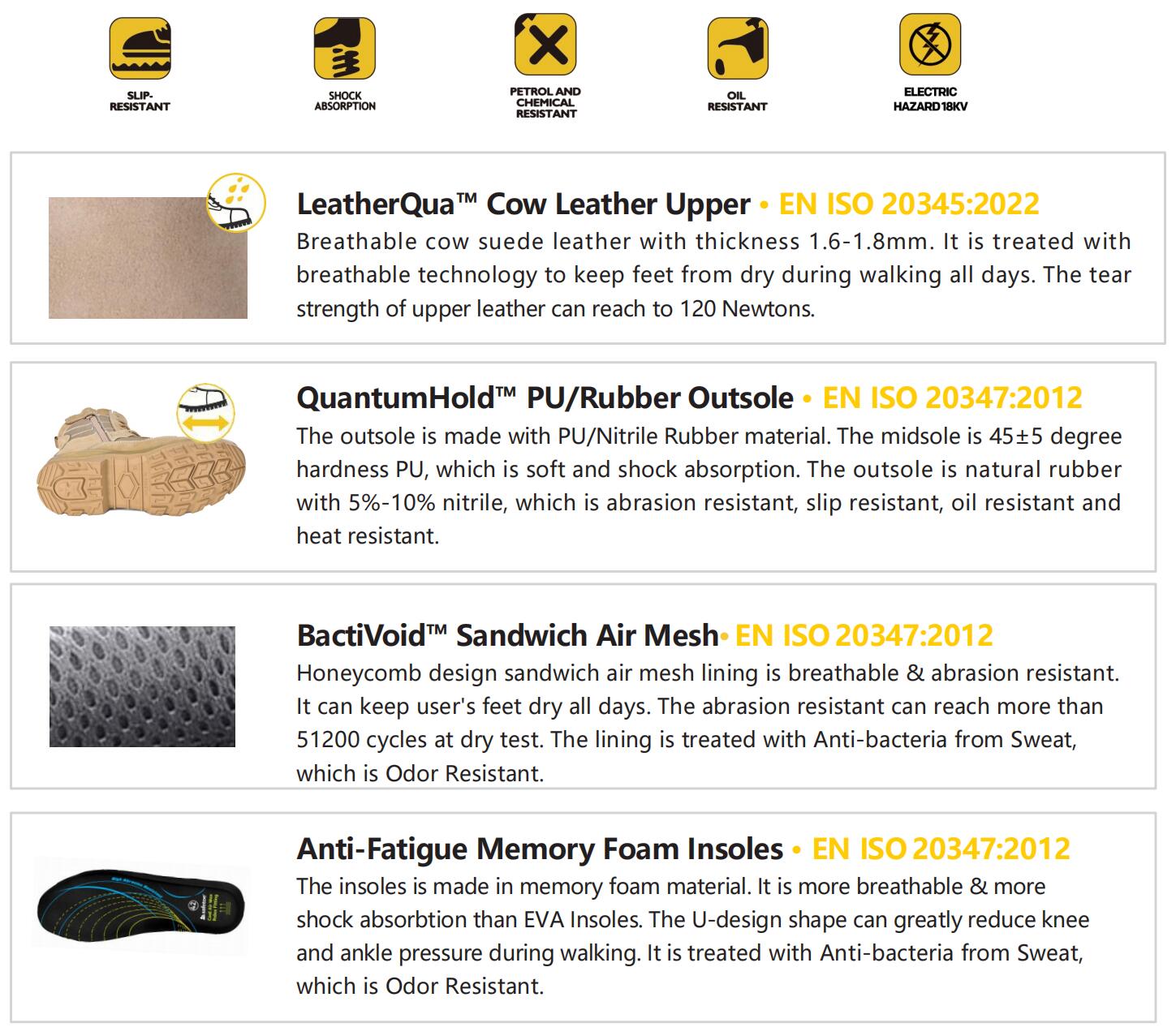

1. Upper : | Breathable Cow Suede Leather |
2. Lining : | BactiVoid™ Breathable Sandwich Air Mesh |
3. Insole : | Comfortable Memory Foam Insoles |

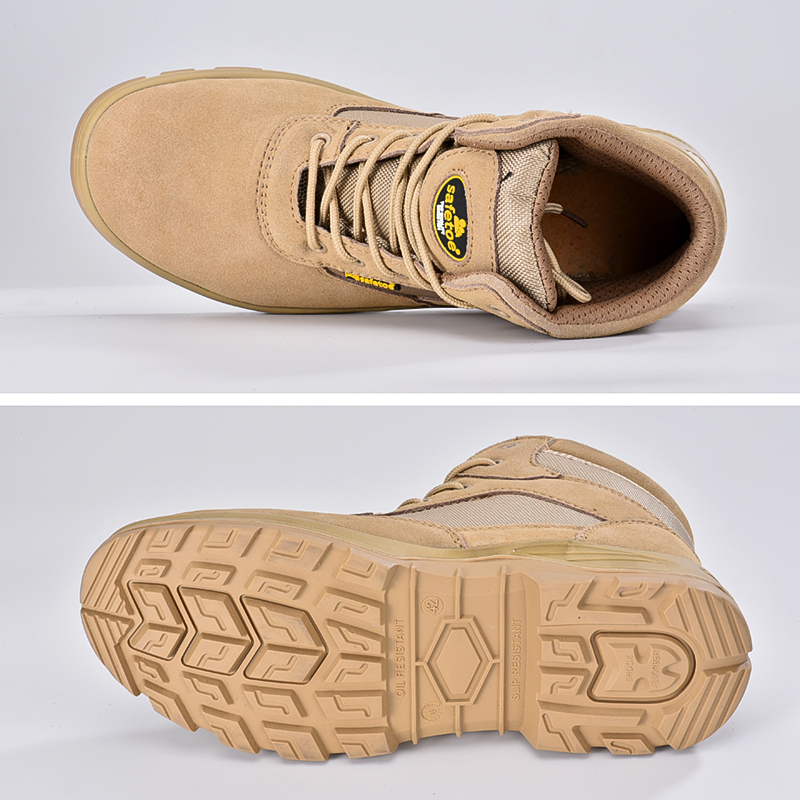

4. Outsole : | QuantumHold™ PU/Nitrile Rubber Injection |
5. Toecap : | NONE |
6. Penetration : | NONE |
7. Size : | EU 37-47#, UK 3-13#, US 4-14# |
8. Standard: | EN ISO 20347:2012 OB SRC HI FO HRO ASTM E 2149-2020 Approved Anti-bacteria Lining & Insole (Odor Resistant) |
9. Application : | Combat, Guards, Military, Police, Tactical, Training, Outdoor Hiking, Airport etc |
1. Upper : | Breathable Cow Suede Leather |
2. Lining : | BactiVoid™ Breathable Sandwich Air Mesh |
3. Insole : | Comfortable Memory Foam Insoles |
4. Outsole : | QuantumHold™ PU/Nitrile Rubber Injection |
5. Toecap : | NONE |
6. Penetration : | NONE |
7. Size : | EU 37-47#, UK 3-13#, US 4-14# |
8. Standard: | EN ISO 20347:2012 OB SRC HI FO HRO ASTM E 2149-2020 Approved Anti-bacteria Lining & Insole (Odor Resistant) |
9. Application : | Combat, Guards, Military, Police, Tactical, Training, Outdoor Hiking, Airport etc |
√ Upper, Lining & Bonding Strength Test Result | Result |
Leather Tear Strength ≥ | 120.0 Newtons |
Leather Tensile Properties ≥ | 15.0 N/mm² |
Lining Tear Strength ≥ | 15.0 N/mm |
Bonding Strength ≥ | 4.0 N/mm |
√ Protection With Slip Resistant (SRC) | Result |
Test Requirement : SRA (Eurotile 2+Nal S) Forward Heel Slip ≥0.28 & Forward Flat Slip: ≥0.32 SRB (Steel Floor+Glycerine) Forward Heel Slip ≥0.13 & Forward Flat Slip: ≥0.18 | PASS |
Standards : EN ISO20344:2011(5.11) , SRC Means both SRA & SRB requirements are fulfilled. | |
√ Protection Against Heat Risk 300℃ | Result |
Test Requirement : The Outsole Did Not Melt & Did Not Develop Any Cracks When Bent Aound Mandrel | PASS |
Standards : EN ISO 20347:2012. 300℃ HRO=Heat Resistant | |
√ Protection Resistant to Fuel Oil | Result |
Test Requirement : Change in Volume and Change in Hardness (Outsole) is No More Than +12%(*) | PASS |
Standards : EN ISO 20347:2012(6.4.2) |
√ Sole Bonding Strength Test | |
• EN ISO 20347:2012, 5.3 (Between Upper & Sole) | |
• Average Test Result 5.8±5 (N/mm) |
√ Upper, Lining & Bonding Strength Test Result | Result |
Leather Tear Strength ≥ | 120.0 Newtons |
Leather Tensile Properties ≥ | 15.0 N/mm² |
Lining Tear Strength ≥ | 15.0 N/mm |
Bonding Strength ≥ | 4.0 N/mm |
√ Protection With Slip Resistant (SRC) | Result |
Test Requirement : SRA (Eurotile 2+Nal S) Forward Heel Slip ≥0.28 & Forward Flat Slip: ≥0.32 SRB (Steel Floor+Glycerine) Forward Heel Slip ≥0.13 & Forward Flat Slip: ≥0.18 | PASS |
Standards : EN ISO20344:2011(5.11) , SRC Means both SRA & SRB requirements are fulfilled. | |
√ Protection Against Heat Risk 300℃ | Result |
Test Requirement : The Outsole Did Not Melt & Did Not Develop Any Cracks When Bent Aound Mandrel | PASS |
Standards : EN ISO 20347:2012. 300℃ HRO=Heat Resistant | |
√ Protection Resistant to Fuel Oil | Result |
Test Requirement : Change in Volume and Change in Hardness (Outsole) is No More Than +12%(*) | PASS |
Standards : EN ISO 20347:2012(6.4.2) |
√ Sole Bonding Strength Test | |
• EN ISO 20347:2012, 5.3 (Between Upper & Sole) | |
• Average Test Result 5.8±5 (N/mm) |
SAFETOE Standard Package Instruction (Average 42# for Reference) | |
Shoes Weight : 1.1-1.2 KGS /Pair | Carton Weight : 12-13 KGS /Carton |
1 Pair / Color Box , Dimensions : 32×24×12CM | 10 Pair / Carton , Dimensions : 62×49×33CM |
User Instructions:
1) RECOMMENDED TO USE: Mechanics, Construction, Logistics, Workshop, Farming, Glasses Installation, Garden, Oil & Gas, Chemical Factory, etc.
2) LIMITATION TO USE: The selected footwear must be suitable for the right workplaces. The protection against risks or hazards which are not mentioned in this document is not warranted.
3) FITTING & SIZE: All footwear is marked with standard size on the tongue label. Some are with different size comparisons, such as EU size, UK size, US size, etc. Please wear footwear in a suitable size Footwear that is too loose or too tight may not provide the optimum level of protection.
4) STORAGE: Keep the footwear in its original packaging, under ordinary temperature, non-humidity conditions, and in clean, covered, and ventilated premises.
5) CLEANING: Clean footwear regularly with high-quality cleaning treatments recommended as suitable for the purpose. Don't use caustic or corrosive cleaning agents.
SAFETOE Standard Package Instruction (Average 42# for Reference) | |
Shoes Weight : 1.1-1.2 KGS /Pair | Carton Weight : 12-13 KGS /Carton |
1 Pair / Color Box , Dimensions : 32×24×12CM | 10 Pair / Carton , Dimensions : 62×49×33CM |
User Instructions:
1) RECOMMENDED TO USE: Mechanics, Construction, Logistics, Workshop, Farming, Glasses Installation, Garden, Oil & Gas, Chemical Factory, etc.
2) LIMITATION TO USE: The selected footwear must be suitable for the right workplaces. The protection against risks or hazards which are not mentioned in this document is not warranted.
3) FITTING & SIZE: All footwear is marked with standard size on the tongue label. Some are with different size comparisons, such as EU size, UK size, US size, etc. Please wear footwear in a suitable size Footwear that is too loose or too tight may not provide the optimum level of protection.
4) STORAGE: Keep the footwear in its original packaging, under ordinary temperature, non-humidity conditions, and in clean, covered, and ventilated premises.
5) CLEANING: Clean footwear regularly with high-quality cleaning treatments recommended as suitable for the purpose. Don't use caustic or corrosive cleaning agents.
