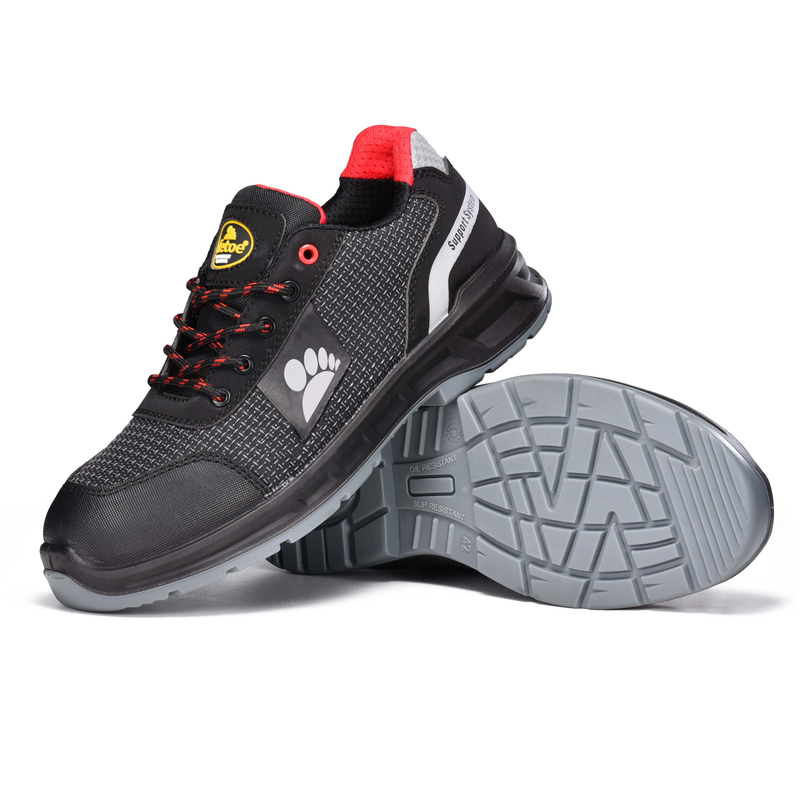

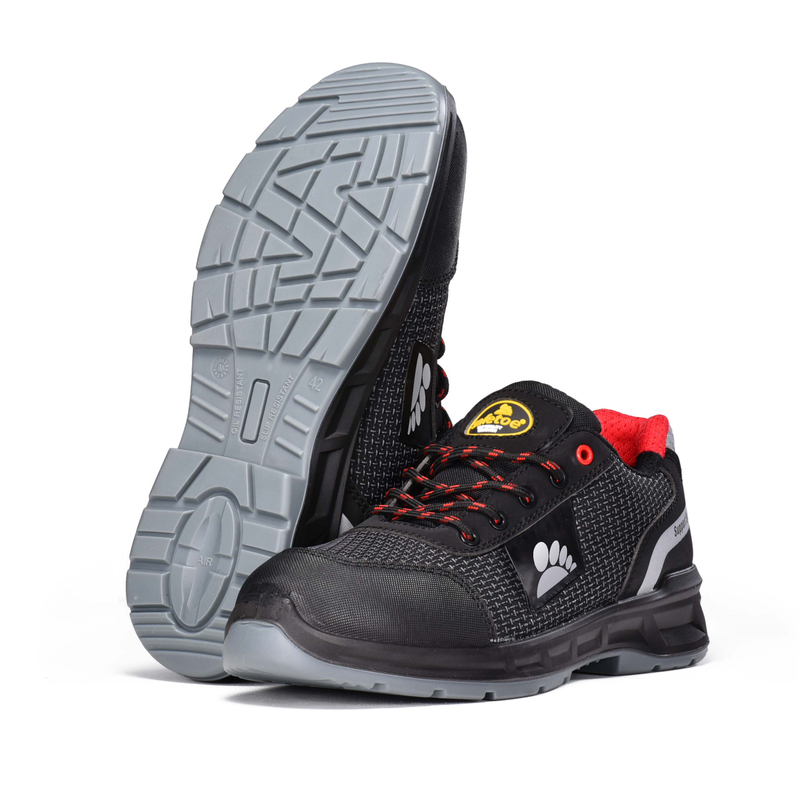

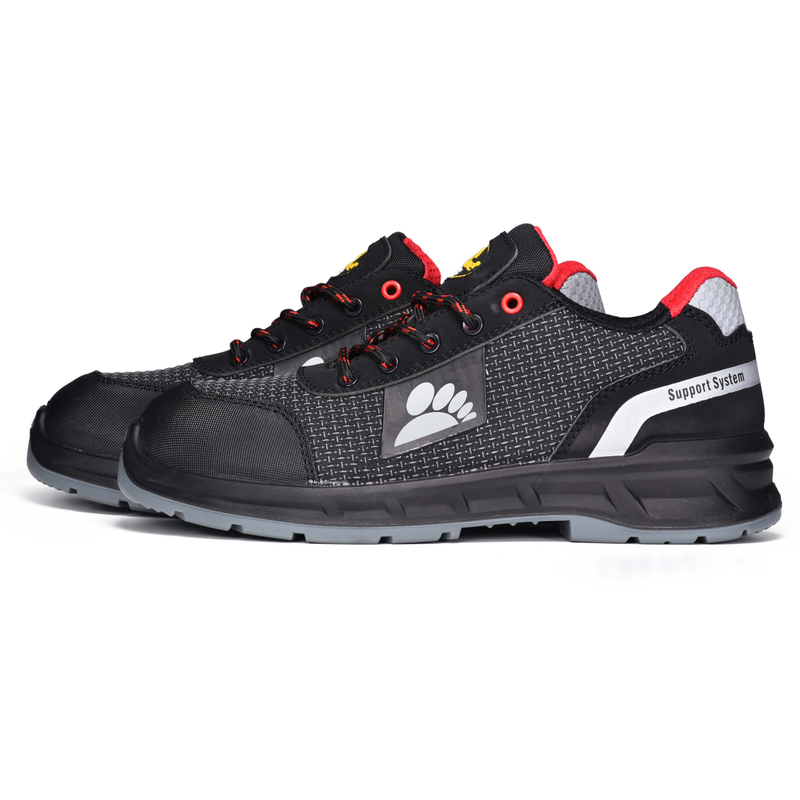

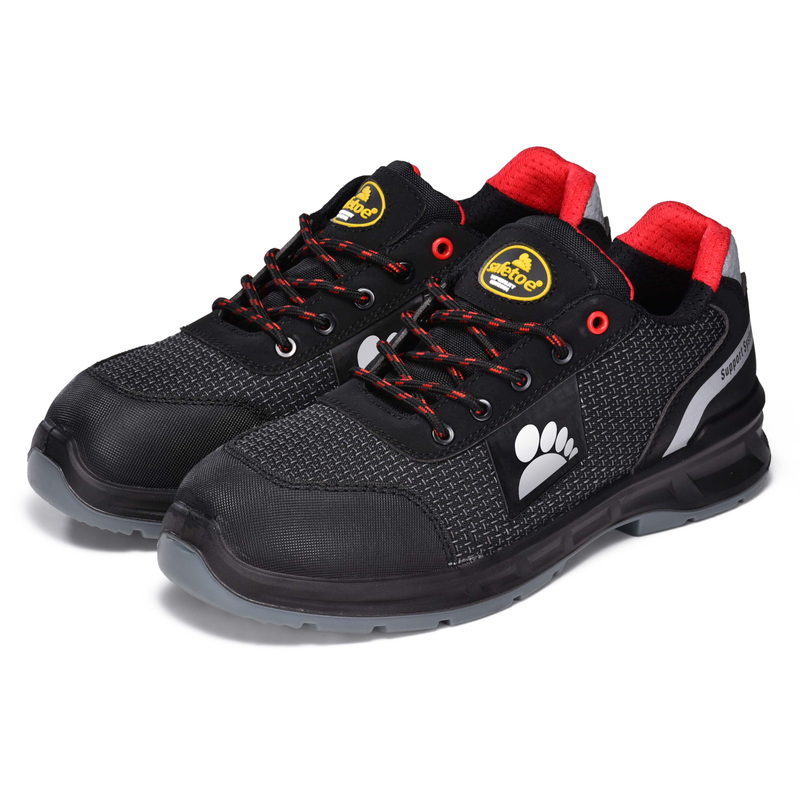

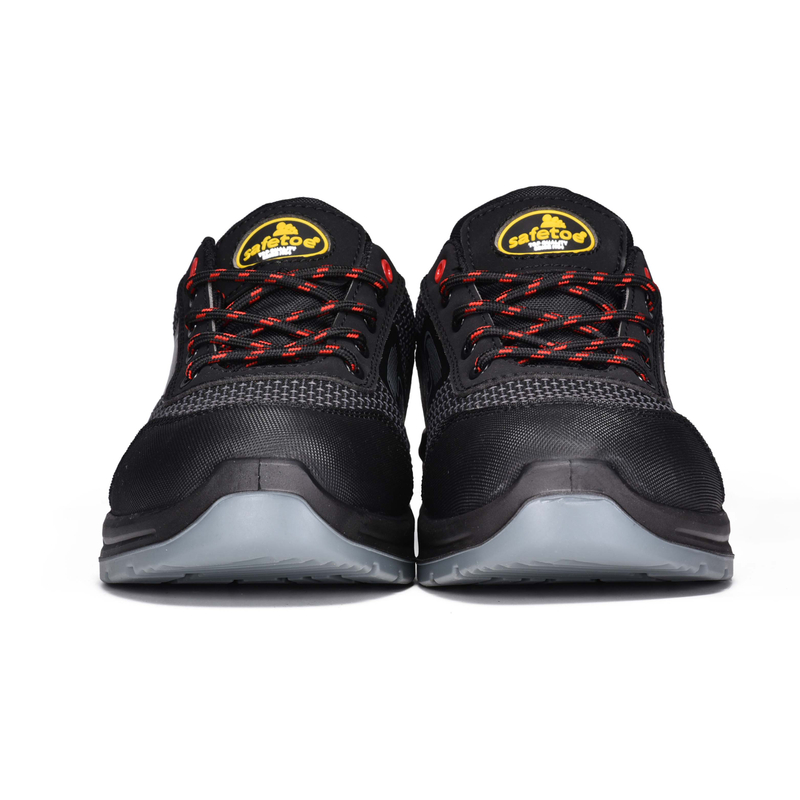

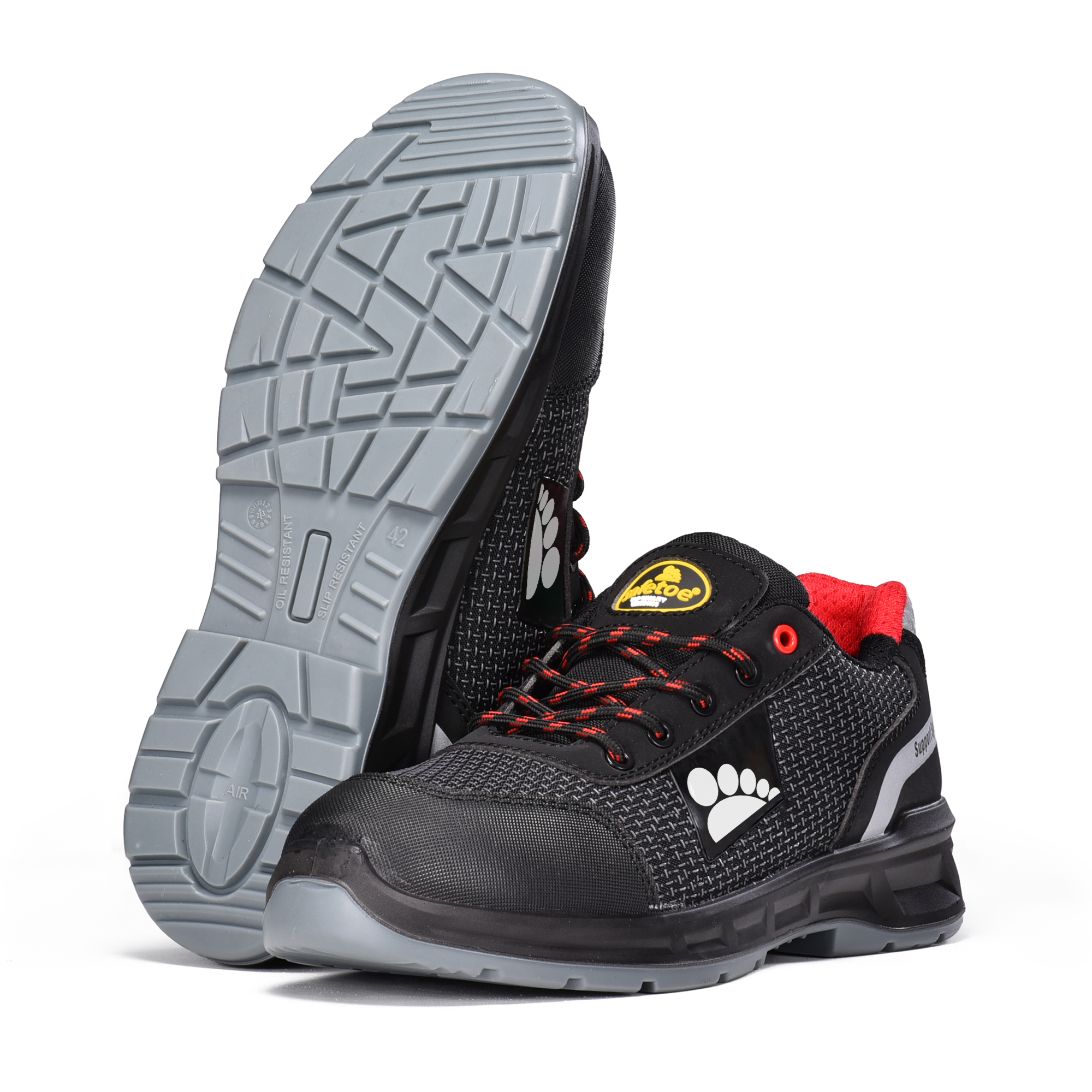

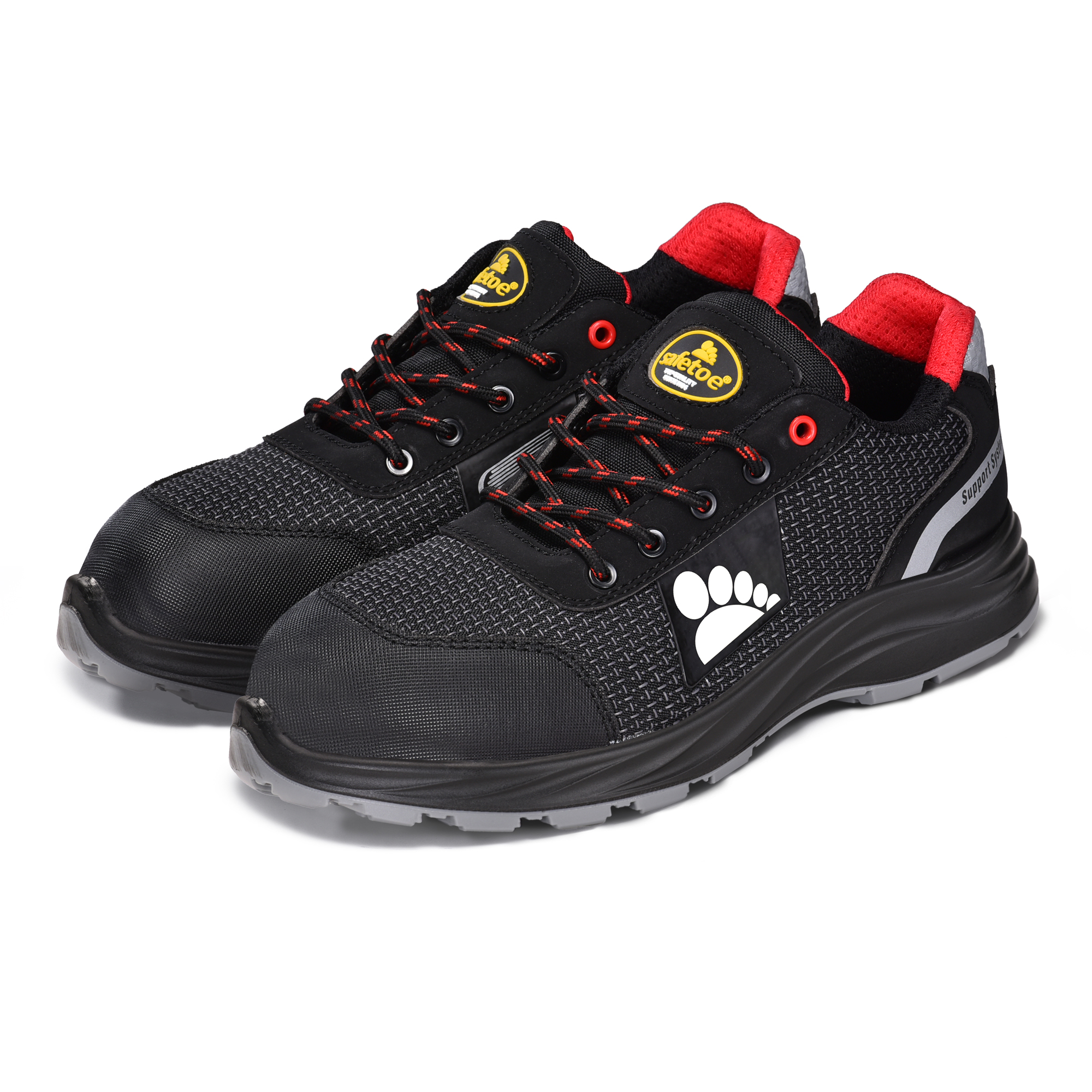

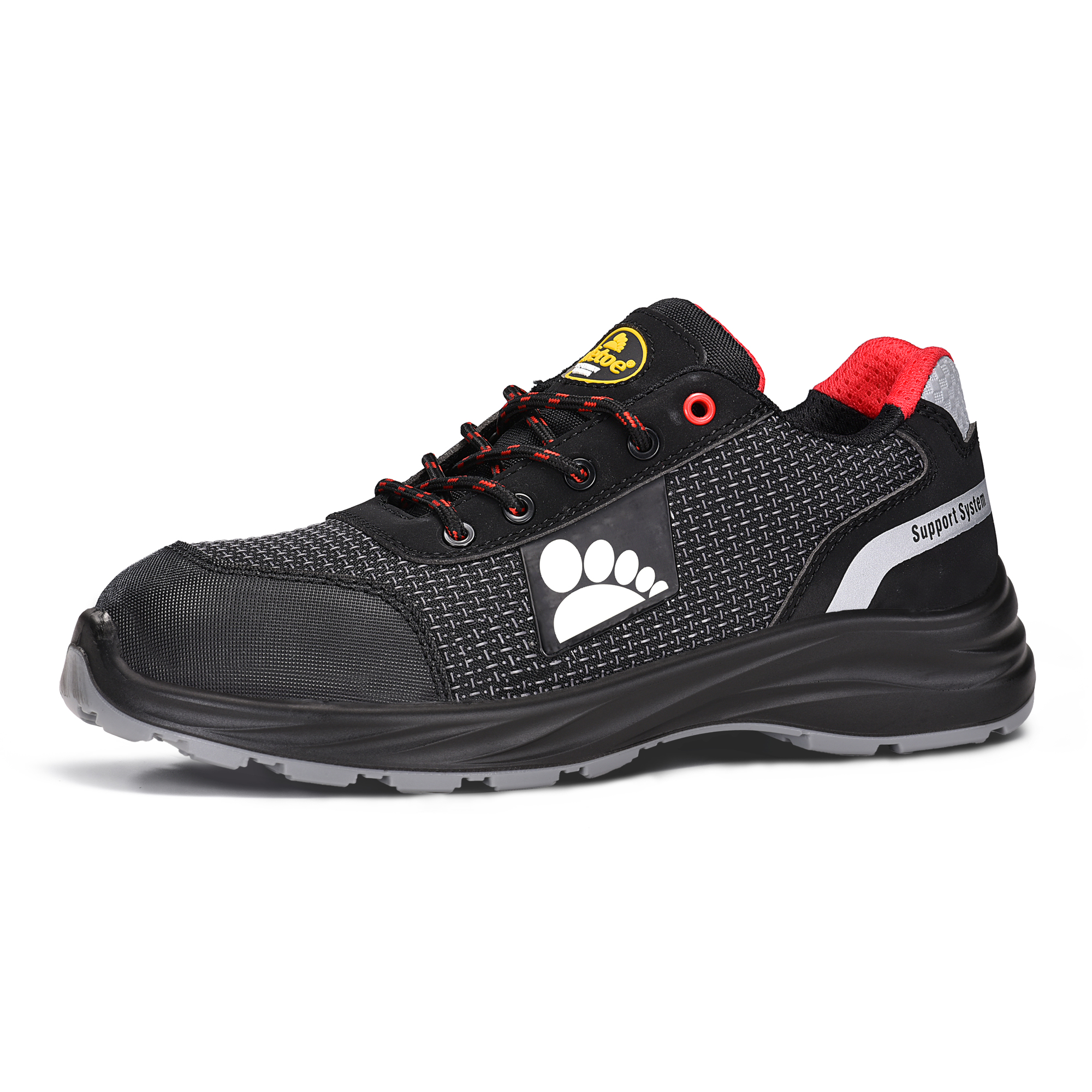

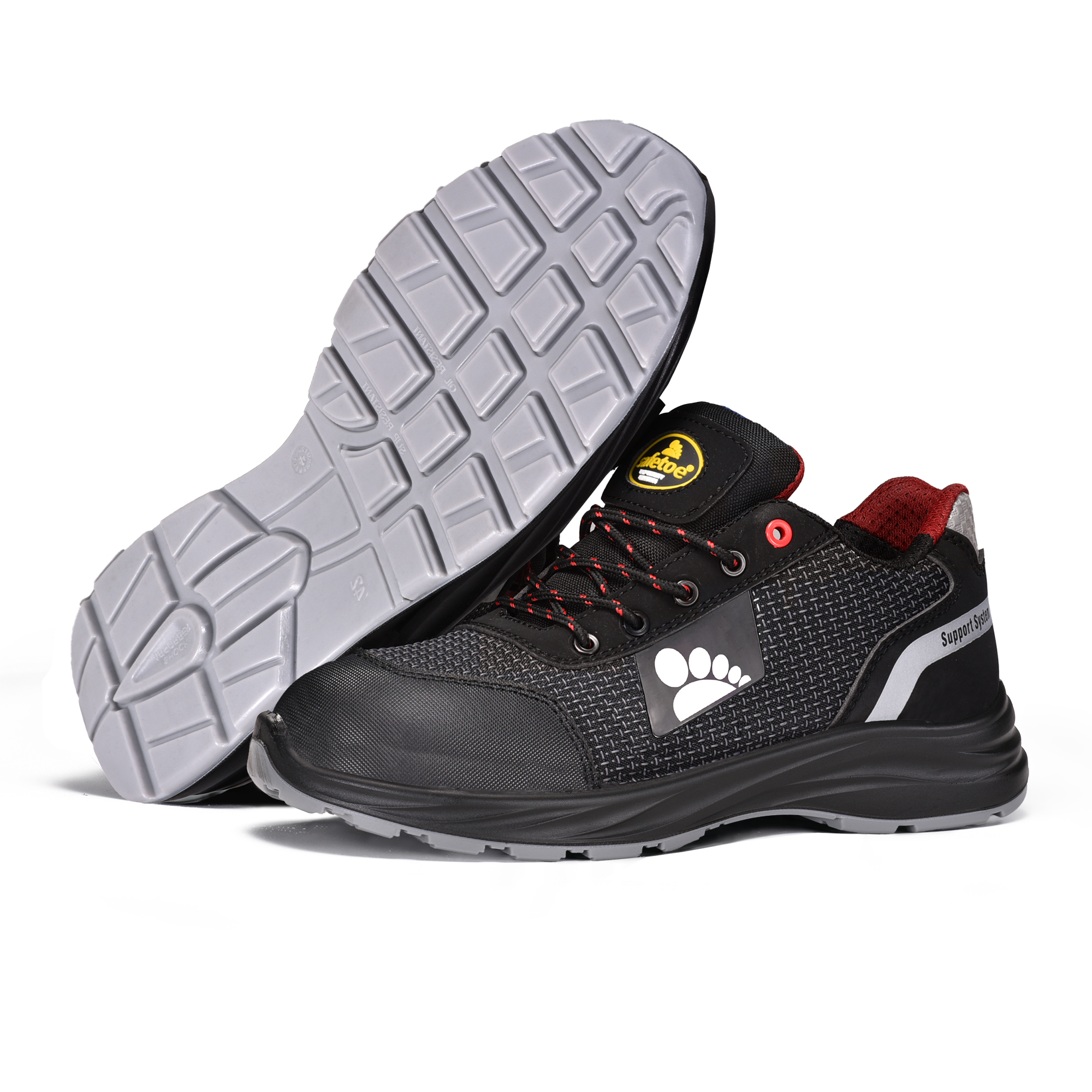

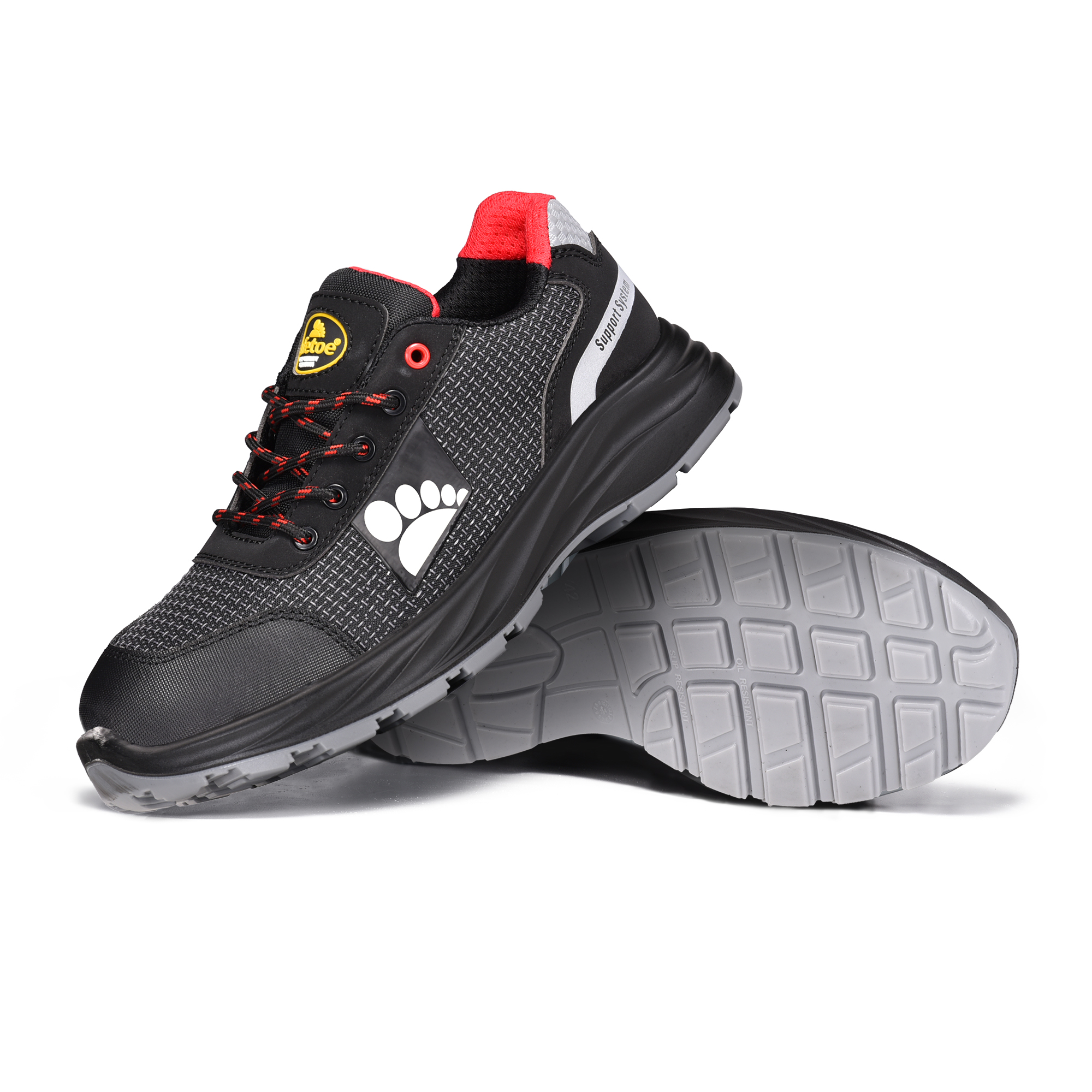

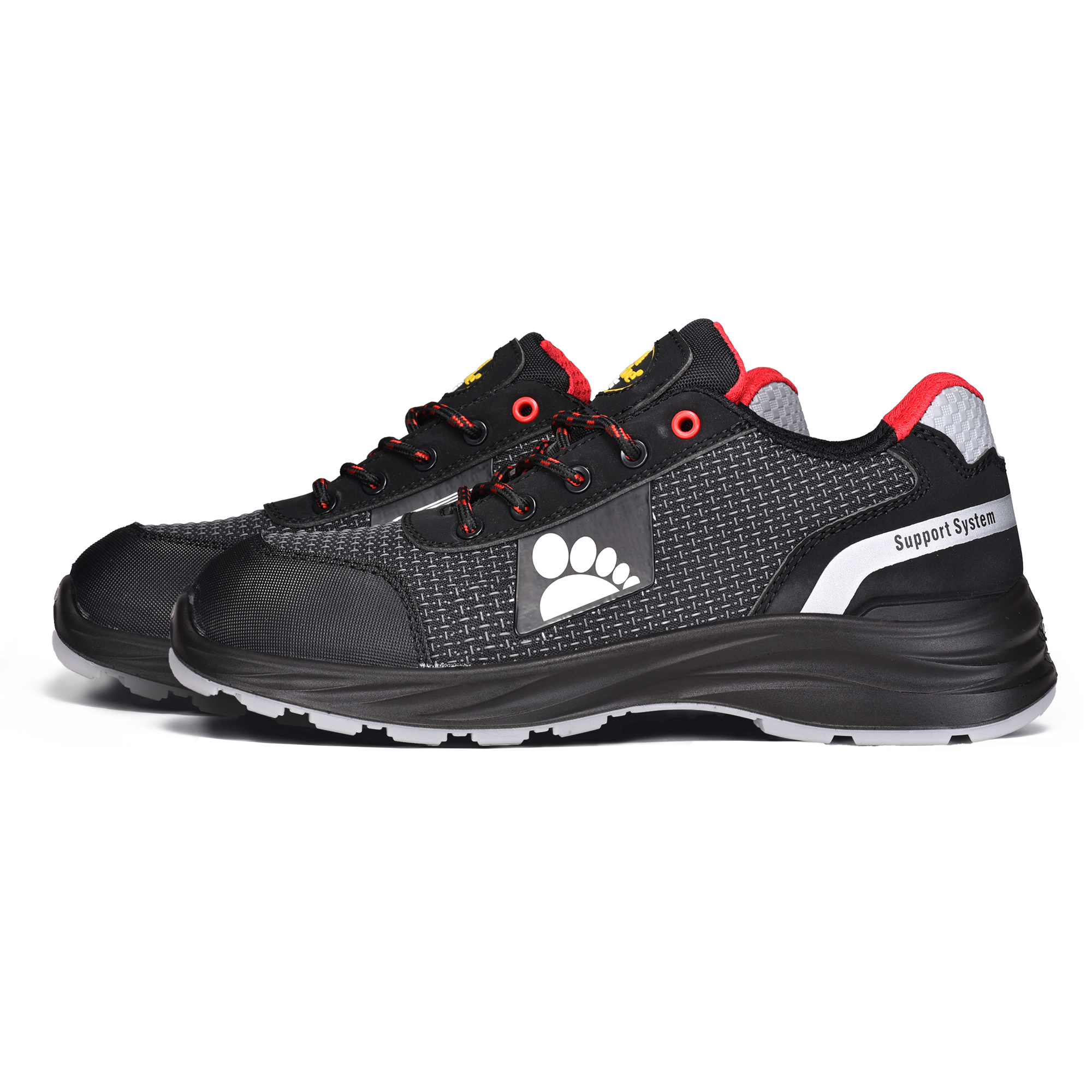

Light Weight PU-TEK S1P Safety Shoes with Composite Toe & Kevlar Plate L-7512

Size:
Availability:
Quantity:
1. Upper : Water Resistant PU-Tek 8700 Fabric
2. Lining : BactiVoid™ Breathable Sandwich Air Mesh
3. Insole : Anti-fatigue Memory Foam Insoles
4. Outsole : Flexible PU/PU Injection
5. Toecap : VortiGard™ Composite Toecap
6. Penetration : VortiGard™ Kevlar Midsole Plate
7. Size : EU 37-47#, UK 3-13#, US 4-14#
8. Standard:

CE EN ISO 20345:2022+A1:2024 S3 PS FO SR

ASTM E 2149-2020 Approved Anti-bacteria Lining & Insole (Odor Resistant)

9. Application : Logistics, Express, Warehouse, Mechanics, Factory Workshop, Garage etc


L-7512 blue date 7512 和 8571 的型号 通用这个数据图


Upper, Lining & Bonding Strength Test Result Result
Upper Tear Strength ≥ 120.0 Newtons
Upper Tensile Properties ≥ 15.0 N/mm²
Lining Tear Strength ≥ 15.0 N/mm
Bonding Strength ≥ 4.0 N/mm
√ Protection with Composite Toecap (200 Joules) Result
Impact Resistance: Impact Energy: 200 ± 4 Joules, Internal Height Clearence ≥ 14mm      Compression Resistance: Compression Force: (15 ± 0.1) KN, Internal Height Clearence ≥ 14mm PASS
√ Penetration Resistance (1100 N)
Result
Penetration Resistance Force ≥ 1100 N PASS
√ Protection With Slip Resistant (SR) Result

Test Requirement : Forward Heel Slip ≥0.31 (ISO 13287:2019)

                                       Backward Heel Slip ≥0.36 (ISO 13287:2019)

PASS
Standards : EN ISO20342:2022(5.3.5) , Test floor: Ceramic tile, Lubricant: Sodium lauryl sulphate
√ Protection With Anti-Static

Result

Test Requirement : Anti-static 100KΩ-1000MΩ, Test Voltage: 100±2 V DC, Test Period: 1 Minute PASS
Standards : ENISO 20345:2022 Dry Humility (30±5) & Wet Humility (85±5)
√ Protection Resistant to Fuel Oil Result
Test Requirement : Change in Volume and Change in Hardness (Outsole) is No More Than +12%(*) PASS
Standards : ENISO 20345:2022
√ Sole Bonding Strength Test


• EN ISO 20345:2022 (Between Upper & Sole)
• Average Test Result 5.8±5 (N/mm)

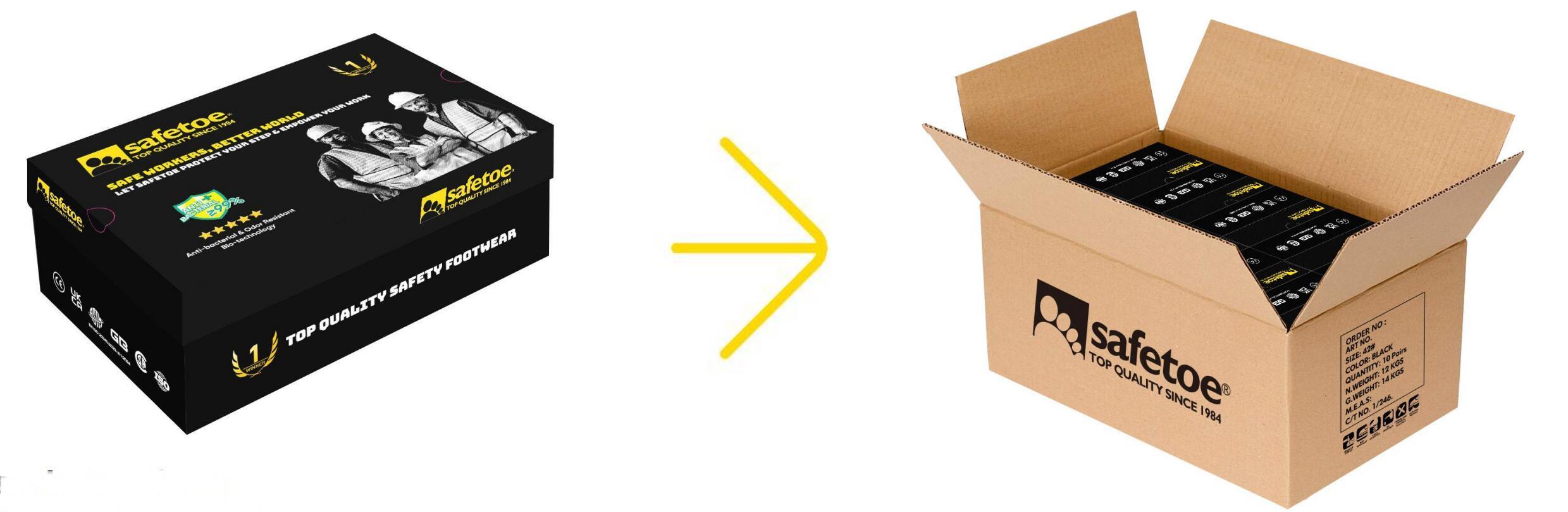

SAFETOE Standard Package Instruction (Average 42# for Reference)
Shoes Weight : 1.0-1.1 KGS /Pair Carton Weight : 11-12 KGS /Carton
1 Pair / Color Box , Dimensions : 32×21×12CM 10 Pair / Carton , Dimensions : 62×43×33CM

通用鞋盒

User Instructions:

1.) RECOMMENDED TO USE : Construction, Logistics, Mechanics, Glasses Installation, Factory Workshop, Farming, Garden, Garage etc.

2.) LIMITATION TO USE: It is very important that footwear selected must be suitable for the right workplaces. The protection against risks or hazards which are not mentioned in this document is not warranted.

3.) FITTING & SIZE: All footwear are marked with standard size on tongue label. Some are with different size comparation, such as EU size, UK size, US size etc. Please wear footwear in a suitable size Footwear which are too loose or too tight may not provide optimum level of protection.

4.) STORAGE: Keep the footwear in its original packaging, under ordinary temperature, non-humidity conditions and in clean, covered and ventilated premises.

5.) CLEANING: Clean footwear regularly by high quality cleaning treatments recommended as suitable for the purpose. Don't use caustic or corrosive cleaning agents.


画板 6画板 1画板 2画板 3画板 5画板 4
