| Size: | |
|---|---|
| Availability: | |
| Quantity: | |

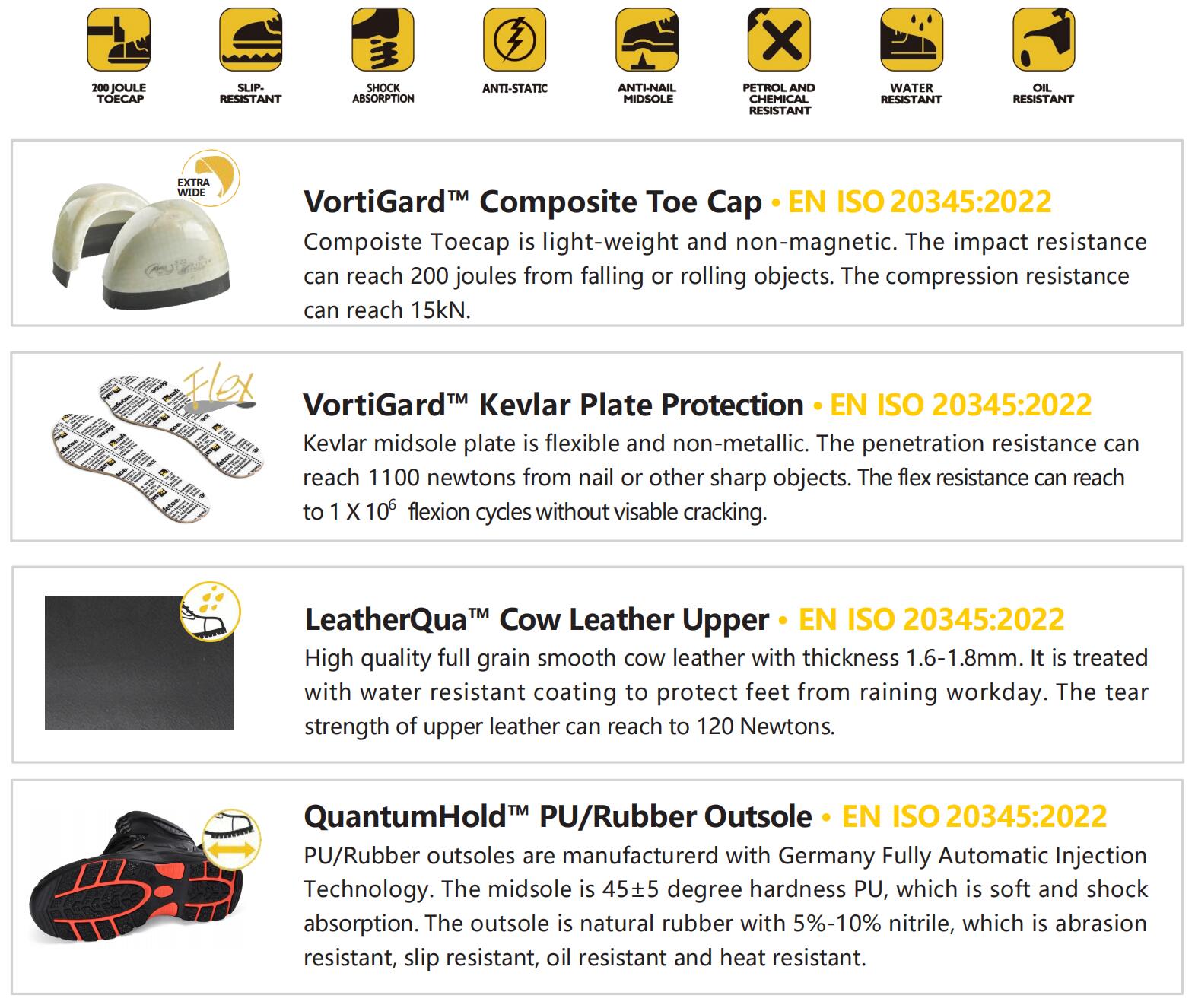

| 1. Upper : | Full Grain Smooth Cow Leather |
| 2. Lining : | Bactivoid™ Breathable Sandwich Mesh  |
| 3. Insole : | Bactivoid™ Breathable Sandwich Mesh  |
| 4. Outsole : | QuantumHold™ PU/Nitrile Rubber Injection  |
| 5. Toecap : | VortiGard™ Composite Toecap  |
| 6. Penetration : | VortiGard™ Kevlar Midsole Plate  |
| 7. Size : | EU 37-47#, UK 3-13#, US 4-14# |
| 8. Standard: | CE EN ISO 20345:2022+A1:2024 S3S SR FO CI HI HRO ASTM F2413-18 M I/75 C/75 PR SD ASTM E 2149-2020 Approved Anti-microbial Lining & Insoles (Odor Resistant)  |
| 9. Application : | Onshore Drilling Rig, Offshore Drilling Platform, Oil Field Site, Pipeline Station, Oil Refinery etc  |

| 1. Upper : | Full Grain Smooth Cow Leather |
| 2. Lining : | Bactivoid™ Breathable Sandwich Mesh  |
| 3. Insole : | Bactivoid™ Breathable Sandwich Mesh  |
| 4. Outsole : | QuantumHold™ PU/Nitrile Rubber Injection  |
| 5. Toecap : | VortiGard™ Composite Toecap  |
| 6. Penetration : | VortiGard™ Kevlar Midsole Plate  |
| 7. Size : | EU 37-47#, UK 3-13#, US 4-14# |
| 8. Standard: | CE EN ISO 20345:2022+A1:2024 S3S SR FO CI HI HRO ASTM F2413-18 M I/75 C/75 PR SD ASTM E 2149-2020 Approved Anti-microbial Lining & Insoles (Odor Resistant)  |
| 9. Application : | Onshore Drilling Rig, Offshore Drilling Platform, Oil Field Site, Pipeline Station, Oil Refinery etc  |

| √ Upper, Lining & Bonding Strength Test Result | Result |
| Leather Tear Strength ≥ | 120.0 Newtons |
| Leather Tensile Properties ≥ | 15.0 N/mm² |
| Lining Tear Strength ≥ | 15.0 N/mm |
| Bonding Strength ≥ | 4.0 N/mm |
| √ Protection with Composite Toecap (200 Joules) | Result |
| Impact Resistance: Impact Energy: 200 ± 4 Joules, Internal Height Clearence ≥ 14mm Compression Resistance: Compression Force: (15 ± 0.1) KN, Internal Height Clearence ≥ 14mm | PASS |
| √ Penetration Resistance (1100 N) |  Result |
| Penetration Resistance Force ≥ 1100 N | PASS |
| √Protection With Slip Resistant (SR) | Result |
Test Requirement : Forward Heel Slip ≥0.31 ( Test methordL ISO 13287:2019) Backward Forepart Slip ≥0.36 ( Test methordL ISO 13287:2019)  |  PASS |
Standards : EN ISO 20345:2022(5.3.5) , Test floor: Ceramic tile, Lubricant: Sodium lauryl sulphate  |  |
| √ Protection With Anti-Static | Result  |
Test Requirement : Anti-static 100KΩ-1000MΩ, Test Voltage: 100±2 V DC, Test Period: 1 Minute  |  PASS |
Standards : EN ISO 20345:2022 (6.2.2.2) Dry Humility (30±5) & Wet Humility (85±5)  |  |
| √ Protection Resistant to Fuel Oil | Result |
| Test Requirement : Change in Volume and Change in Hardness (Outsole) is No More Than +12%(*) | PASS |
Standards : EN ISO 20345:2022 (6.4.2)  |
| √ Sole Bonding Strength Test |
  |
| •EN ISO 20345:2022, 5.3 (Between Upper & Sole) | |
| • Average Test Result 5.8±5 (N/mm) |
| √ Upper, Lining & Bonding Strength Test Result | Result |
| Leather Tear Strength ≥ | 120.0 Newtons |
| Leather Tensile Properties ≥ | 15.0 N/mm² |
| Lining Tear Strength ≥ | 15.0 N/mm |
| Bonding Strength ≥ | 4.0 N/mm |
| √ Protection with Composite Toecap (200 Joules) | Result |
| Impact Resistance: Impact Energy: 200 ± 4 Joules, Internal Height Clearence ≥ 14mm Compression Resistance: Compression Force: (15 ± 0.1) KN, Internal Height Clearence ≥ 14mm | PASS |
| √ Penetration Resistance (1100 N) |  Result |
| Penetration Resistance Force ≥ 1100 N | PASS |
| √Protection With Slip Resistant (SR) | Result |
Test Requirement : Forward Heel Slip ≥0.31 ( Test methordL ISO 13287:2019) Backward Forepart Slip ≥0.36 ( Test methordL ISO 13287:2019)  |  PASS |
Standards : EN ISO 20345:2022(5.3.5) , Test floor: Ceramic tile, Lubricant: Sodium lauryl sulphate  |  |
| √ Protection With Anti-Static | Result  |
Test Requirement : Anti-static 100KΩ-1000MΩ, Test Voltage: 100±2 V DC, Test Period: 1 Minute  |  PASS |
Standards : EN ISO 20345:2022 (6.2.2.2) Dry Humility (30±5) & Wet Humility (85±5)  |  |
| √ Protection Resistant to Fuel Oil | Result |
| Test Requirement : Change in Volume and Change in Hardness (Outsole) is No More Than +12%(*) | PASS |
Standards : EN ISO 20345:2022 (6.4.2)  |
| √ Sole Bonding Strength Test |
  |
| •EN ISO 20345:2022, 5.3 (Between Upper & Sole) | |
| • Average Test Result 5.8±5 (N/mm) |
| SAFETOE Standard Package Instruction (Average 42# for Reference) | |
| Shoes Weight : 1.3-1.4 KGS /Pair | Carton Weight : 14-15 KGS /Carton |
| 1 Pair / Color Box , Dimensions : 32×24×12CM | 10 Pair / Carton , Dimensions : 62×49×33CM |

User Instructions:
1.) RECOMMENDED TO USE : Construction, Logistics, Mechanics, Glasses Installation, Workshop, Farming, Garden, Oil & Gas, Chemical Factory etc.
2.) LIMITATION TO USE: It is very important that footwear selected must be suitable for the right workplaces. The protection against risks or hazards which are not mentioned in this document is not warranted.
3.) FITTING & SIZE: All footwear are marked with standard size on tongue label. Some are with different size comparation, such as EU size, UK size, US size etc. Please wear footwear in a suitable size Footwear which are too loose or too tight may not provide optimum level of protection.
4.) STORAGE: Keep the footwear in its original packaging, under ordinary temperature, non-humidity conditions and in clean, covered and ventilated premises.
5.) CLEANING: Clean footwear regularly by high quality cleaning treatments recommended as suitable for the purpose. Don't use caustic or corrosive cleaning agents.
| SAFETOE Standard Package Instruction (Average 42# for Reference) | |
| Shoes Weight : 1.3-1.4 KGS /Pair | Carton Weight : 14-15 KGS /Carton |
| 1 Pair / Color Box , Dimensions : 32×24×12CM | 10 Pair / Carton , Dimensions : 62×49×33CM |

User Instructions:
1.) RECOMMENDED TO USE : Construction, Logistics, Mechanics, Glasses Installation, Workshop, Farming, Garden, Oil & Gas, Chemical Factory etc.
2.) LIMITATION TO USE: It is very important that footwear selected must be suitable for the right workplaces. The protection against risks or hazards which are not mentioned in this document is not warranted.
3.) FITTING & SIZE: All footwear are marked with standard size on tongue label. Some are with different size comparation, such as EU size, UK size, US size etc. Please wear footwear in a suitable size Footwear which are too loose or too tight may not provide optimum level of protection.
4.) STORAGE: Keep the footwear in its original packaging, under ordinary temperature, non-humidity conditions and in clean, covered and ventilated premises.
5.) CLEANING: Clean footwear regularly by high quality cleaning treatments recommended as suitable for the purpose. Don't use caustic or corrosive cleaning agents.
