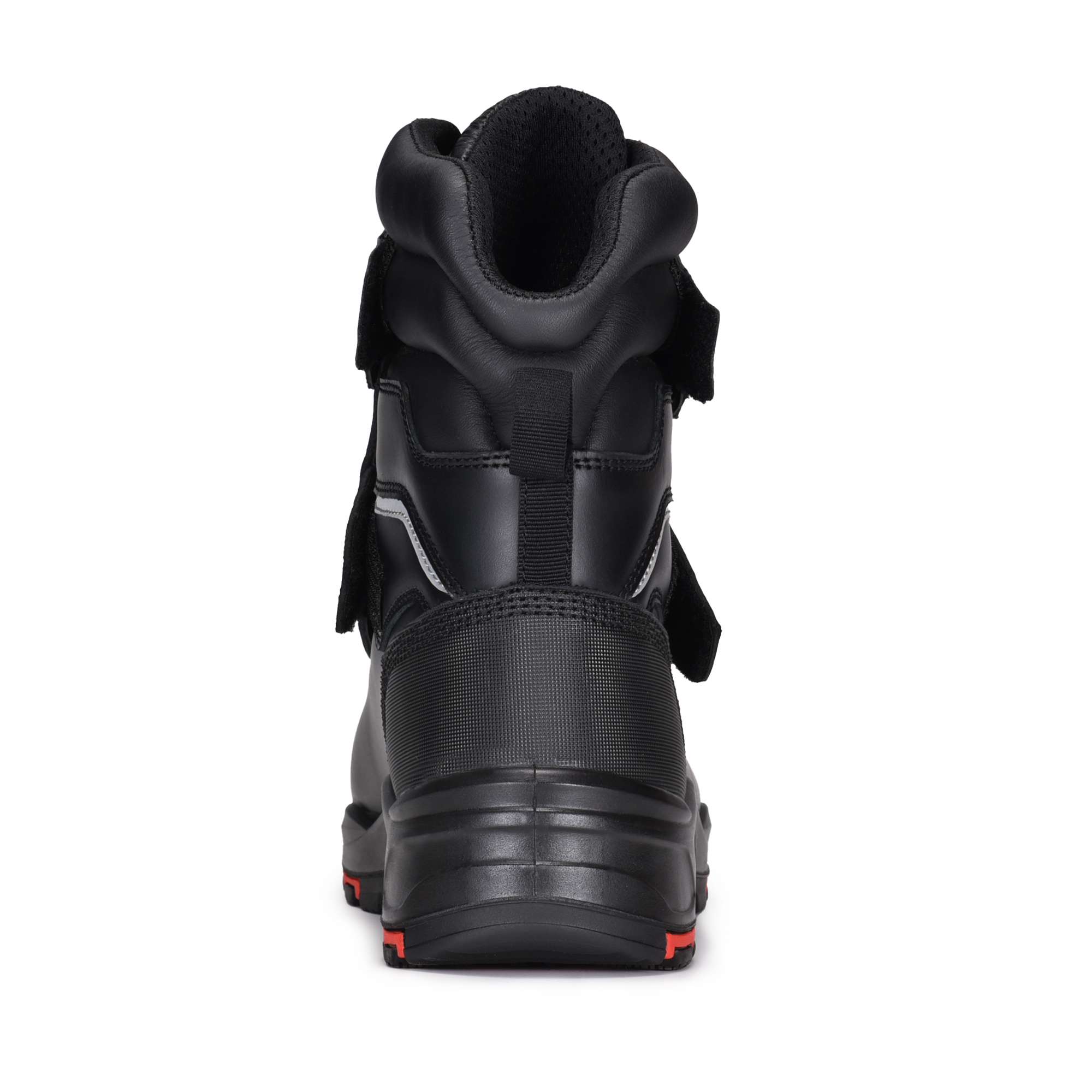

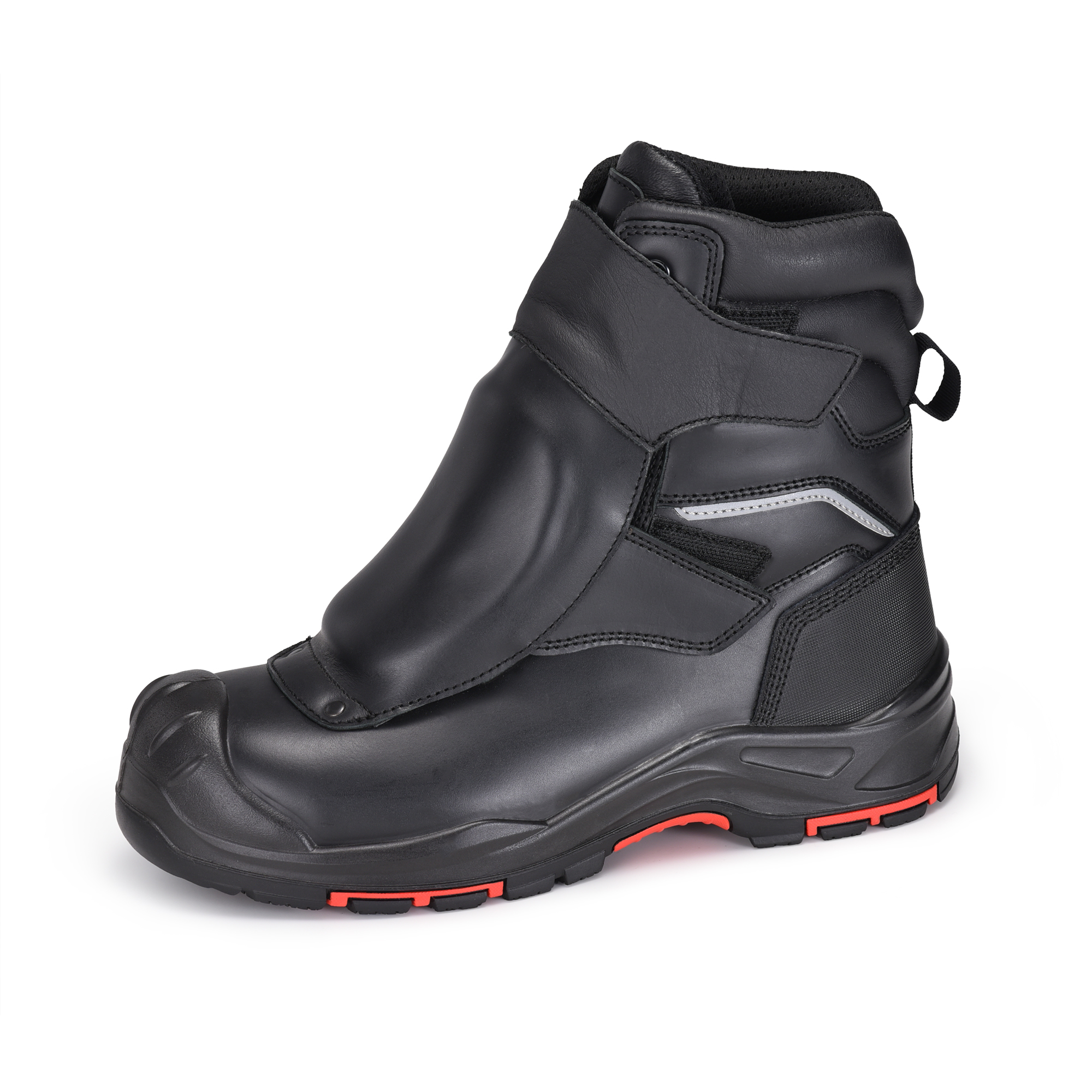

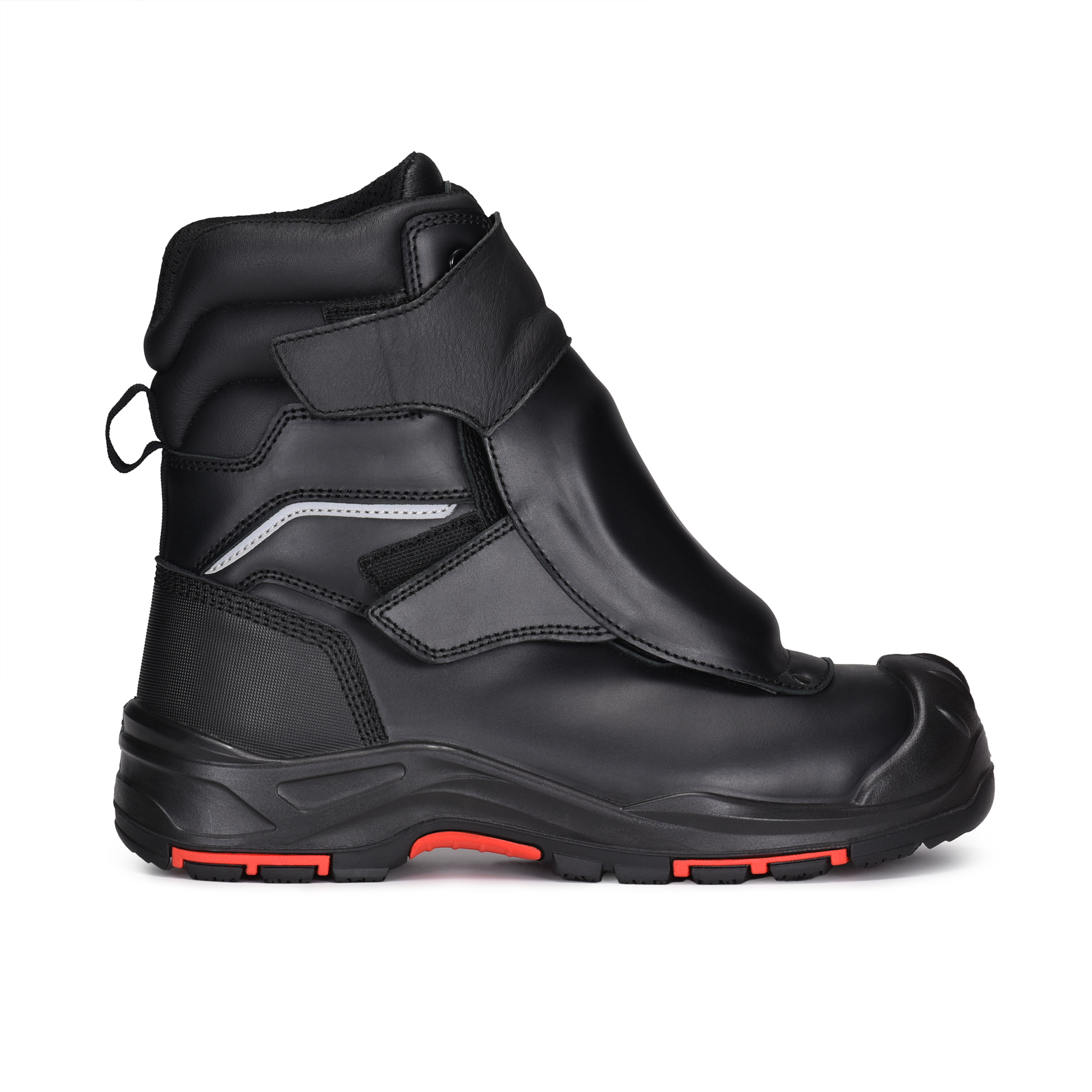

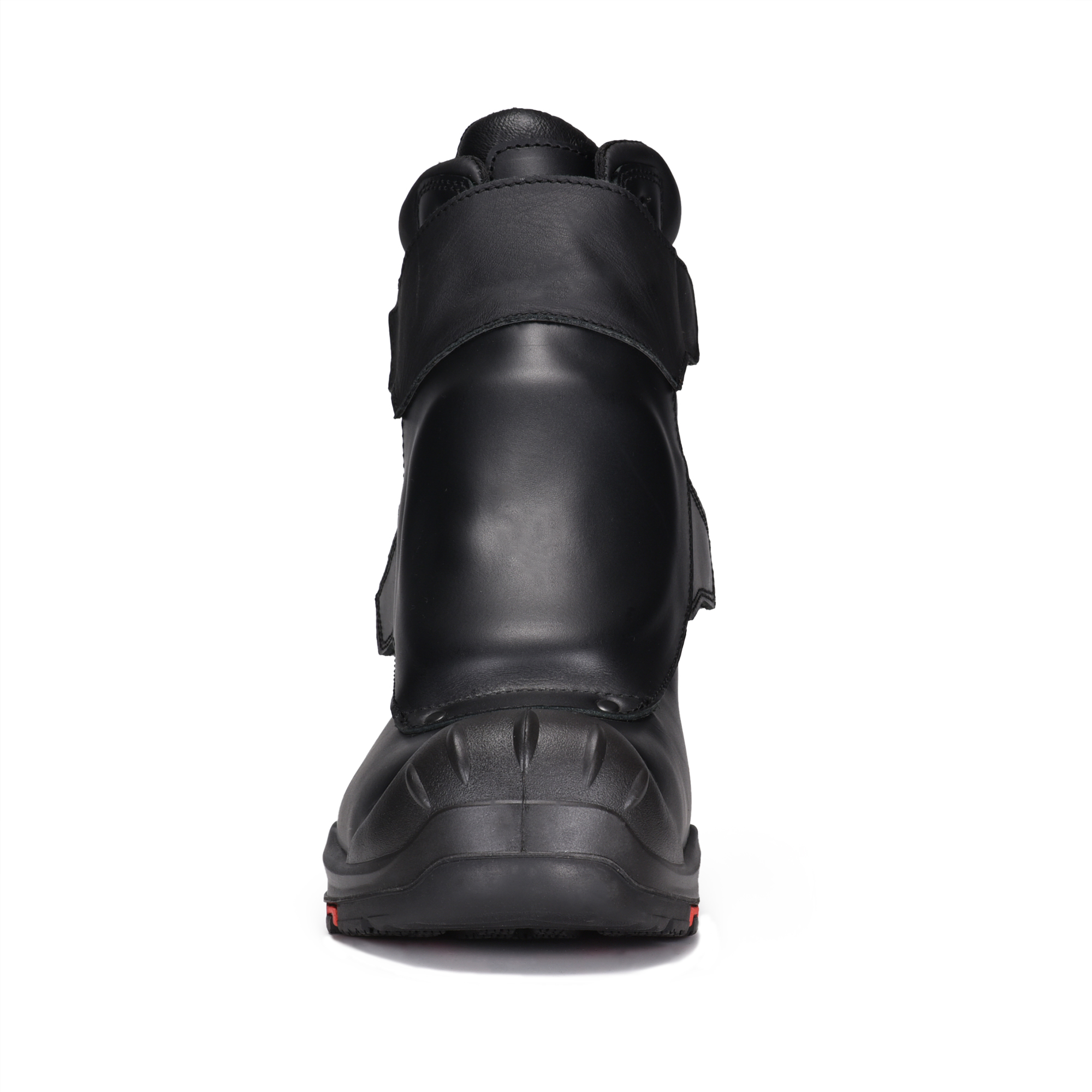

Foundry Welding Smelting Safety Work Boots For Metallurgical Industry H-9552FD

Size:
Availability:
Quantity:
1. Upper :

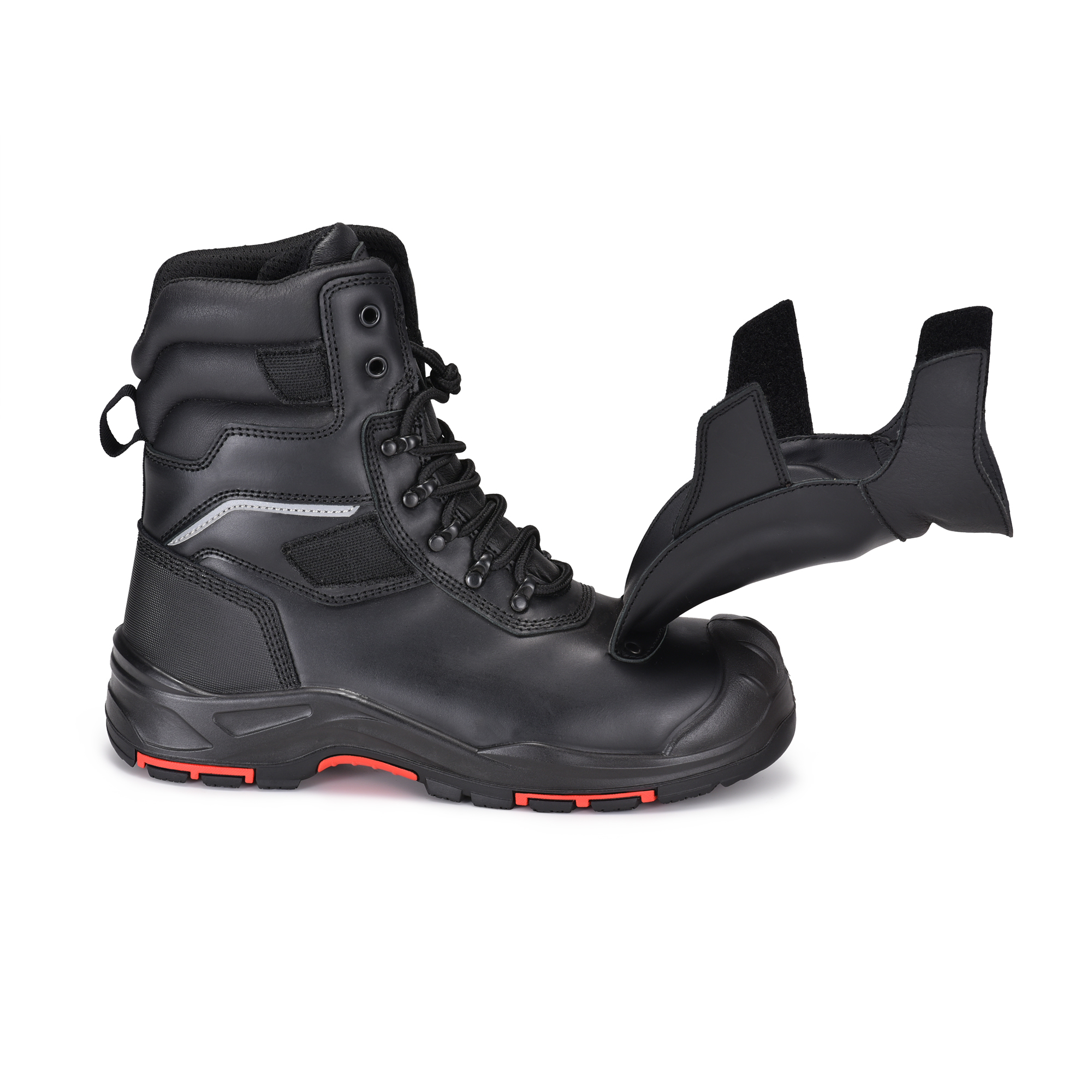

Full Grain Cow Leather + Anti-Sparkle Leather Cover

+ Metatarsal Protection

2. Lining 1:

Fire-resistant Kelvar Stitching

3. Lining 2:

BactiVoid™ Beathable Sandwich Mesh

4. Insole :

Anti-fatigue Memory Foam Insoles

5. Outsole :

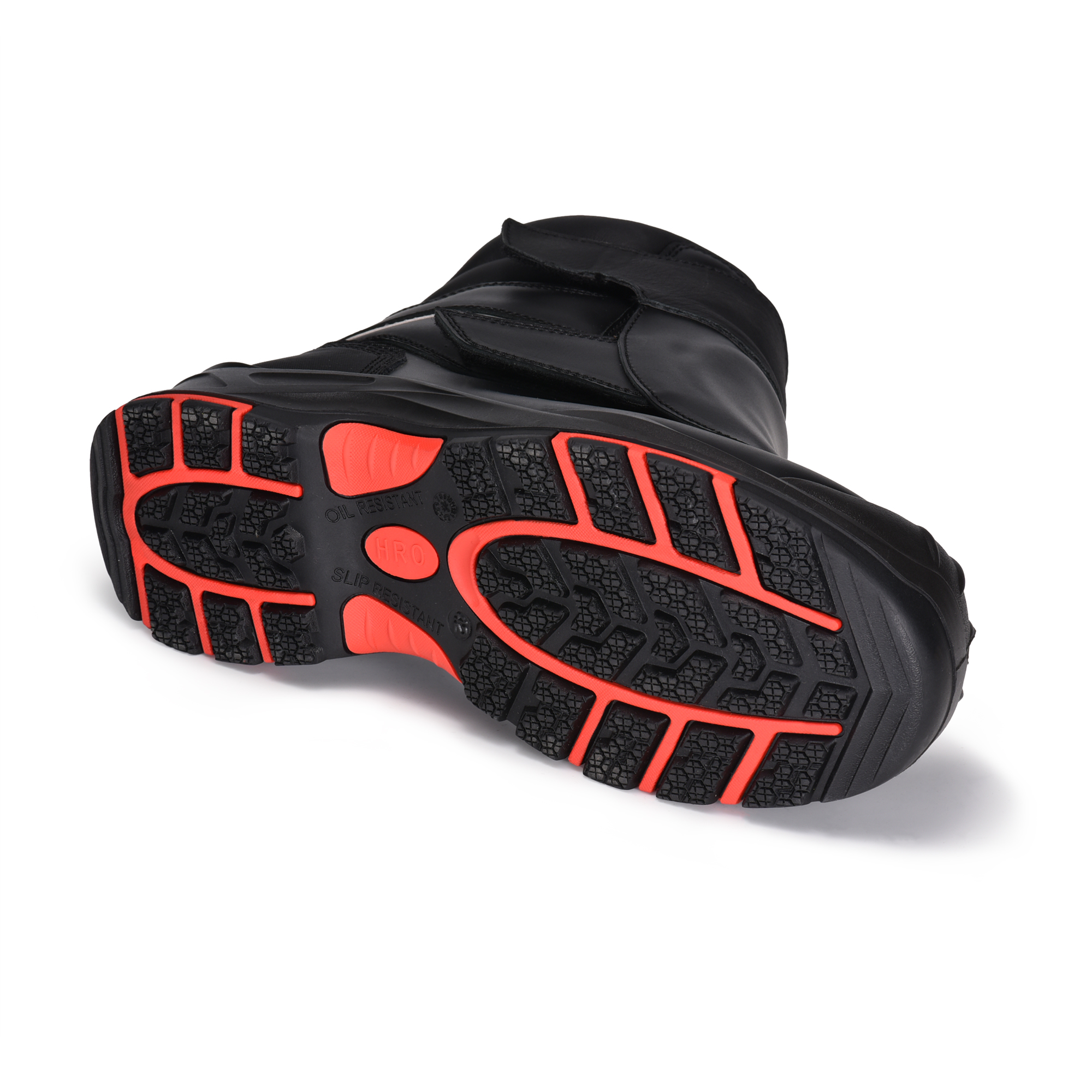

QuantumHold™ PU/Nitrile Rubber Injection

6. Toecap :

VortiGard™ Composite Toecap

7. Penetration :

VortiGard™ Kevlar Midsole Plate

8. Size : EU 37-47#, UK 3-13#, US 4-14#
9. Standard:

EN ISO 20345:2022+A1:2024 S3S SR FO CI HI HRO MP

EN ISO 20349-1:2017+A1:2020

ASTM F2413-24 M I/75 C/75 PR SD

ASTM E 2149-2020 Approved Anti-bacteria Lining & Insoles (Odor Resistant)

10. Application :

Welding, Metal Cutting, Smelting, Mining, Construction, Mechanics, Oil & Gas Industry etc

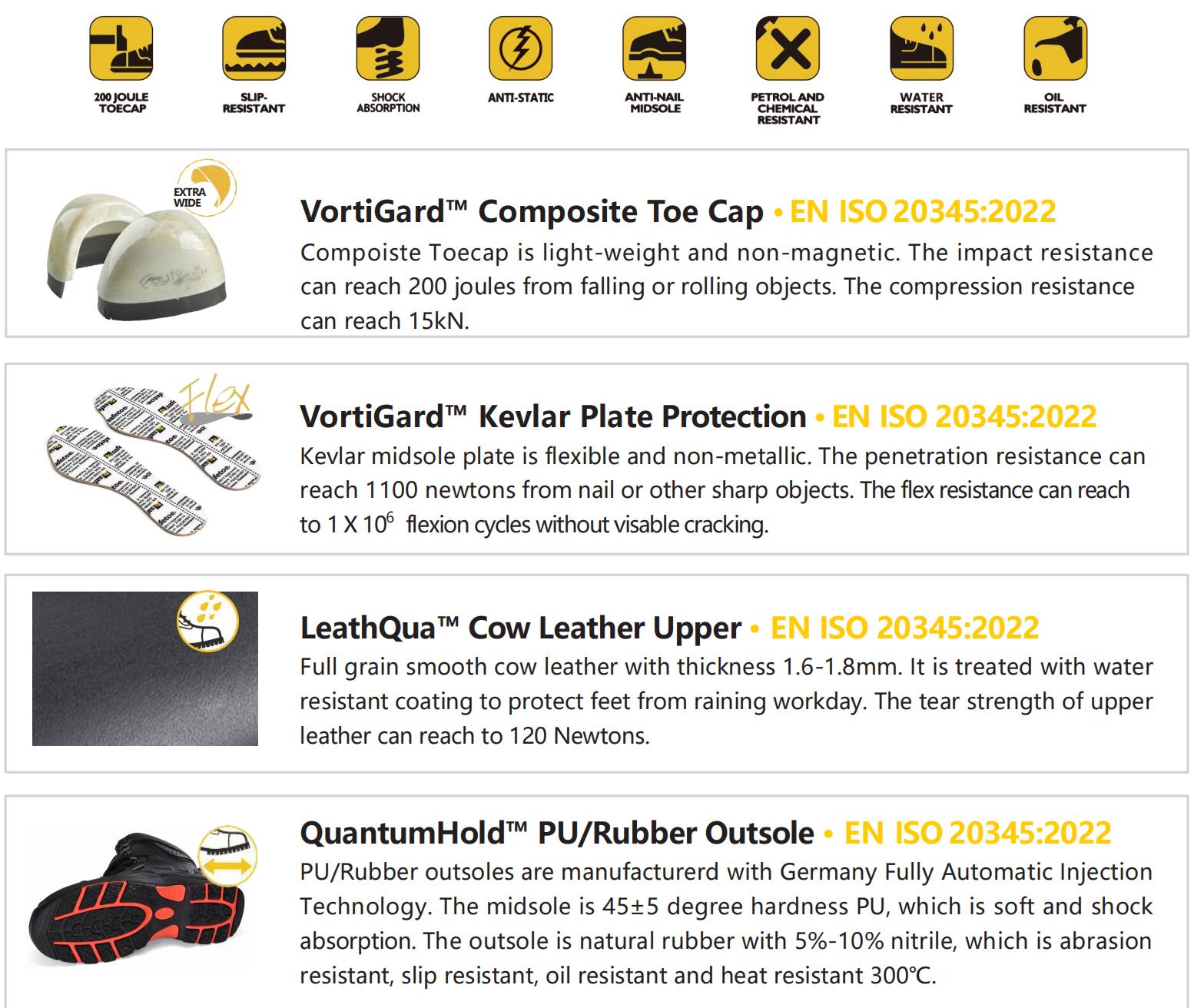

H-9552 FD date


Upper, Lining & Bonding Strength Test Result Result
Leather Tear Strength ≥ 120.0 Newtons
Leather Tensile Properties ≥ 15.0 N/mm²
Lining Tear Strength ≥ 15.0 N/mm
Bonding Strength ≥ 4.0 N/mm
√ Protection with Composite Toecap (200 Joules) Result
Impact Resistance: Impact Energy: 200 ± 4 Joules, Internal Height Clearence ≥ 14mm      Compression Resistance: Compression Force: (15 ± 0.1) KN, Internal Height Clearence ≥ 14mm PASS
√ Penetration Resistance (1100 N)
Result
Penetration Resistance Force ≥ 1100 N PASS
√ Protection With Molten Metal Splashes Result

Test Requirement : Number of droplets required to produce a temperature rise of 40℃

                                    Molten Metal Splashes > 25 drops

PASS

Standards : EN ISO 20349-2:2017+A1:2020


√ Protection Against Burning Behaviour

Result

Test Requirement : After-flame time ≤ 2s &  After-glow time ≤ 2s & No Split Seams

PASS

Standards :  EN ISO 20349-2:2017+A1:2020 (7.4),  EN 15090:2012 (6.3.3 & 7.3)


√ Protection Against Heat Risk 300℃    Result

Test Requirement : The Outsole Did Not Melt & Did Not Develop Any Cracks When Bent Aound Mandrel

PASS

Standards :  EN ISO 20345:2022(6.4.1). 300℃    HRO=Heat Resistant



√ Sole Bonding Strength Test

Bonding Strength Test Report

EN ISO 20345:2022, 5.3 (Between Upper & Sole)
• Average Test Result 5.8±5 (N/mm)


SAFETOE Standard Package Instruction (Average 42# for Reference)
Shoes Weight : 1.4-1.5 KGS /Pair  Carton Weight : 15-16 KGS /Carton
1 Pair / Color Box , Dimensions : 32×28×12CM 10 Pair / Carton , Dimensions : 62×57×33CM

电焊


User Instructions:

1) RECOMMENDED TO USE: Mechanics, Construction, Logistics, Workshop, Farming, Glasses Installation, Garden, Oil & Gas, Chemical Factory, etc.

2) LIMITATION TO USE: The selected footwear must be suitable for the right workplaces. The protection against risks or hazards which are not mentioned in this document is not warranted.

3) FITTING & SIZE: All footwear is marked with standard size on the tongue label. Some are with different size comparisons, such as EU size, UK size, US size, etc. Please wear footwear in a suitable size Footwear that is too loose or too tight may not provide the optimum level of protection.

4) STORAGE: Keep the footwear in its original packaging, under ordinary temperature, non-humidity conditions, and in clean, covered, and ventilated premises.

5) CLEANING: Clean footwear regularly with high-quality cleaning treatments recommended as suitable for the purpose. Don't use caustic or corrosive cleaning agents.

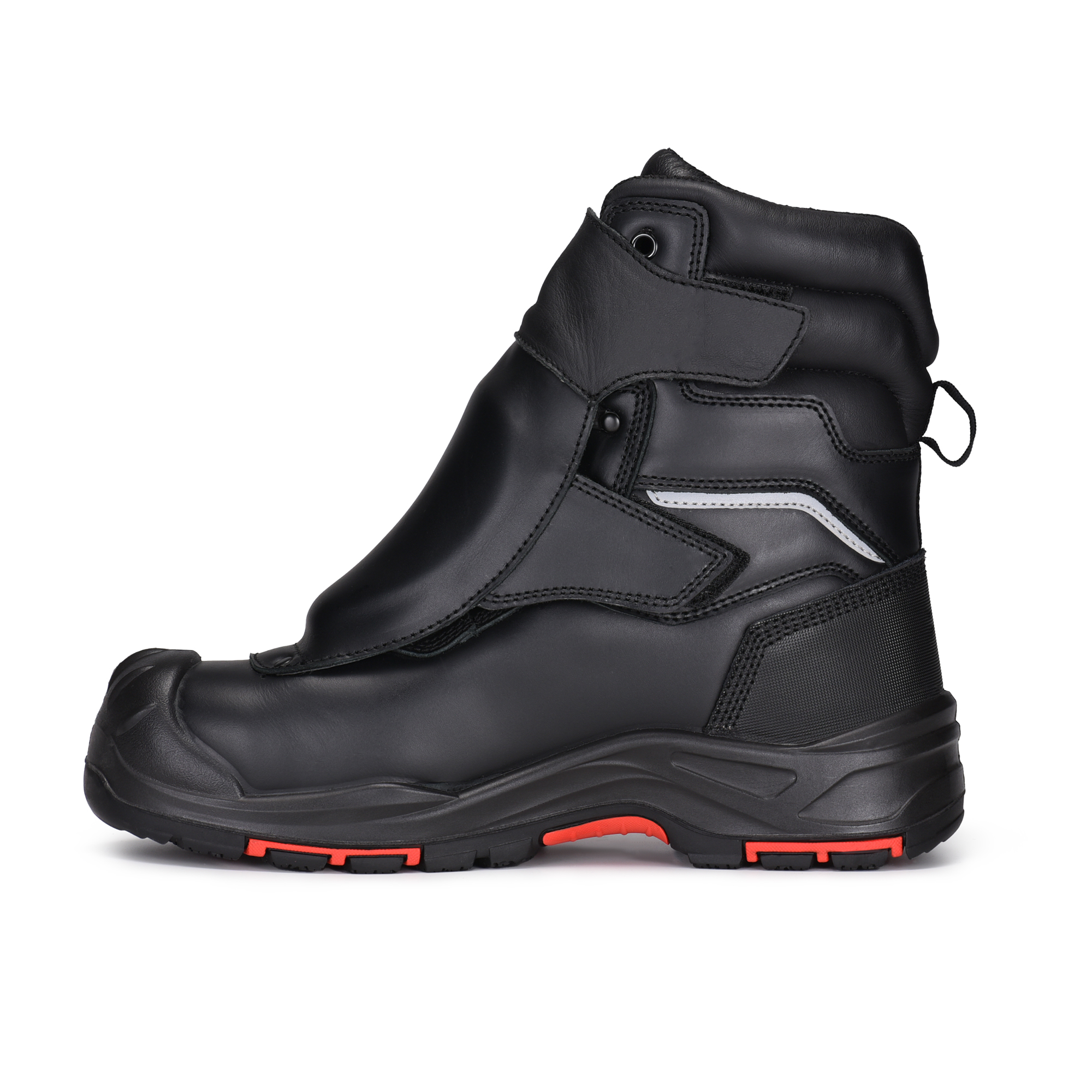

DSC_7961DSC_7962DSC_8035DSC_8036DSC_8037DSC_8038DSC_8039
