Construction Boots Buliders Safety Boots with Steel Toe H-9430 Brown

Size:
Availability:
Quantity:

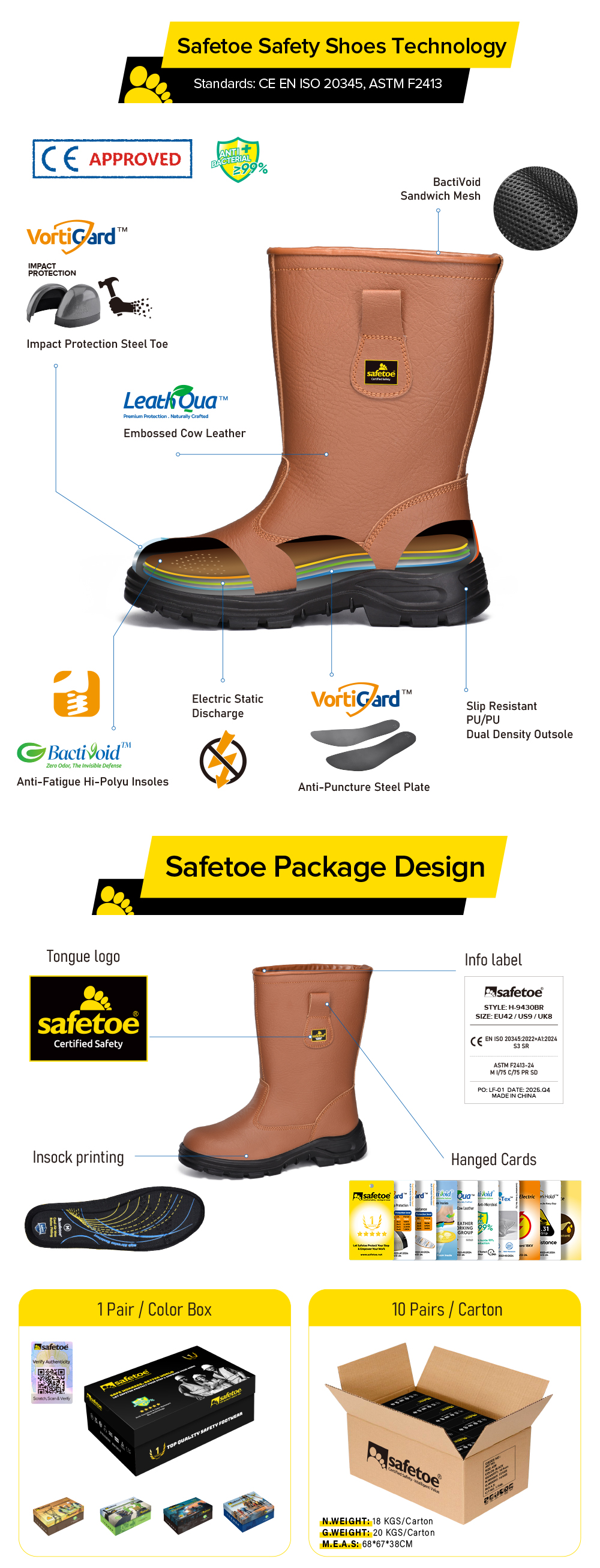

1. Upper :

Brown Palm-Embossed Cow Leather

2. Lining :

BactiVoid™ Breathable Sandwich Mesh

3. Insole :

Soft Hi-polyu Insoles

4. Outsole :

QuantumHold™ PU/Nitrile Rubber Injection

5. Toecap :

VortiGard™ Steel Toecap

6. Penetration :

VortiGard™ Steel Midsole Plate

7. Size : EU 37-47#, UK 3-13#, US 4-14#
8. Standard:

CE EN ISO 20345:2022+A1:2024 S3 SR CI FO HRO

ASTM E 2149-2020 Approved Anti-bacterial Lining & Insole (Odor Resistant)

9. Application :

Construction & Building, Civil Engineering, Structural Work, Mechanical Work, Maintenance etc



H-9430 Brown 数据

Upper, Lining & Bonding Strength Test Result Result
Leather Tear Strength ≥ 120.0 Newtons
Leather Tensile Properties ≥ 15.0 N/mm²
Lining Tear Strength ≥ 15.0 N/mm
Bonding Strength ≥ 4.0 N/mm
√ Protection with Steel Toecap (200 Joules) Result
Impact Resistance: Impact Energy: 200 ± 4 Joules, Internal Height Clearence ≥ 14mm      Compression Resistance: Compression Force: (15 ± 0.1) KN, Internal Height Clearence ≥ 14mm PASS
√ Penetration Resistance (1100 N)
Result
Penetration Resistance Force ≥ 1100 N PASS
√ Protection With Slip Resistant (SR) Result

Test Requirement :  Forward Heel Slip ≥0.31 (ISO 13287:2019)

                                       Backward Heel Slip ≥0.36  (ISO 13287:2019)

PASS

Standards : EN ISO 20342:2022(5.3.5) , Test floor: Ceramic tile, Lubricant: Sodium lauryl sulphate


√ Protection With Anti-Static

Result

Test Requirement : Anti-static 100KΩ-1000MΩ, Test Voltage: 100±2 V DC, Test Period: 1Minute PASS
Standards :  EN ISO 20345:2022 (6.2.2.2)  Dry Humility (30±5) & Wet Humility (85±5)
√ Protection Resistant to Fuel Oil Result
Test Requirement : Change in Volume and Change in Hardness (Outsole) is No More Than +12%(*) PASS

Standards :  EN ISO 20345:2022 (6.4.2)



√ Sole Bonding Strength Test

warm safety boots test chart

• EN ISO 20345:2022, 5.3 (Between Upper & Sole)
• Average Test Result 5.8±5 (N/mm)

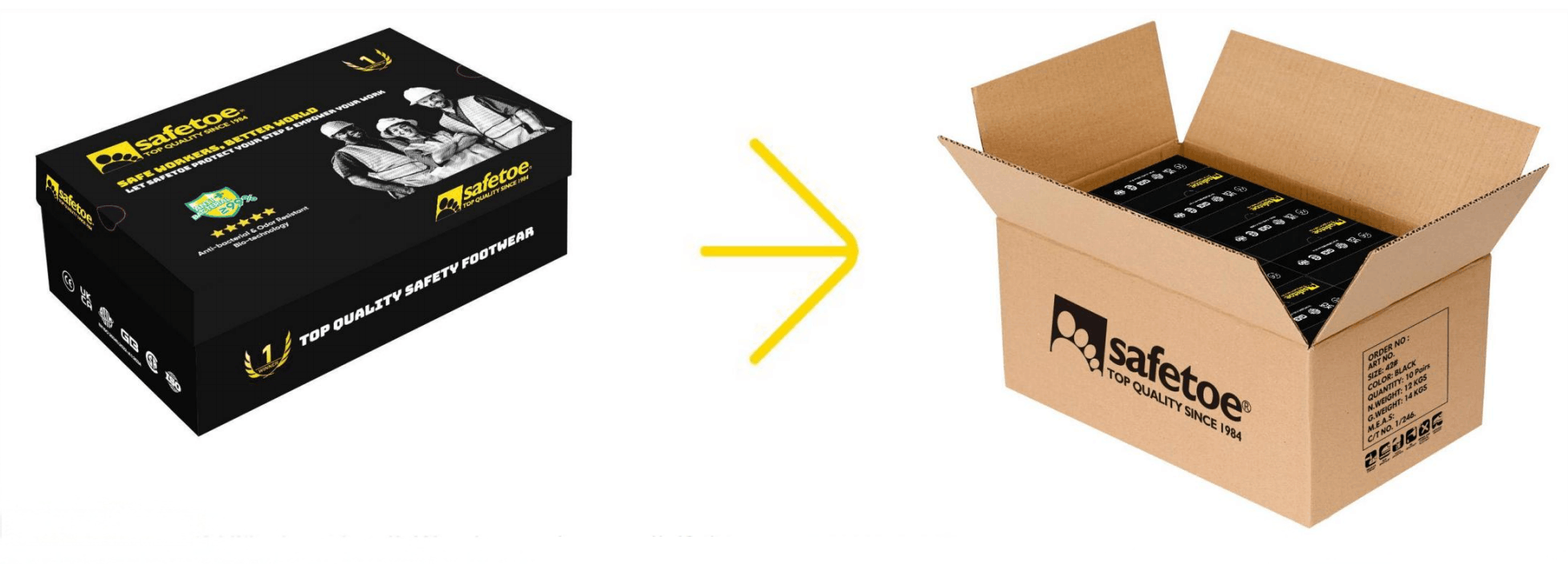

SAFETOE Standard Package Instruction (Average 42# for Reference)
Shoes Weight : 1.4-1.5 KGS /Pair  Carton Weight : 15-16 KGS /Carton
1 Pair / Color Box , Dimensions : 32×30×12CM 10 Pair / Carton , Dimensions : 62×62×33CM

通用


User Instructions:

1) RECOMMENDED TO USE: Mechanics, Construction, Logistics, Workshop, Farming, Glasses Installation, Garden, Oil & Gas, Chemical Factory, etc.

2) LIMITATION TO USE: The selected footwear must be suitable for the right workplaces. The protection against risks or hazards which are not mentioned in this document is not warranted.

3) FITTING & SIZE: All footwear is marked with standard size on the tongue label. Some are with different size comparisons, such as EU size, UK size, US size, etc. Please wear footwear in a suitable size Footwear that is too loose or too tight may not provide the optimum level of protection.

4) STORAGE: Keep the footwear in its original packaging, under ordinary temperature, non-humidity conditions, and in clean, covered, and ventilated premises.

5) CLEANING: Clean footwear regularly with high-quality cleaning treatments recommended as suitable for the purpose. Don't use caustic or corrosive cleaning agents.


H-9430 brown_画板 1H-9430 brown_画板 1 副本H-9430 brown_画板 1 副本 5H-9430 brown_画板 1 副本 2
