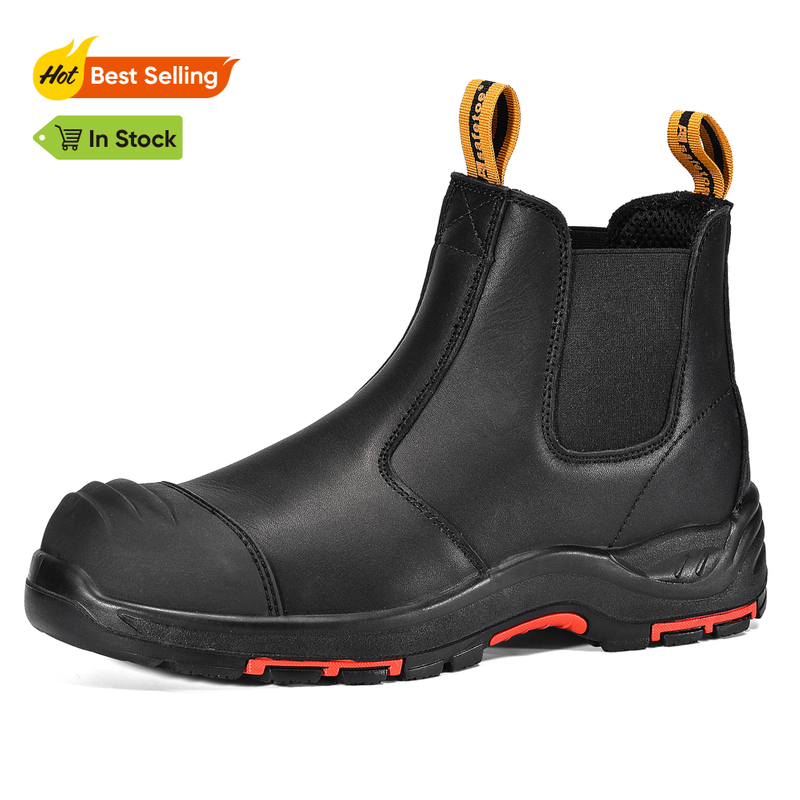

ASTM Certified Insulated Safety Composite Toe Waterproof Pull on Work Boots

Size:
Availability:
Quantity:
1. Upper :

Full Grain Smooth Cow Leather+TPU Protector

2. Lining :

BactiVoid™ Breathable Sandwich Mesh

3. Insole :

Anti-fatigue Memory Foam Insoles

4. Outsole :

QuantumHold™ PU/Nitrile Rubber Injection

5. Toecap :

VortiGard™ Composite Toecap

6. Penetration :

VortiGard™ Kevlar Midsole Plate

7. Size : EU 37-47#, UK 3-13#, US 4-14#
8. Standard:

CE EN ISO 20345:2022+A1:2024 SBP FO SR CI HI HRO

ASTM F2413-24 M I/75 C/75 PR EH

ASTM E 2149-2020 Approved Anti-microbial Lining & Insoles (Odor Resistant)

9. Application :

Electrical Power Industry, Electric Equipment Maintenance, Construction & Civil Engineering  etc

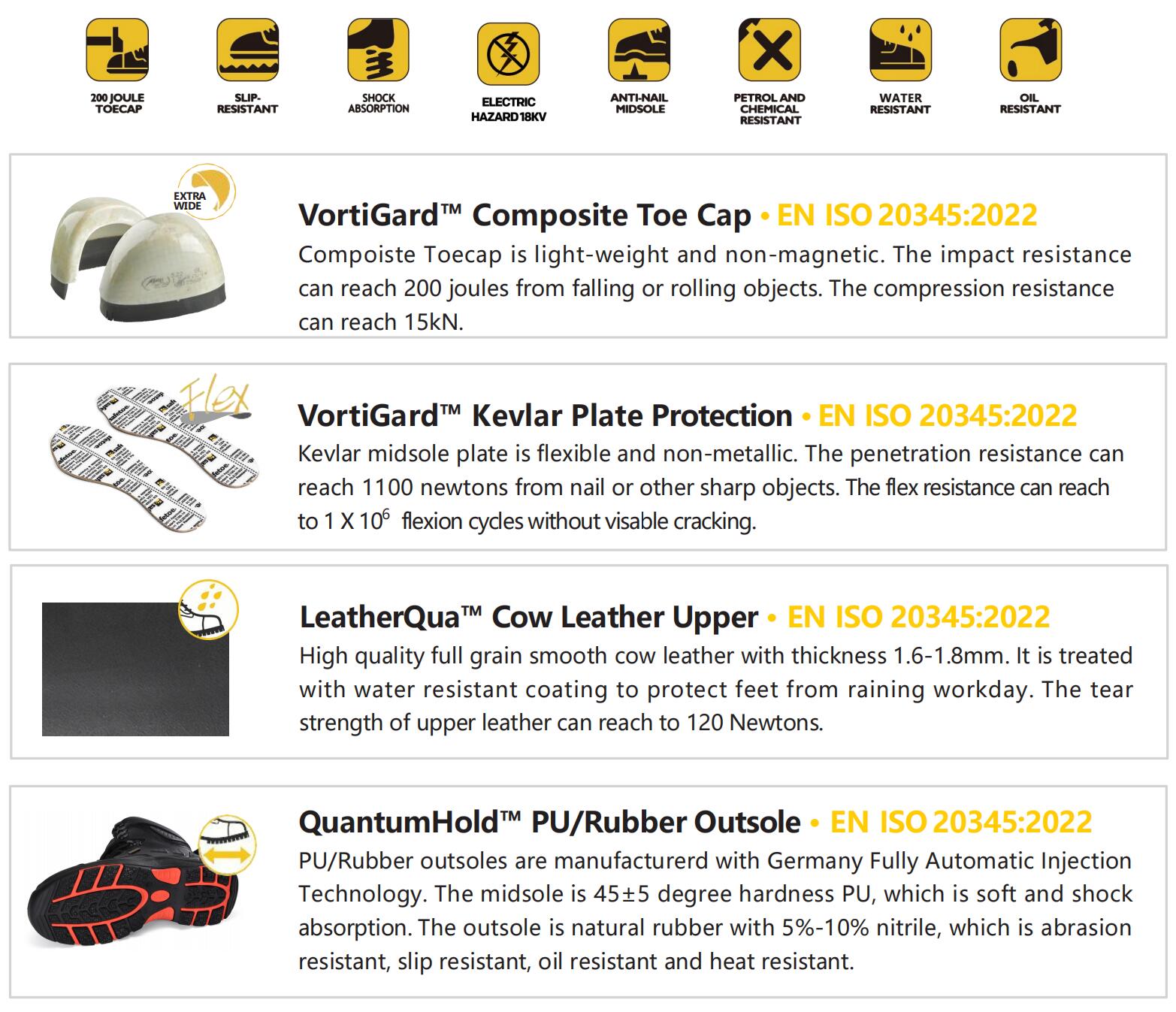

M-8025NB EH bLACK DATE

Upper, Lining & Bonding Strength Test Result Result
Leather Tear Strength ≥ 120.0 Newtons
Leather Tensile Properties ≥ 15.0 N/mm²
Lining Tear Strength ≥ 15.0 N/mm
Bonding Strength ≥ 4.0 N/mm
√ Protection with Safety Toecap (200 Joules) Result
Impact Resistance: Impact Energy: 200 ± 4 Joules, Internal Height Clearence ≥ 14mm      Compression Resistance: Compression Force: (15 ± 0.1) KN, Internal Height Clearence ≥ 14mm PASS
√ Penetration Resistance (1100 N)
Result
Penetration Resistance Force ≥ 1100 N PASS
√ Protection With Slip Resistant (SR) Result

Test Requirement : Forward Heel Slip ≥0.31 ( Test methordL ISO 13287:2019)

                                       Backward Forepart Slip ≥0.36  ( Test methordL ISO 13287:2019)

PASS

Standards : EN ISO 20345:2022(5.3.5) ,  Test floor: Ceramic tile, Lubricant: Sodium lauryl sulphate


√ Protection Against Electric Hazard (EH 18KV)

Result

Test Requirement : Test Voltage 18KV, Test Period 1 Minute, Leakage Current ≤ 1.0mA

PASS

Standards :  ASTM F2412-18a, Clause 9


√ Protection Resistant to Fuel Oil (FO) Result

Test Requirement : Change in Volume and Change in Hardness (Outsole) is No More Than +12%(*)

PASS

Standards :  EN ISO 20345:2022  (6.4.2)



√ Sole Bonding Strength Test


EN ISO 20345:2022, 5.3 (Between Upper & Sole
• Average Test Result 5.8±5 (N/mm)


SAFETOE Standard Package Instruction (Average 42# for Reference)
Shoes Weight : 1.3-1.4 KGS /Pair  Carton Weight : 14-15 KGS /Carton
1 Pair / Color Box , Dimensions : 32×24×12CM 10 Pair / Carton , Dimensions : 62×49×33CM

鞋盒

User Instructions:

1.) RECOMMENDED TO USE : Construction, Logistics, Mechanics, Glasses Installation, Factory Workshop, Farming, Garden, Garage etc.

2.) LIMITATION TO USE: It is very important that footwear selected must be suitable for the right workplaces. The protection against risks or hazards which are not mentioned in this document is not warranted.

3.) FITTING & SIZE: All footwear are marked with standard size on tongue label. Some are with different size comparation, such as EU size, UK size, US size etc. Please wear footwear in a suitable size Footwear which are too loose or too tight may not provide optimum level of protection.

4.) STORAGE: Keep the footwear in its original packaging, under ordinary temperature, non-humidity conditions and in clean, covered and ventilated premises.

5.) CLEANING: Clean footwear regularly by high quality cleaning treatments recommended as suitable for the purpose. Don't use caustic or corrosive cleaning agents.



M-8025NBK画板 2画板 5画板 4画板 6通用-鞋垫画板 3
