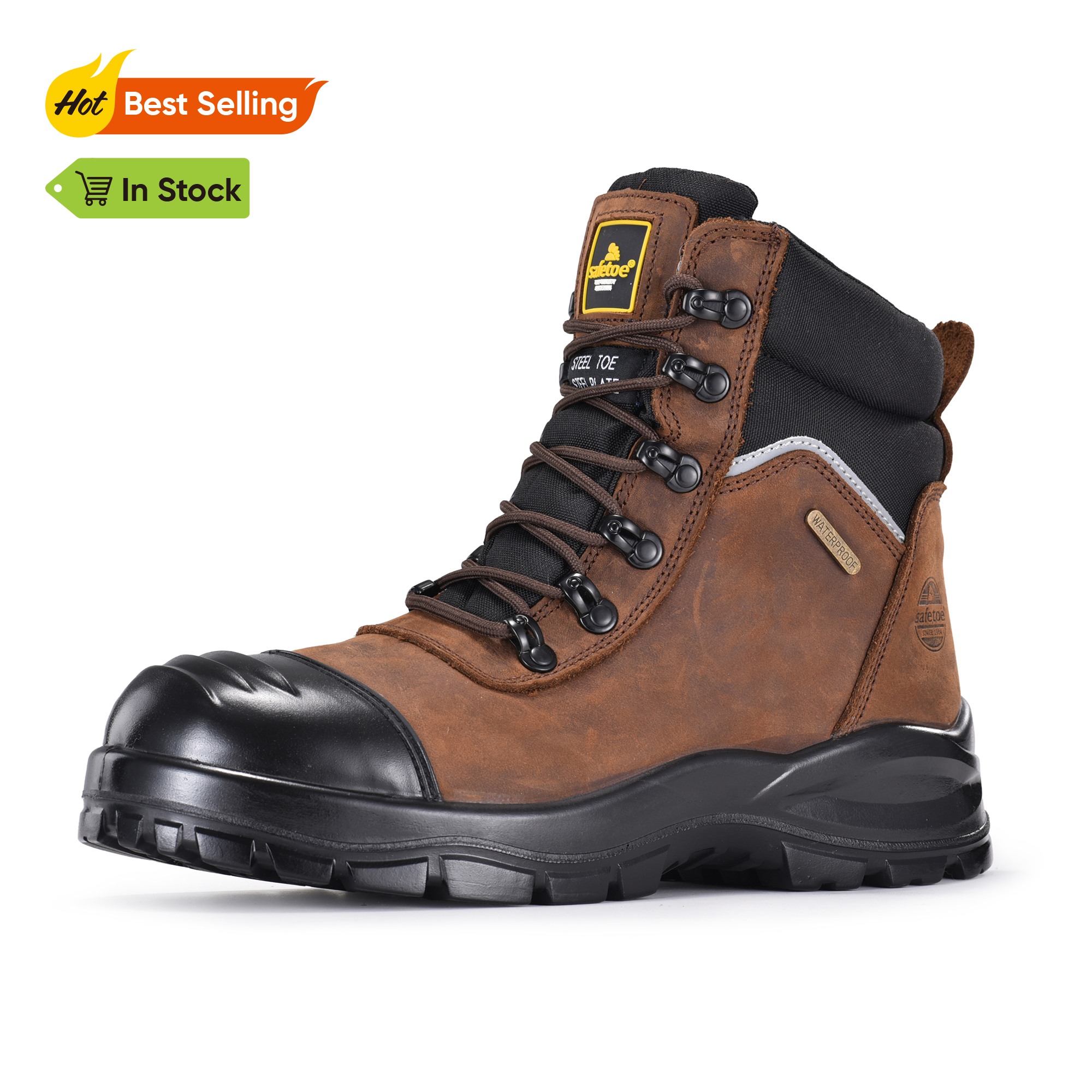

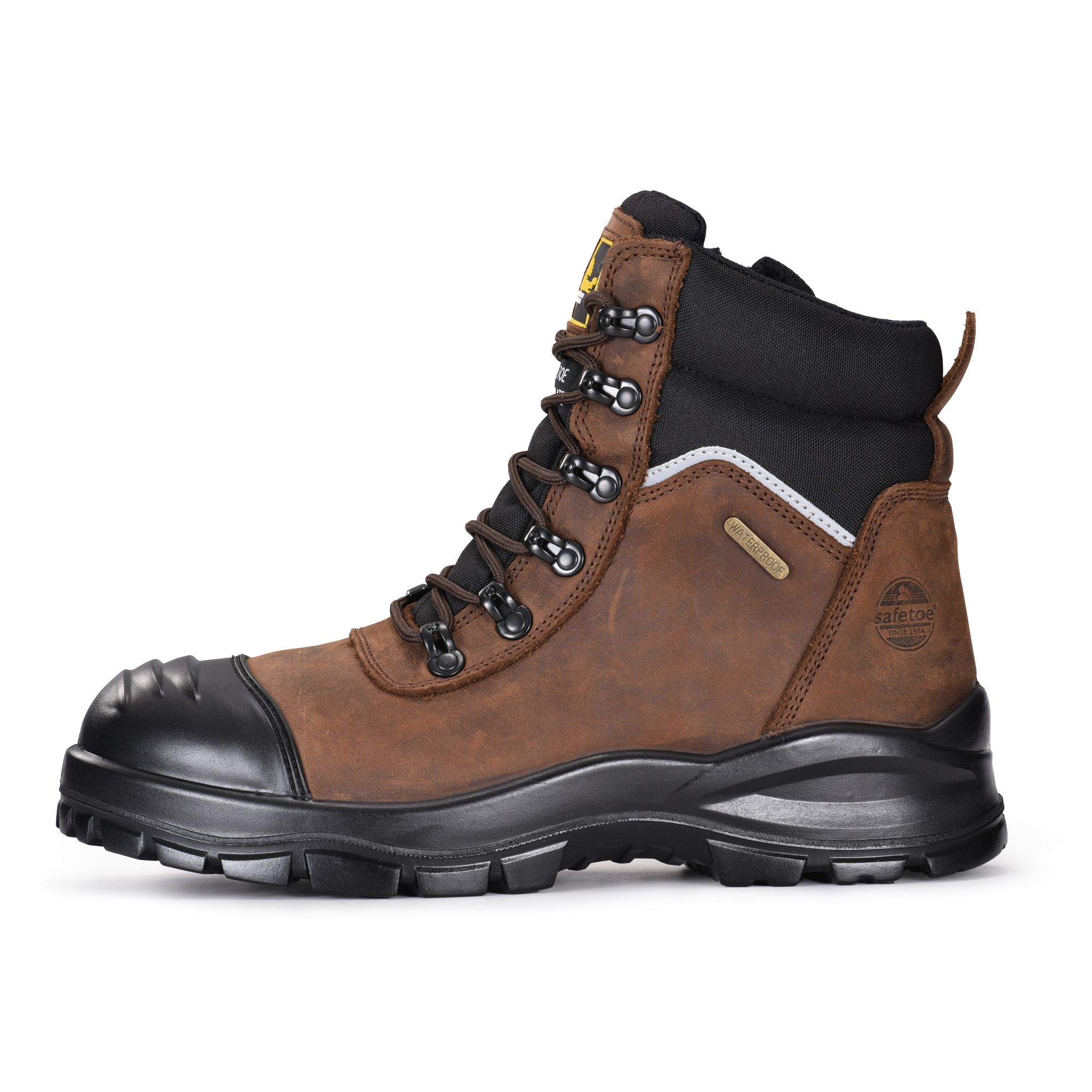

AS/NZS 2210 Composite Toe Safety Work Boots Waterproof Membrane M-8577 Brown

Size:
Availability:
Quantity:
1. Upper :

Full Grain Crazy Horse Cow Nubuck Leather

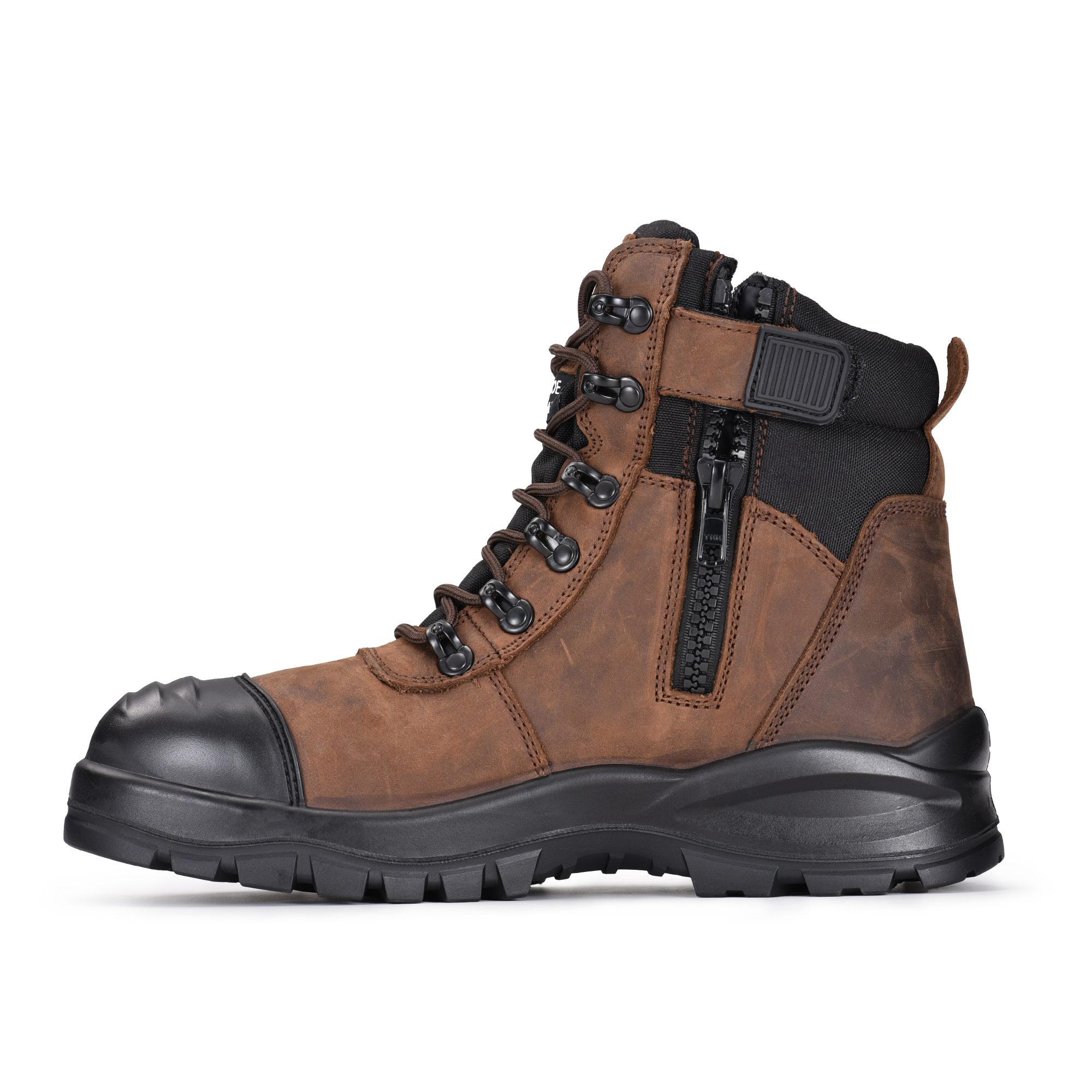

2. Zip:

YKK Zip at Inner Side for Fast Wear & Release

3. Lining :

Sanvlar-Tex™ Water Resistant Membrane

4. Insole :

Anti-Fatigue Memory Foam Insoles

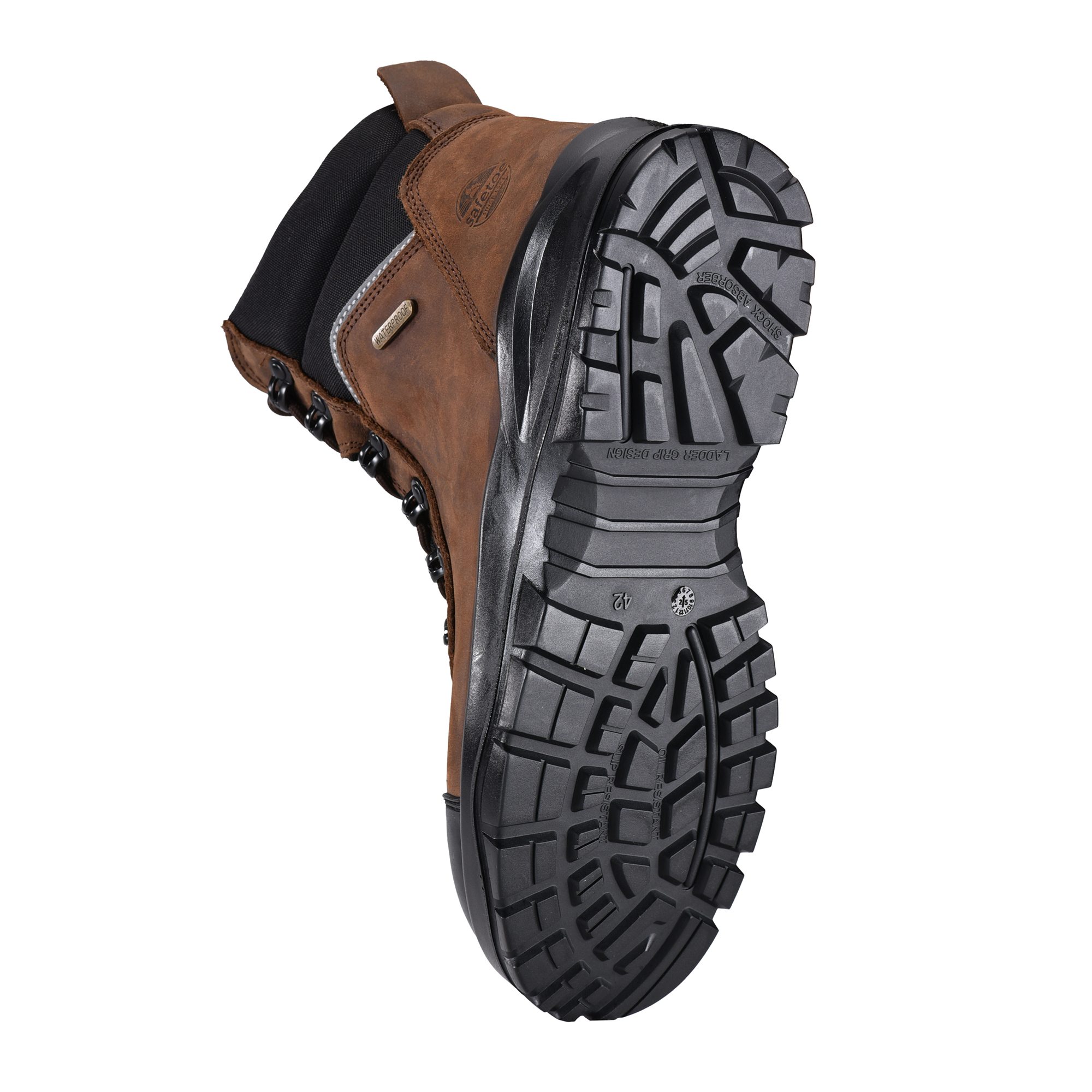

5. Outsole :

PU/Rubber Injection (300℃ HRO)

6. Toecap :

VortiGard™ Steel Toecap

7. Penetration :

VortiGard™ Steel Midsole Plate

8. Size : EU 37-47#, UK 3-13#, US 4-14#
9. Standard:

CE EN ISO 20345:2022+A1:2024 S7 SR FO CI HI HRO LG

ASTM E 2149-2020 Approved Anti-microbial Lining & Insoles (Odor Resistant)

10. Application :

Onshore Drilling Rig, Offshore Drilling Platform,  Oil Field Site, Pipeline Station, Oil Refinery etc

H3E5Z)88S25H8YDDJBW



Upper, Lining & Bonding Strength Test Result Result
Leather Tear Strength ≥ 120.0 Newtons
Leather Tensile Properties ≥ 15.0 N/mm²
Lining Tear Strength ≥ 15.0 N/mm
Bonding Strength ≥ 4.0 N/mm
√ Protection with Composite Toecap (200 Joules) Result
Impact Resistance: Impact Energy: 200 ± 4 Joules, Internal Height Clearence ≥ 14mm      Compression Resistance: Compression Force: (15 ± 0.1) KN, Internal Height Clearence ≥ 14mm PASS
√ Penetration Resistance (1100 N)
Result
Penetration Resistance Force ≥ 1100 N PASS
√ Protection With Slip Resistant (SR) Result

Test Requirement : Forward Heel Slip ≥0.31 ( Test methordL ISO 13287:2019)

                                        Backward Forepart Slip ≥0.36  ( Test methordL ISO 13287:2019)

PASS

Standards : EN ISO 20345:2022(5.3.5) ,  Test floor: Ceramic tile, Lubricant: Sodium lauryl sulphate


√ Protection With Anti-Static

Result

Test Requirement : Anti-static 100KΩ-1000MΩ, Test Voltage: 100±2 V DC, Test Period: 1 Minute

PASS

Standards :  EN ISO 20345:2022 (6.2.2.2)    Dry Humility (30±5) & Wet Humility (85±5)


√ Protection Resistant to Hot Contact (HRO) Result

Test Requirement : Outsole shall not melt & develop any cracks when bent around the mandral

PASS

Standards :  EN ISO 20345:2022  (8.9) Test Temperature: 300℃



√ Sole Bonding Strength Test

Bonding Strength Test Report

EN ISO 20345:2022, 5.3 (Between Upper & Sole)
• Average Test Result 5.8±5 (N/mm)


SAFETOE Standard Package Instruction (Average 42# for Reference)
Shoes Weight : 1.3-1.4 KGS /Pair  Carton Weight : 14-15 KGS /Carton
1 Pair / Color Box , Dimensions : 32×24×12CM 10 Pair / Carton , Dimensions : 62×49×33CM

通用鞋盒



User Instructions:

1) RECOMMENDED TO USE: Mechanics, Construction, Logistics, Workshop, Farming, Glasses Installation, Garden, Oil & Gas, Chemical Factory, etc.

2) LIMITATION TO USE: The selected footwear must be suitable for the right workplaces. The protection against risks or hazards which are not mentioned in this document is not warranted.

3) FITTING & SIZE: All footwear is marked with standard size on the tongue label. Some are with different size comparisons, such as EU size, UK size, US size, etc. Please wear footwear in a suitable size Footwear that is too loose or too tight may not provide the optimum level of protection.

4) STORAGE: Keep the footwear in its original packaging, under ordinary temperature, non-humidity conditions, and in clean, covered, and ventilated premises.

5) CLEANING: Clean footwear regularly with high-quality cleaning treatments recommended as suitable for the purpose. Don't use caustic or corrosive cleaning agents.

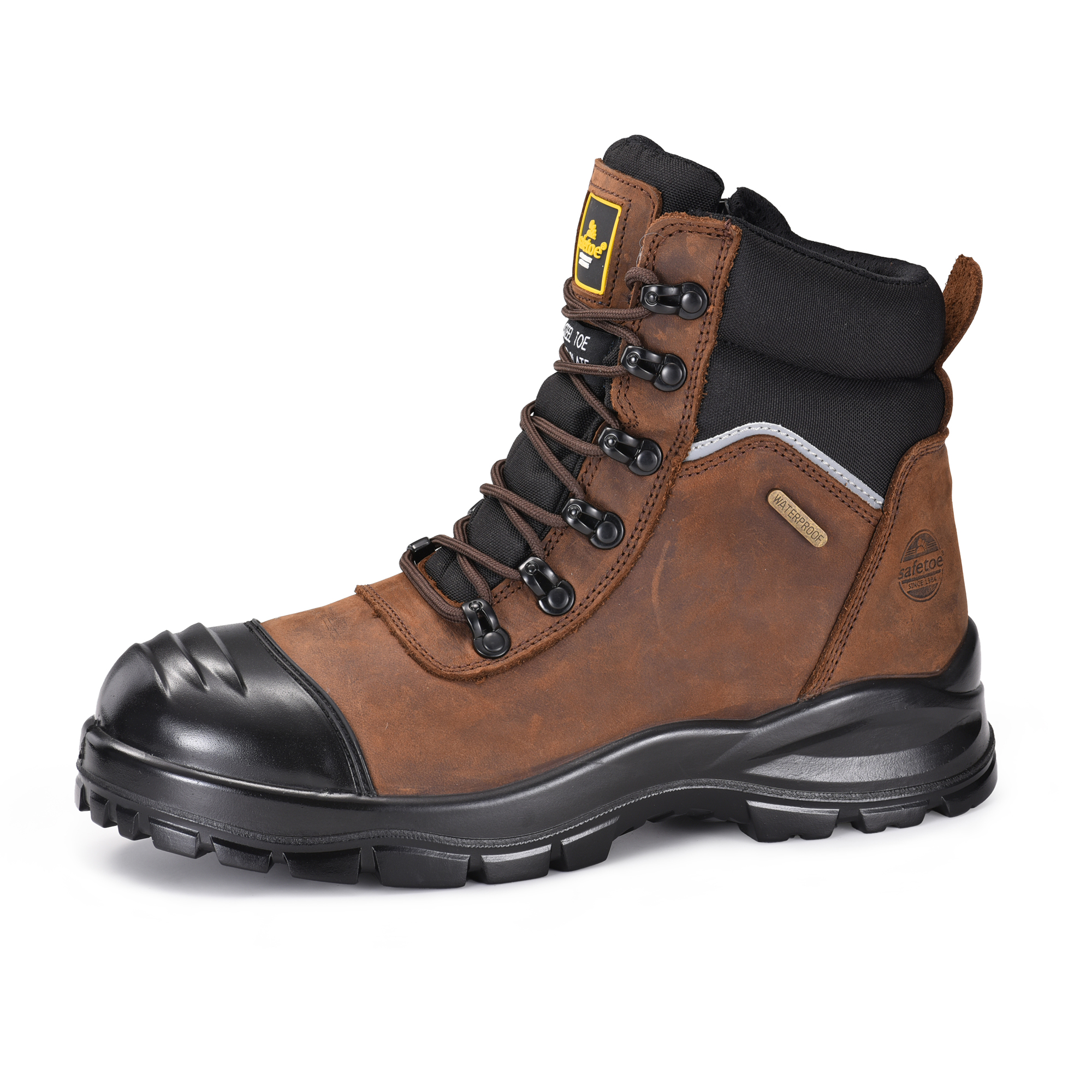

M-8577BR画板 1 拷贝画板 1画板 2 拷贝画板 2画板 3 拷贝画板 3画板 4
